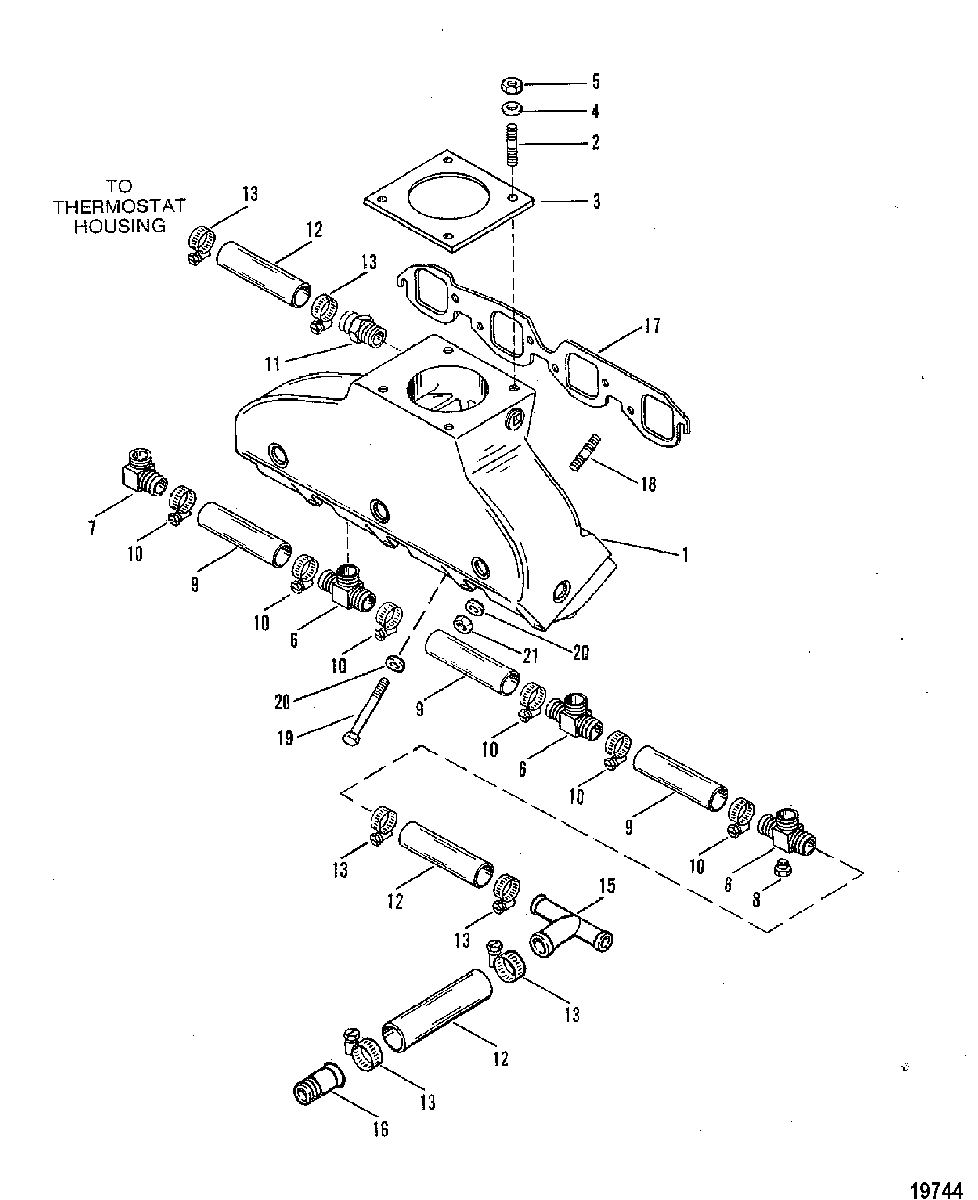

Exhaust Header(440/460) для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046

  • №
    Артикул
    Название
  • 1
    98327A2 HEADER ASSEMBLY, Exhaust
    HEADER ASSEMBLY, Exhaust
  • 2
    16-49545 STUD, (3/8 x 1.75), EXHAUST PIPE
    STUD, (3/8 x 1.75), EXHAUST PIPE
  • 3
    27-848147 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 4
    12-856774 WASHER, (.406 x .750 x .104), EXHAUST PIPE STUD
    WASHER, (.406 x .750 x .104), EXHAUST PIPE STUD
  • 5
    11-93987 NUT, EXHAUST PIPE STUD
    NUT, EXHAUST PIPE STUD
  • 6
    22-97526 TEE FITTING
    TEE FITTING
  • 7
    22-97527 FITTING (90 DEGREES)
    FITTING (90 DEGREES)
  • 8
    22-328022 PLUG, Pipe (.125-27), TEE FITTING
    PLUG, Pipe (.125-27), TEE FITTING
  • 9
    32-9809070 HOSE, Exhaust
    HOSE, Exhaust
  • 10
    54-815504412 CLAMP, EXHAUST HOSE
    CLAMP, EXHAUST HOSE
  • 11
    22-97314 FITTING (STRAIGHT)
    FITTING (STRAIGHT)
  • 12
    32-9809070 HOSE, Exhaust
    HOSE, Exhaust
  • 13
    54-815504412 CLAMP, EXHAUST HOSE
    CLAMP, EXHAUST HOSE
  • 15
    22-55133 TEE
    TEE
  • 16
    22-61169 CONNECTOR (STRAIGHT)
    CONNECTOR (STRAIGHT)
  • 17
    27-43583 GASKET, EXHAUST HEADER (INCLUDES 2 GASKETS)
    GASKET, EXHAUST HEADER (INCLUDES 2 GASKETS)
  • 18
    16-49545 STUD, (3/8 x 1.75), EXHAUST HEADER TO CYLINDER HEAD
    STUD, (3/8 x 1.75), EXHAUST HEADER TO CYLINDER HEAD
  • 19
    10-71931 SCREW, EXHAUST HEADER TO CYLINDER HEAD
    (5-1/2'')
    SCREW, EXHAUST HEADER TO CYLINDER HEAD
    (5-1/2'')
  • 19
    10-37612 SCREW, (.375-16 x 1.250), EXHAUST HEADER TO CYLINDER HEAD
    SCREW, (.375-16 x 1.250), EXHAUST HEADER TO CYLINDER HEAD
  • 20
    12-20553 WASHER, (.406 x .734 x .063), EXHAUST HEADER SCREW
    WASHER, (.406 x .734 x .063), EXHAUST HEADER SCREW
  • 21
    11-25269 NUT, (.375-24), EXHAUST HEADER SCREW
    NUT, (.375-24), EXHAUST HEADER SCREW
  • -
    27-99386A2 GASKET SET
    GASKET SET
