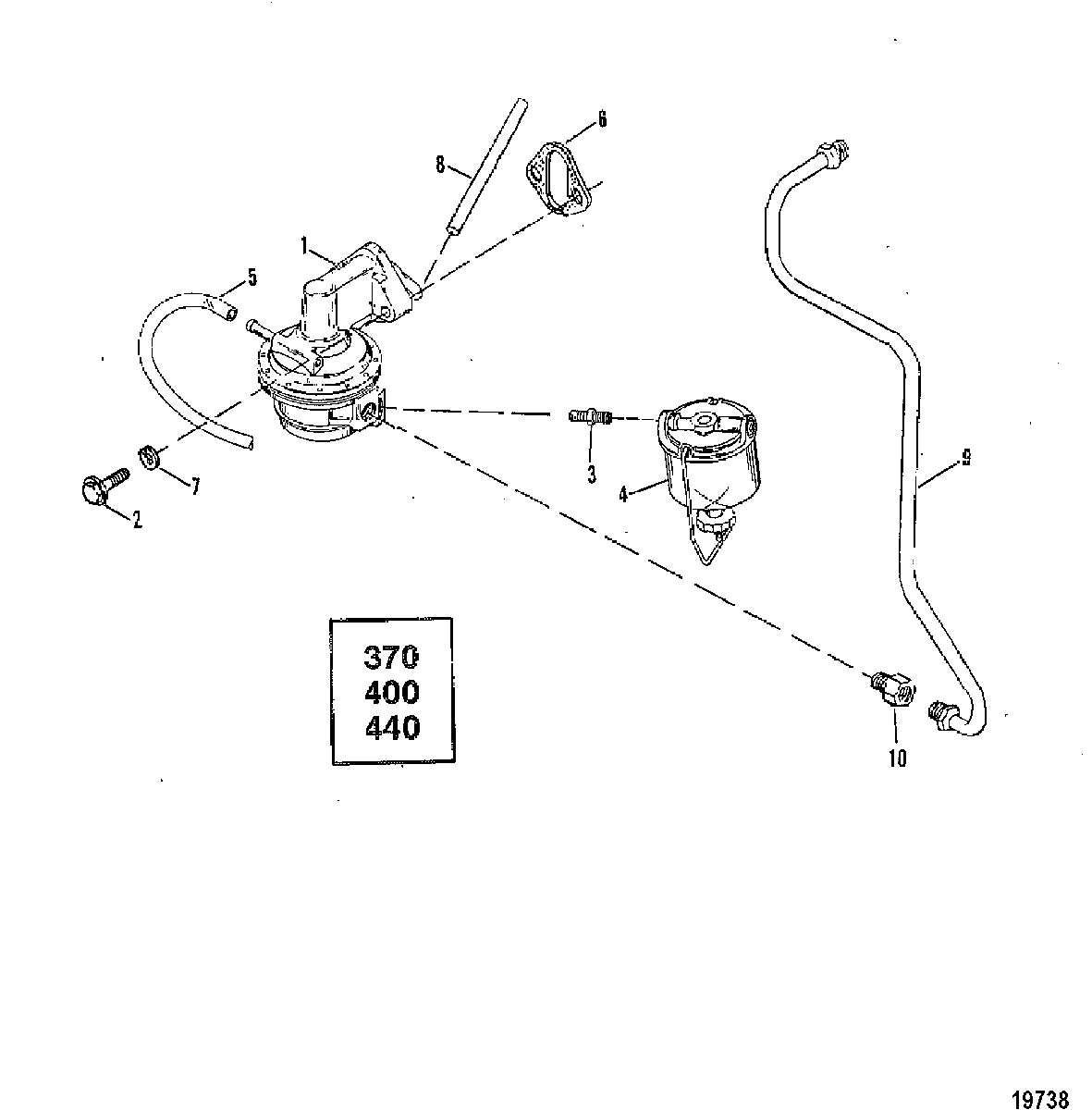

Fuel Pump and Fuel Lines(370/400/440) для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046

  • №
    Артикул
    Название
  • 1
    89639 PUMP, Fuel
    (Use with Sight Glass)
    PUMP, Fuel
    (Use with Sight Glass)
  • 1
    862048A1 PUMP ASSEMBLY, Fuel
    (Use with Sight Tube)
    PUMP ASSEMBLY, Fuel
    (Use with Sight Tube)
  • 2
    10-34353 SCREW, (.375-16 x 1.00), FUEL PUMP
    (Use with Sight Glass)
    SCREW, (.375-16 x 1.00), FUEL PUMP
    (Use with Sight Glass)
  • 2
    10-34354 SCREW, (.375-16 x 1.50), FUEL PUMP
    (Use with Sight Tube)
    SCREW, (.375-16 x 1.50), FUEL PUMP
    (Use with Sight Tube)
  • 3
    22-32876 NIPPLE, SIGHT GLASS
    (Use with Sight Glass)
    NIPPLE, SIGHT GLASS
    (Use with Sight Glass)
  • 4
    22-39072A1 SIGHT GLASS ASSEMBLY
    (Use with Sight Glass)
    SIGHT GLASS ASSEMBLY
    (Use with Sight Glass)
  • 5
    32-9337070 SIGHT TUBE
    (Use with Sight Tube)
    SIGHT TUBE
    (Use with Sight Tube)
  • 6
    27-34213 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    13-35048 LOCKWASHER, (.375), FUEL PUMP SCREW
    LOCKWASHER, (.375), FUEL PUMP SCREW
  • 8
    35377 ROD, FUEL PUMP
    ROD, FUEL PUMP
  • 9
    32-72936 LINE, Fuel, FUEL PUMP TO CARBURETOR
    (370/400)
    LINE, Fuel, FUEL PUMP TO CARBURETOR
    (370/400)
  • 9
    32-93557 LINE, Fuel, FUEL PUMP TO CARBURETOR
    (440)
    LINE, Fuel, FUEL PUMP TO CARBURETOR
    (440)
  • 10
    22-33821 CONNECTOR, FUEL LINE
    (Use with Sight Glass)
    CONNECTOR, FUEL LINE
    (Use with Sight Glass)
  • 10
    22-93385 FITTING, (90 Degree), FUEL LINE
    (Use with Sight Tube)
    FITTING, (90 Degree), FUEL LINE
    (Use with Sight Tube)
  • -
    27-47410A1 GASKET SET
    (370/400)
    GASKET SET
    (370/400)
  • -
    27-99386A2 GASKET SET
    (440/460)
    GASKET SET
    (440/460)
