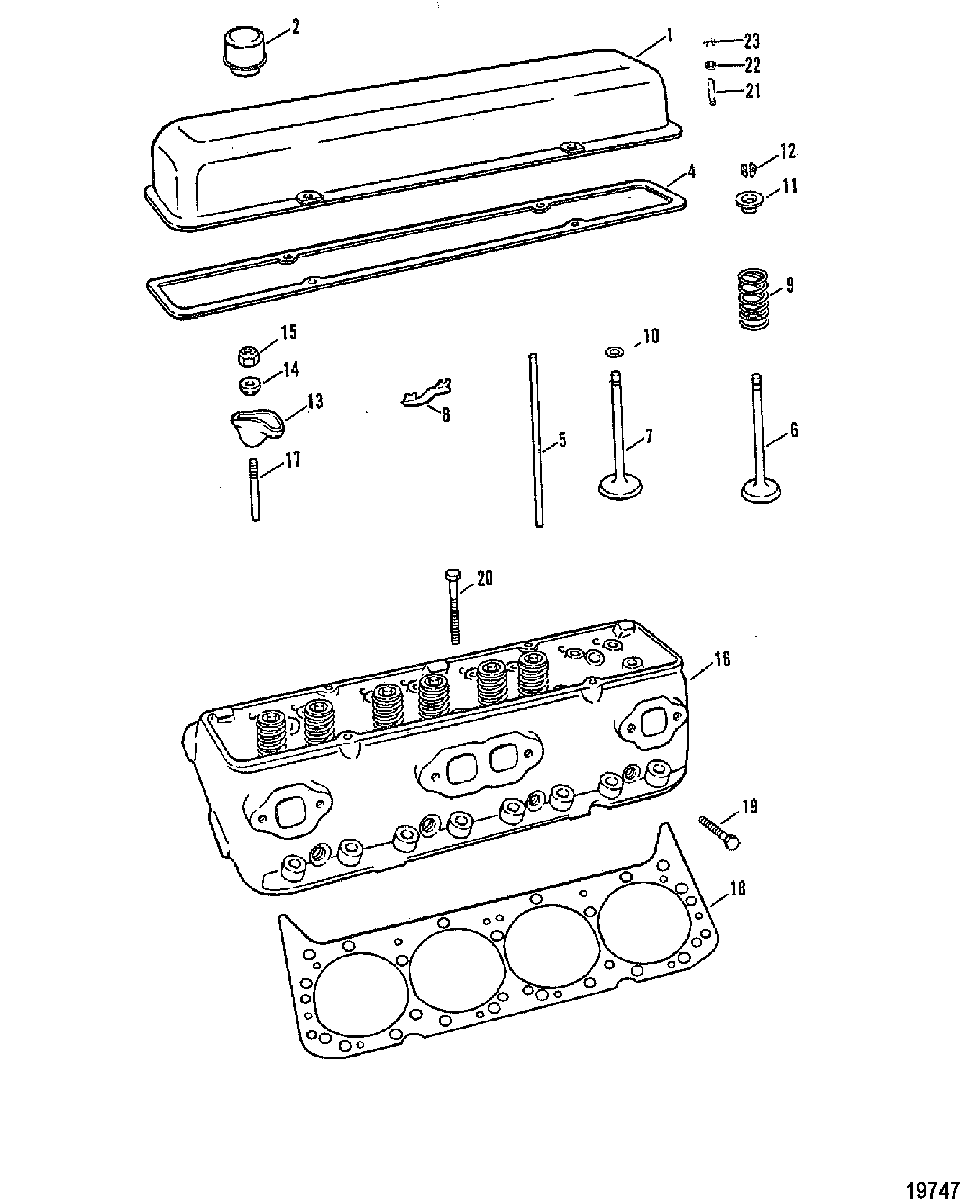

Cylinder Head(370/400/440-S/N-5670298 & Below) для Mercruiser - 460 TRS GM 482 V-8 1983-1986 4179554 THRU 6181046

  • №
    Артикул
    Название
  • 1
    17671 ROCKER COVER
    ROCKER COVER
  • 2
    36-807152 CAP, Filler, OIL FILTER
    CAP, Filler, OIL FILTER
  • 3
    37-89500A1 DECAL, ROCKER COVER
    DECAL, ROCKER COVER
  • 4
    27-49121 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 5
    49115 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 5
    49116 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 6
    49774 VALVE, EXHAUST
    (STANDARD)
    VALVE, EXHAUST
    (STANDARD)
  • 6
    N.S.S. Not Sold Separate, VALVE-EXHAUST (GM #3947873)
    (.0015)
    Not Sold Separate, VALVE-EXHAUST (GM #3947873)
    (.0015)
  • 6
    N.S.S. Not Sold Separate, VALVE-EXHAUST (GM #3947874)
    (.0030)
    Not Sold Separate, VALVE-EXHAUST (GM #3947874)
    (.0030)
  • 7
    986781 VALVE, INLET
    (STANDARD)
    VALVE, INLET
    (STANDARD)
  • 7
    N.S.S. Not Sold Separate, VALVE-INLET (GM #3963673)
    (.0015)
    Not Sold Separate, VALVE-INLET (GM #3963673)
    (.0015)
  • 7
    89817 VALVE, INLET
    (.0030)
    VALVE, INLET
    (.0030)
  • 8
    49132 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 9
    24-88154 SPRING, VALVE
    SPRING, VALVE
  • 10
    15-845669 SHIM, Valve Spring (.015)
    SHIM, Valve Spring (.015)
  • 11
    88155 CAP, VALVE SPRING (INCLUDES SEAL)
    CAP, VALVE SPRING (INCLUDES SEAL)
  • 12
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 13
    19241 ARM, VALVE ROCKER
    ARM, VALVE ROCKER
  • 14
    58041 BALL, VALVE ROCKER ARM
    BALL, VALVE ROCKER ARM
  • 15
    11-49119 NUT, VALVE ROCKER ARM
    NUT, VALVE ROCKER ARM
  • 16
    938-5924 CLYLINDER HEAD ASSEMBLY
    CLYLINDER HEAD ASSEMBLY
  • 17
    16-49133 STUD, VALVE ROCKER ARM
    STUD, VALVE ROCKER ARM
  • 18
    27-8M0049045 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 19
    8M0102366 BOLT, (2.00 Inch), CYLINDER HEAD
    BOLT, (2.00 Inch), CYLINDER HEAD
  • 20
    8M0102366 BOLT, (4.125 Inch), CYLINDER HEAD
    BOLT, (4.125 Inch), CYLINDER HEAD
  • 21
    16-36162 STUD, ROCKER COVER
    STUD, ROCKER COVER
  • 22
    49174 REINFORCEMENT, ROCKER COVER
    REINFORCEMENT, ROCKER COVER
  • 23
    11-29598 NUT, (.250-28) Stainless Steel, ROCKER COVER STUD
    NUT, (.250-28) Stainless Steel, ROCKER COVER STUD
  • -
    27-47410A1 GASKET SET
    (370/400)
    GASKET SET
    (370/400)
  • -
    27-99386A2 GASKET SET
    (440)
    GASKET SET
    (440)
