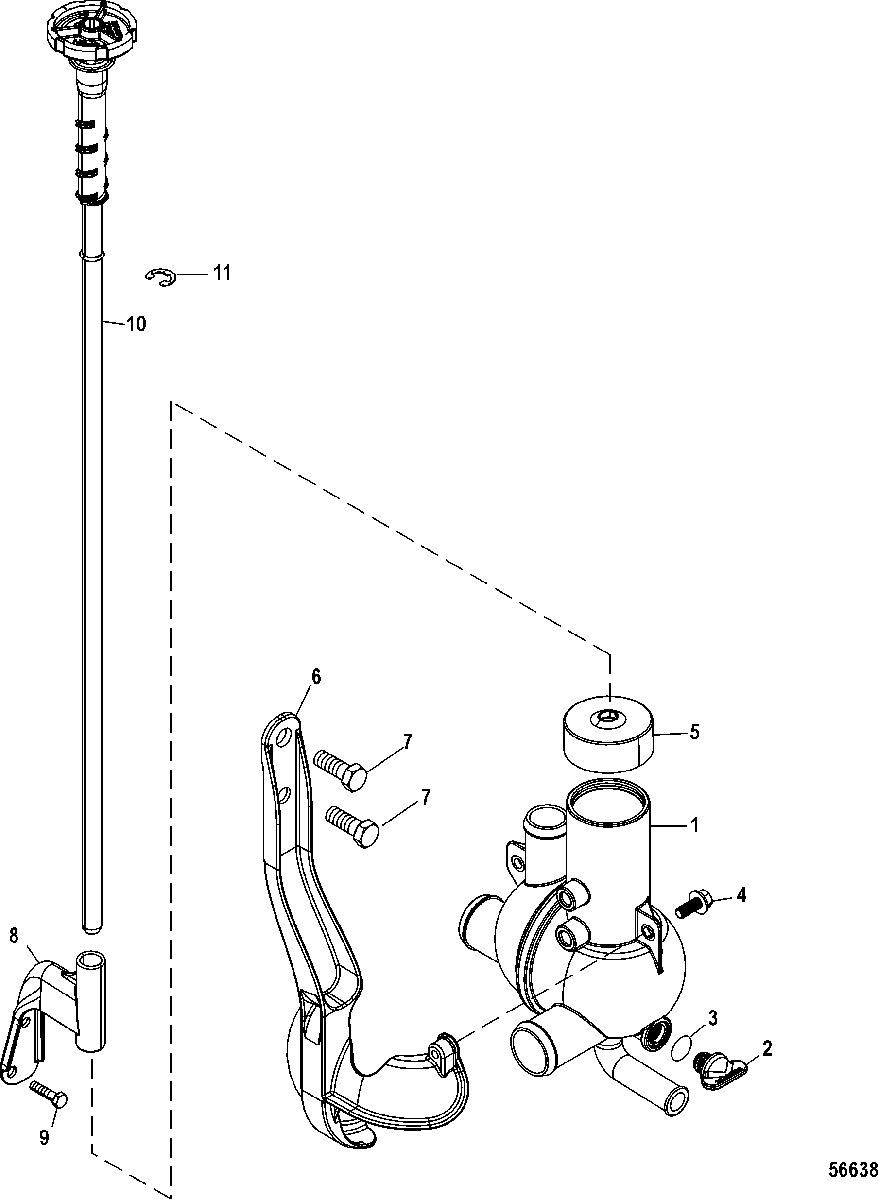

Water Distribution Housing, Rod Actuated для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • 1
    8M0101224 HOUSING, Water Distribution
    HOUSING, Water Distribution
  • 2
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 3
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
  • 4
    10-8175051 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 5
    863839 COVER
    COVER
  • 6
    8M0095444 BRACKET, Water Distribution Housing
    BRACKET, Water Distribution Housing
  • 7
    10-8M0083541 SCREW, (M10 x 16), To Block
    SCREW, (M10 x 16), To Block
  • 8
    8M0079961 BRACKET, Water Drain Actuator
    BRACKET, Water Drain Actuator
  • 9
    10-8M2600010 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 10
    8M0097762 DRAIN ROD ASSEMBLY
    DRAIN ROD ASSEMBLY
  • 11
    53-863741 E-RING
    E-RING
