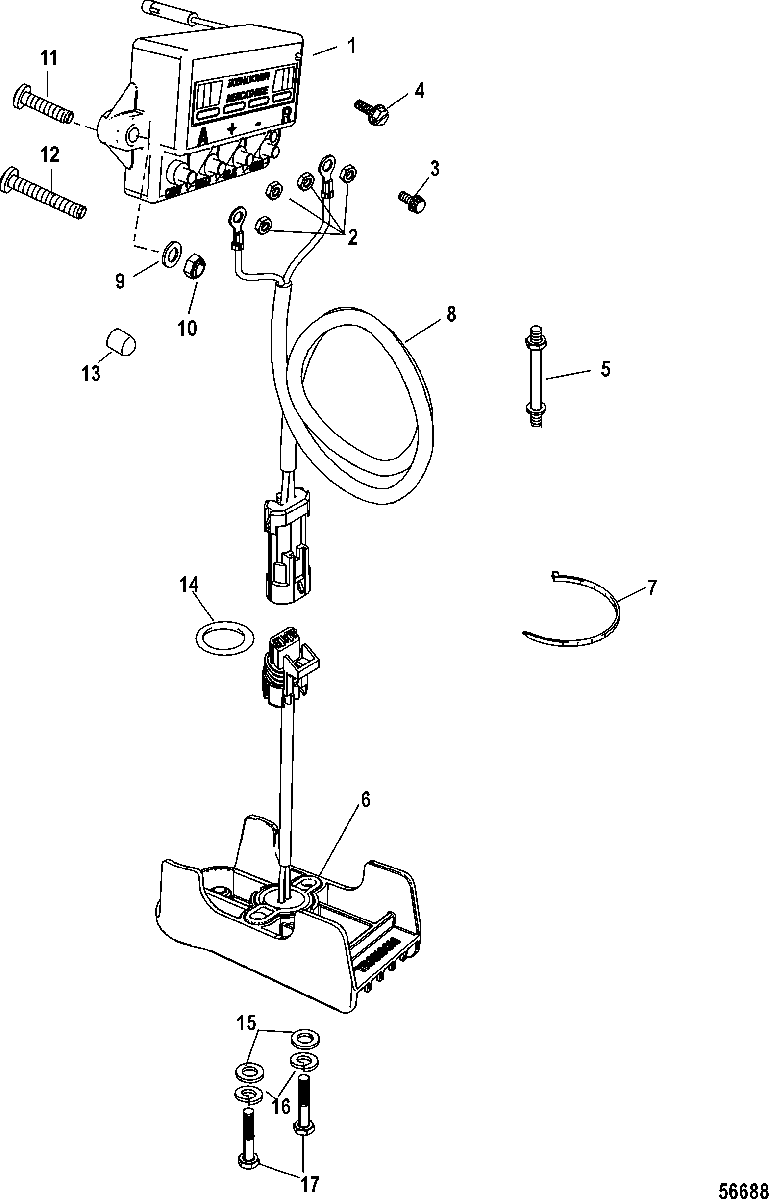

Mercathode Kit для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • -
    8M0089497 MERCATHODE KIT
    MERCATHODE KIT
  • 1
    8M0100517 MERCATHODE CONTROLLER, MerCathode
    MERCATHODE CONTROLLER, MerCathode
  • 2
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 3
    10-82104520 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 4
    10-805565 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • 5
    16-805459 STUD
    STUD
  • 6
    8M0085692 MERCATHODE SYSTEM
    MERCATHODE SYSTEM
  • 7
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 8
    84-865181T01 HARNESS ASSEMBLY, Mercathode
    HARNESS ASSEMBLY, Mercathode
  • 9
    12-21273 WASHER
    WASHER
  • 10
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 11
    10-96113 SCREW, (#10-32 x .880) Stainless Steel
    SCREW, (#10-32 x .880) Stainless Steel
  • 12
    10-72202 SCREW, (#10-32 x 1.25)
    SCREW, (#10-32 x 1.25)
  • 13
    44574T CAP
    CAP
  • 14
    25-88388 O-RING
    O-RING
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 17
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
