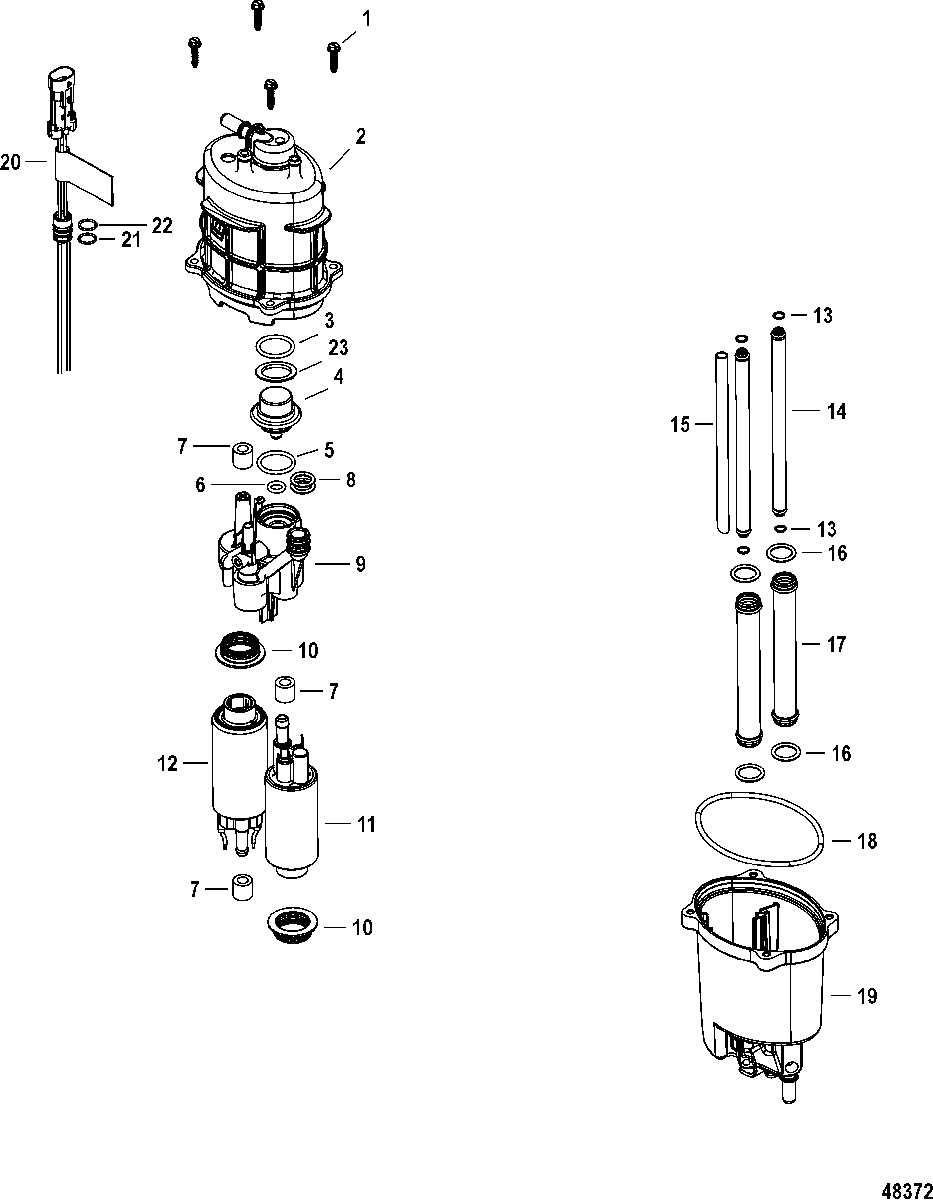

Fuel Supply Module для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • -
    8M0132733 FUEL SUPPLY MODULE-DUAL PUMP
    FUEL SUPPLY MODULE-DUAL PUMP
  • 1
    10-8M0053756 SCREW, Plastite W/ HX WSR HD
    SCREW, Plastite W/ HX WSR HD
  • 2
    8M0053726 FSM TOP HOUSING
    FSM TOP HOUSING
  • 3
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 4
    8M0053749 REGULATOR ASSEMBLY
    REGULATOR ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE
    O-ring
    NOT SOLD SEPARATE
    O-ring
  • 6
    NSS NOT SOLD SEPARATE
    O-ring
    NOT SOLD SEPARATE
    O-ring
  • 7
    NSS NOT SOLD SEPARATE
    Seal
    NOT SOLD SEPARATE
    Seal
  • 8
    NSS NOT SOLD SEPARATE
    O-ring
    NOT SOLD SEPARATE
    O-ring
  • 9
    8M0053727 FSM CAP
    FSM CAP
  • 10
    NSS NOT SOLD SEPARATE
    Seal
    NOT SOLD SEPARATE
    Seal
  • 11
    8M0062771 PUMP ASSY, Low Pressure
    PUMP ASSY, Low Pressure
  • 12
    8M0062770 PUMP ASSY, High Pressure
    PUMP ASSY, High Pressure
  • 13
    NSS NOT SOLD SEPARATE
    O-ring
    NOT SOLD SEPARATE
    O-ring
  • 14
    32-8M0119250 TUBE
    Fuel
    TUBE
    Fuel
  • 15
    32-8M0053755 TUBE
    Suction
    TUBE
    Suction
  • 16
    NSS NOT SOLD SEPARATE
    O-ring
    NOT SOLD SEPARATE
    O-ring
  • 17
    8M0120073 TUBE
    Water
    TUBE
    Water
  • 18
    NSS NOT SOLD SEPARATE
    Seal
    NOT SOLD SEPARATE
    Seal
  • 19
    8M0053725 FSM BOTTOM HOUSING
    FSM BOTTOM HOUSING
  • 20
    84-8M6004776 ELECTRICAL HARNESS ASSEMBLY
    ELECTRICAL HARNESS ASSEMBLY
  • 21
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 22
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 23
    NSS NOT SOLD SEPARATE
    Spacer
    NOT SOLD SEPARATE
    Spacer
  • -
    8M0057679 FSM SEAL KIT
    FSM SEAL KIT
