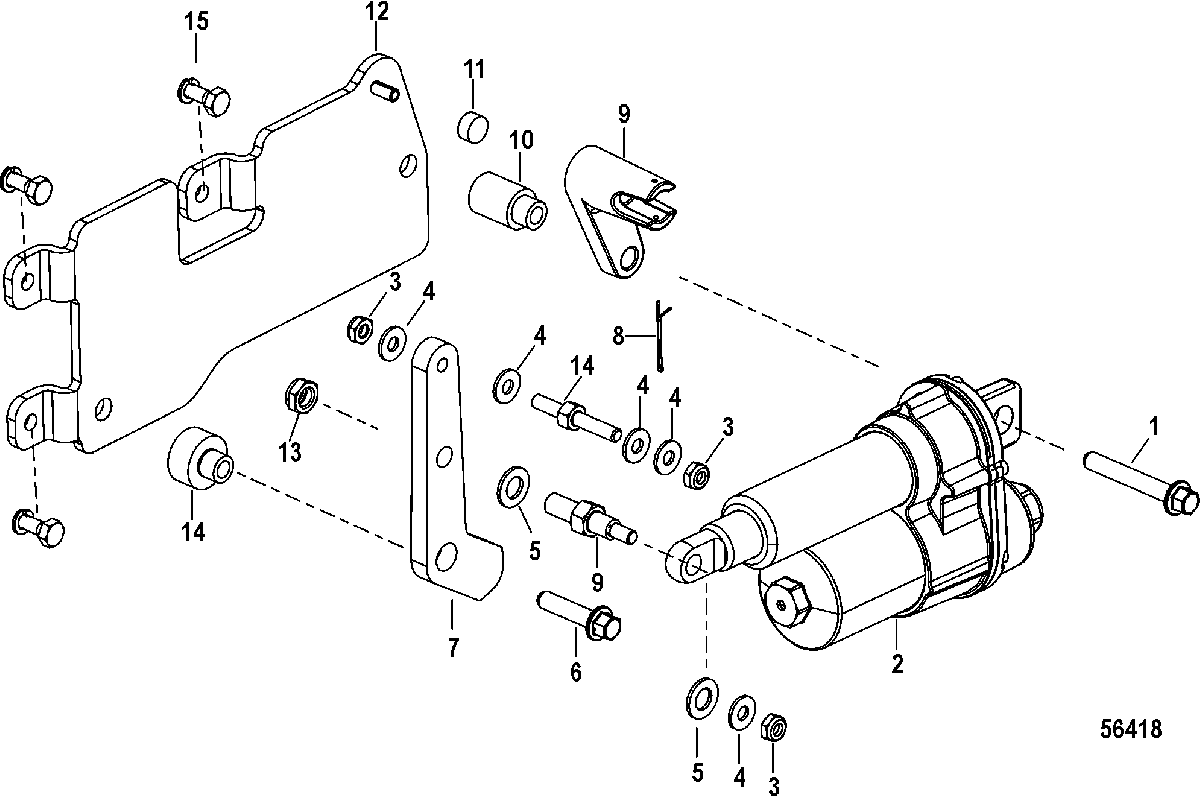

Shift Bracket, Digital Throttle and Shift для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • 1
    10-88552655 SCREW, (M8 x 55)
    SCREW, (M8 x 55)
  • 2
    879194T46 SHIFT ACTUATOR
    SHIFT ACTUATOR
  • 3
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 4
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 5
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 6
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 7
    8M0079104 SHIFT ARM
    SHIFT ARM
  • 8
    18-36002 COTTER PIN
    COTTER PIN
  • 9
    8M2009720 RETAINER
    RETAINER
  • 10
    23-863133 SPACER
    SPACER
  • 11
    23-98828 SPACER
    SPACER
  • 12
    8M0095949 BRACKET
    BRACKET
  • 13
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 14
    23-863132 SPACER
    SPACER
  • 15
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
