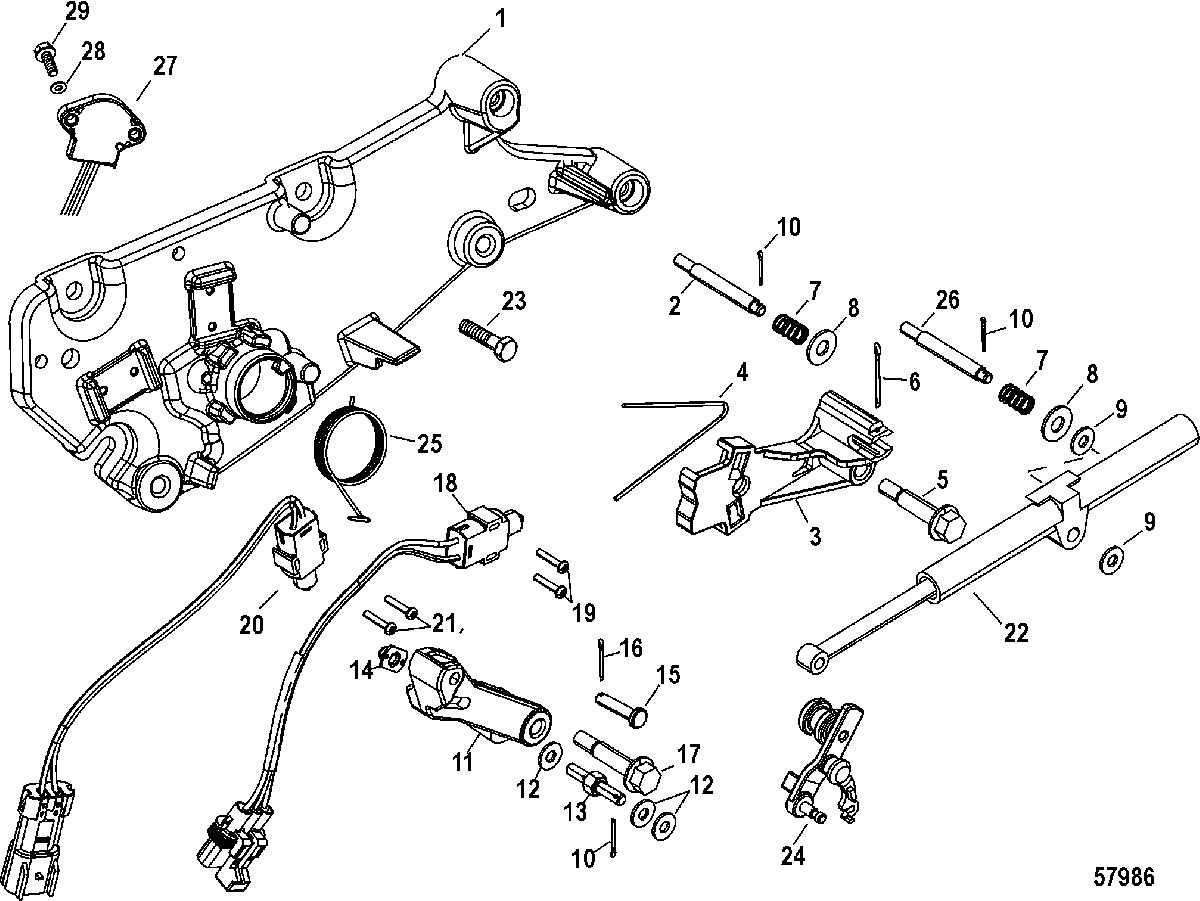

Shift Bracket, Alpha для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • 1
    8M0097162 BRACKET KIT, Shift
    BRACKET KIT, Shift
  • 2
    865149A02 STUD, With Cotter Pin
    STUD, With Cotter Pin
  • 3
    865433A02 LEVER ASSEMBLY, Actuator, With Cotter Pin
    LEVER ASSEMBLY, Actuator, With Cotter Pin
  • 4
    24-864907T SPRING
    SPRING
  • 5
    10-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
    SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    18-210711 COTTER PIN
    COTTER PIN
  • 11
    8M0078904 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 13
    16-865393A02 STUD KIT, (.250-28 x 1.90), With Cotter Pin
    STUD KIT, (.250-28 x 1.90), With Cotter Pin
  • 14
    11-63341 TEE NUT
    TEE NUT
  • 15
    17-814001 PIN, Clevis
    PIN, Clevis
  • 16
    18-210711 COTTER PIN
    COTTER PIN
  • 17
    10-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
    SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
  • 18
    87-808009T10 SWITCH ASSEMBLY, Shift Interupt
    SWITCH ASSEMBLY, Shift Interupt
  • 19
    10-865147T01 SCREW, (#6-32 x .750) Stainless Steel
    SCREW, (#6-32 x .750) Stainless Steel
  • 20
    87-8M0095577 SWITCH ASSEMBLY, Neutral
    SWITCH ASSEMBLY, Neutral
  • 21
    10-865147T01 SCREW, (#6-32 x .750) Stainless Steel
    SCREW, (#6-32 x .750) Stainless Steel
  • 22
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
  • 23
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 24
    8M0101621 THROTTLE ARM ASSEMBLY
    THROTTLE ARM ASSEMBLY
  • 25
    24-8M0072630 SPRING
    SPRING
  • 26
    16-865154A02 STUD KIT, (.250-20/.250-28 x 2.120) (Included in Bracket Kit)
    STUD KIT, (.250-20/.250-28 x 2.120) (Included in Bracket Kit)
  • 27
    84-8M0095576 HARNESS ASSEMBLY, Demand Sensor
    HARNESS ASSEMBLY, Demand Sensor
  • 28
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 29
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
