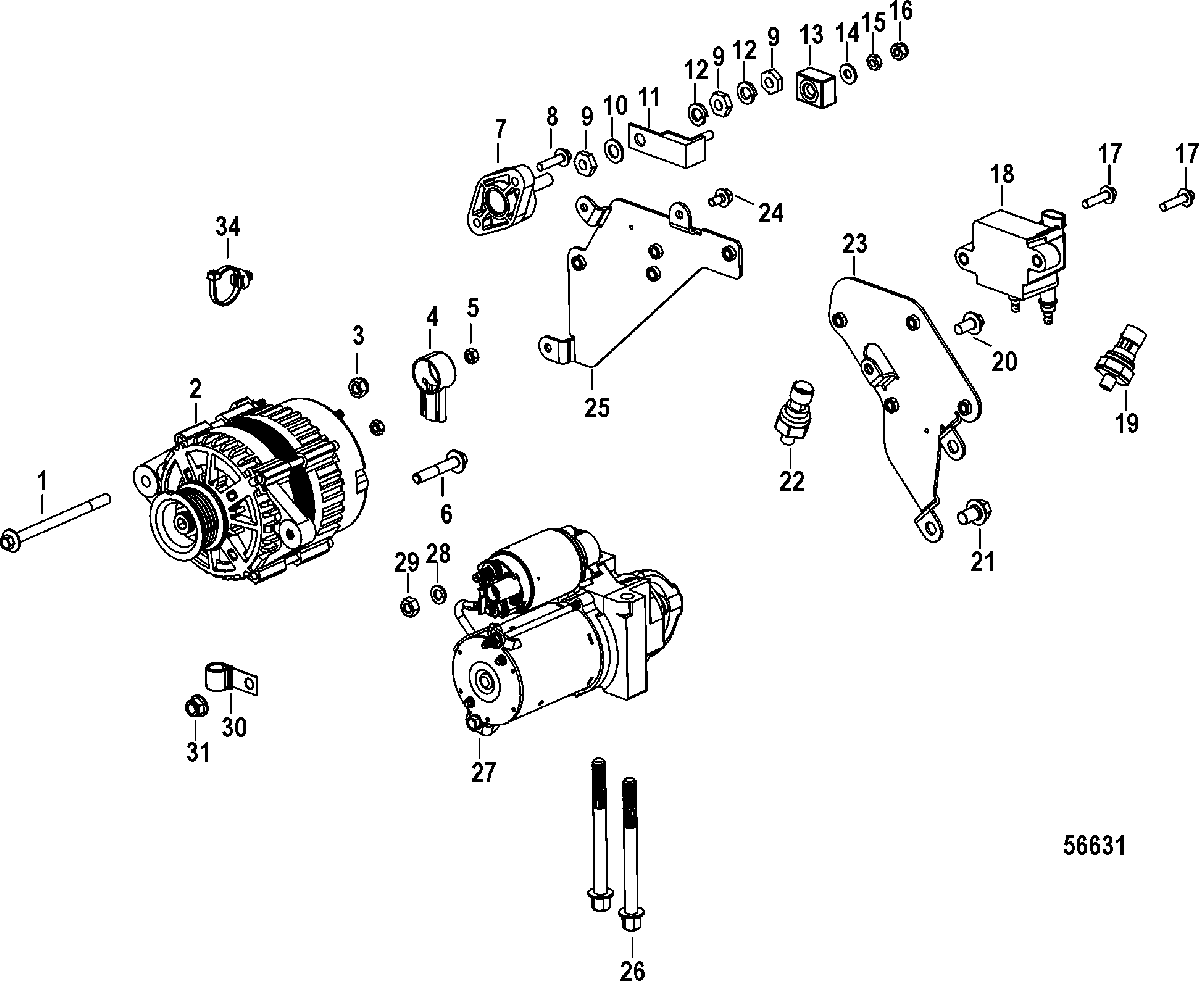

Electrical Components, Starter, Alternator, and Coil Bracket для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up
-
№АртикулНазвание
-
110-40095110 SCREW, (M8 x 110)SCREW, (M8 x 110)
-
28M0095472 ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
311-401368 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
485-8M0084147 INSULATORINSULATOR
-
511-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
610-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
78M0077643 HOT STUD ASSEMBLYHOT STUD ASSEMBLY
-
810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
911-8M0089455 NUTNUT
-
1012-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1188-8M6002021 FUSE HOLDERFUSE HOLDER
-
1213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1388-8M6001960 FUSE, 90 AmpFUSE, 90 Amp
-
1412-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
1511-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1611-8267118 NUT, (.250-20)NUT, (.250-20)
-
1710-82130025 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
18300-8M0044991 COIL, Ignition Dual OutputCOIL, Ignition Dual Output
-
198M6000623 SENSOR, Water PressureSENSOR, Water Pressure
-
2010-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
2110-8M0083541 SCREW, (M10 x 16)SCREW, (M10 x 16)
-
228M6000634 PRESSURE SENSOR, Oil PressurePRESSURE SENSOR, Oil Pressure
-
238M0095474 BRACKET, CoilBRACKET, Coil
-
2410-8M0140915 SCREW, (M6 x 1-12)SCREW, (M6 x 1-12)
-
258M0095473 BRACKET, CoilBRACKET, Coil
-
2610-861788 SCREW, (M10 x 1.5)SCREW, (M10 x 1.5)
-
2750-8M0095471 STARTER ASSEMBLYSTARTER ASSEMBLY
-
2813-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2911-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
3054-47483 J CLIPJ CLIP
-
3111-826365 NUT, (M8)NUT, (M8)
-
NS84-8M0095579 HARNESS ASSEMBLY, TransomHARNESS ASSEMBLY, Transom
-
NS84-8M0095475 CABLE KIT, IgnitionCABLE KIT, Ignition
-
NS33-8M0095454 SPARK PLUGSPARK PLUG
-
NS84-8M0095979 HARNESS, PowerHARNESS, Power
-
NS84-8M0095980 HARNESS, GroundHARNESS, Ground
