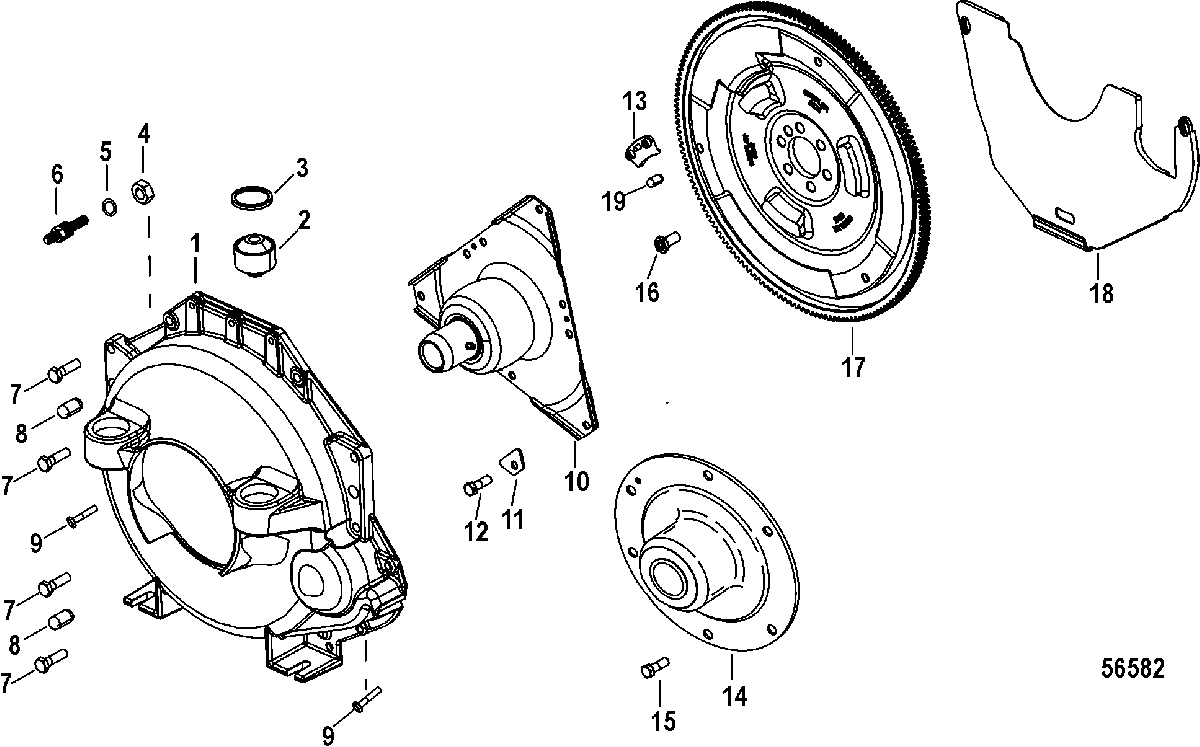

Flywheel and Coupler для Mercruiser - 4.5L MPI 250 Alpha/Bravo EC 2A441953 & Up

  • №
    Артикул
    Название
  • 1
    8M0095439 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    8M0095386 MOUNT, Rubber
    MOUNT, Rubber
  • 3
    8M0087147 SPACER
    SPACER
  • 4
    11-40125100 NUT, (M10)
    NUT, (M10)
  • 5
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 6
    16-861577 STUD, Double Ended Metric (M10)
    STUD, Double Ended Metric (M10)
  • 7
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 8
    17-8M0092110 PIN, Dowel
    PIN, Dowel
  • 9
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 10
    18643A5 COUPLING ASSEMBLY
    Alpha
    COUPLING ASSEMBLY
    Alpha
  • NS
    22-74036 FITTING, Grease
    Alpha
    FITTING, Grease
    Alpha
  • 11
    12-13510 WASHER
    Alpha
    WASHER
    Alpha
  • 12
    10-14883 SCREW, (.375-16 x 1.12)
    Alpha
    SCREW, (.375-16 x 1.12)
    Alpha
  • 13
    18644 BUMPER, Rubber
    Alpha
    BUMPER, Rubber
    Alpha
  • 14
    8M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum Hub
    Bravo
    COUPLER ASSEMBLY, Engine - Short Aluminum Hub
    Bravo
  • 15
    10-863480 SCREW, (.375-16 x 1.125)
    Bravo
    SCREW, (.375-16 x 1.125)
    Bravo
  • 16
    10-8M0130051 SCREW, (.4375 x 20)
    SCREW, (.4375 x 20)
  • 17
    200-8M0133585 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 18
    807260A2 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • 19
    NSS NOT SOLD SEPARATE, PIN
    NOT SOLD SEPARATE, PIN
