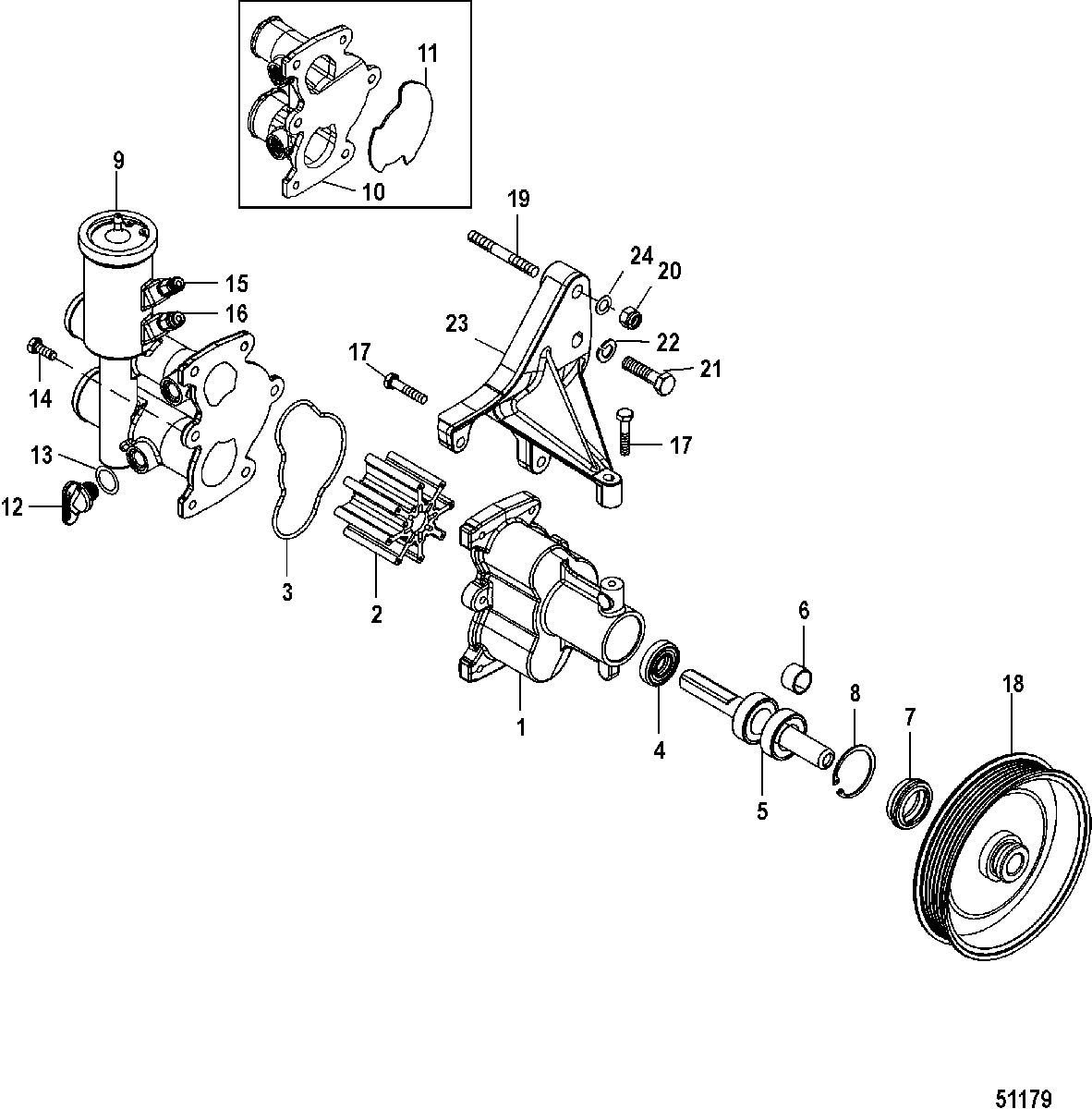

Sea Water Pump Assembly для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up
-
№АртикулНазвание
-
-46-8M0137216 PUMP KIT, Sea Water
(Without Air Fittings)PUMP KIT, Sea Water
(Without Air Fittings) -
-46-8M0137217 PUMP KIT, Sea Water
(With Air Fittings)PUMP KIT, Sea Water
(With Air Fittings) -
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
38M2021987 O-RING, Formed (Also included with Reference 8 and 9)O-RING, Formed (Also included with Reference 8 and 9)
-
-8M0050018 DRIVESHAFT ASSEMBLY KITDRIVESHAFT ASSEMBLY KIT
-
426-8M2001645 SEAL, OilSEAL, Oil
-
5NSS NOT SOLD SEPARATE, DRIVESHAFT ASSEMBLYNOT SOLD SEPARATE, DRIVESHAFT ASSEMBLY
-
6NSS NOT SOLD SEPARATE, SPACERNOT SOLD SEPARATE, SPACER
-
726-862040 SEAL, LipSEAL, Lip
-
8NSS NOT SOLD SEPARATE, SNAP RINGNOT SOLD SEPARATE, SNAP RING
-
9863674A05 COVER KIT, Impeller Housing
(With Air Fittings)COVER KIT, Impeller Housing
(With Air Fittings) -
10862776A01 COVER KIT, Impeller Housing
(Without Air Fittings)COVER KIT, Impeller Housing
(Without Air Fittings) -
118M2014176 PLATE, WearPLATE, Wear
-
1222-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
(Also included with 863674A05)PLUG ASSEMBLY, (.500-13) Blue
(Also included with 863674A05) -
1325-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
1410-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1522-8M0082319 FITTING, Gray - Straight, Male Air
(.1562)(Component of 46-862914T11)FITTING, Gray - Straight, Male Air
(.1562)(Component of 46-862914T11) -
1622-8M0082320 FITTING, Orange - Straight, Male Air
(.1875)(Component of 46-862914T11)FITTING, Orange - Straight, Male Air
(.1875)(Component of 46-862914T11) -
1710-865152 SCREW, (M6)SCREW, (M6)
-
18862351T PULLEYPULLEY
-
1916-863853 STUDSTUD
-
2011-82671112 NUT, (.375-16)NUT, (.375-16)
-
2110-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
2213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
23865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
2412-38622 WASHER, (.391 x 1.00 x .125)WASHER, (.391 x 1.00 x .125)
