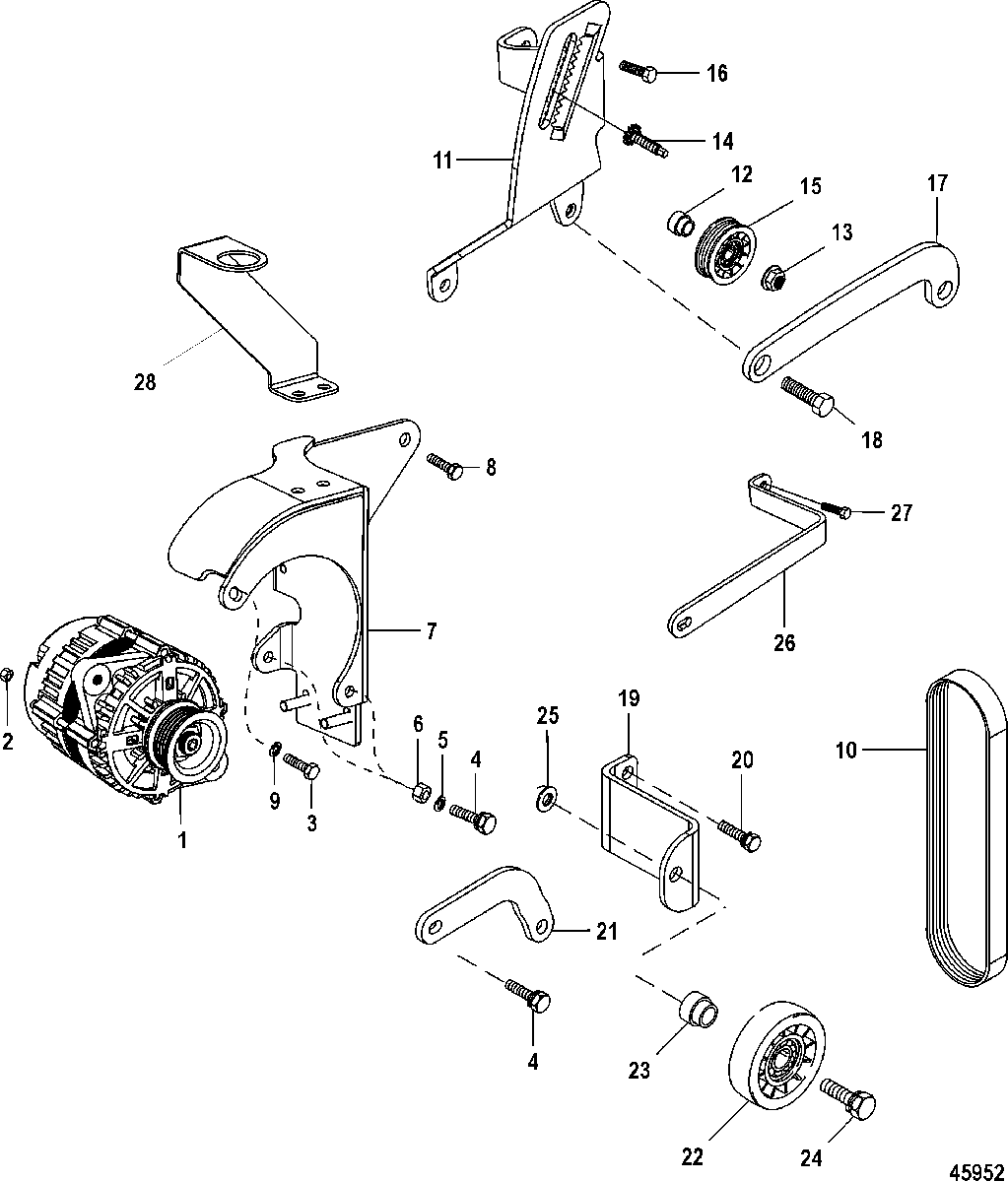

Alternator and Brackets для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up

  • №
    Артикул
    Название
  • 1
    863077T ALTERNATOR ASSEMBLY, Black, 65 Amp - With 50mm Pulley
    (Non Serviceable)
    ALTERNATOR ASSEMBLY, Black, 65 Amp - With 50mm Pulley
    (Non Serviceable)
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 4
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 5
    12-57792 WASHER
    WASHER
  • 6
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 7
    8M0053836 BRACKET, Alternator
    BRACKET, Alternator
  • 8
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    57-8M2018590 BELT, Serpentine
    (Alpha-Standard Cooling)
    BELT, Serpentine
    (Alpha-Standard Cooling)
  • 10
    57-8M2018984 BELT, Serpentine
    (Bravo-Standard Cooling)
    BELT, Serpentine
    (Bravo-Standard Cooling)
  • 10
    57-879288Q20 BELT, Serpentine
    (Closed Cooling)
    BELT, Serpentine
    (Closed Cooling)
  • 11
    8M0053838 BRACKET, Idler Adjusting
    BRACKET, Idler Adjusting
  • 12
    865193 BUSHING
    BUSHING
  • 13
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 14
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 15
    864625T PULLEY (4.25 Inch Diameter)
    PULLEY (4.25 Inch Diameter)
  • 16
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    8M2021996 BRACKET, Idler to Power Steering Pump
    BRACKET, Idler to Power Steering Pump
  • 18
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 19
    864456T BRACKET, Alternator Brace
    (Bravo)(Alpha - Closed Cooling)
    BRACKET, Alternator Brace
    (Bravo)(Alpha - Closed Cooling)
  • 20
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 21
    8M2019957 BRACKET, Alternator to Idler
    (Bravo)(Alpha - Closed Cooling)
    BRACKET, Alternator to Idler
    (Bravo)(Alpha - Closed Cooling)
  • 22
    8M6500024 PULLEY
    (Bravo)(Alpha - Closed Cooling)
    PULLEY
    (Bravo)(Alpha - Closed Cooling)
  • 23
    865193 BUSHING
    (Bravo)(Alpha - Closed Cooling)
    BUSHING
    (Bravo)(Alpha - Closed Cooling)
  • 24
    10-56393 SCREW, (.437-20 x 1.75)
    (Bravo)(Alpha - Closed Cooling)
    SCREW, (.437-20 x 1.75)
    (Bravo)(Alpha - Closed Cooling)
  • 25
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    (Bravo)(Alpha - Closed Cooling)
    NUT, (.437-20) Brass/Nickel Plated
    (Bravo)(Alpha - Closed Cooling)
  • 26
    8M2019972 BRACKET, Alternator
    (Alpha - Standard Cooling)
    BRACKET, Alternator
    (Alpha - Standard Cooling)
  • 27
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 28
    8M2021334 BRACKET, Flush Valve
    BRACKET, Flush Valve
