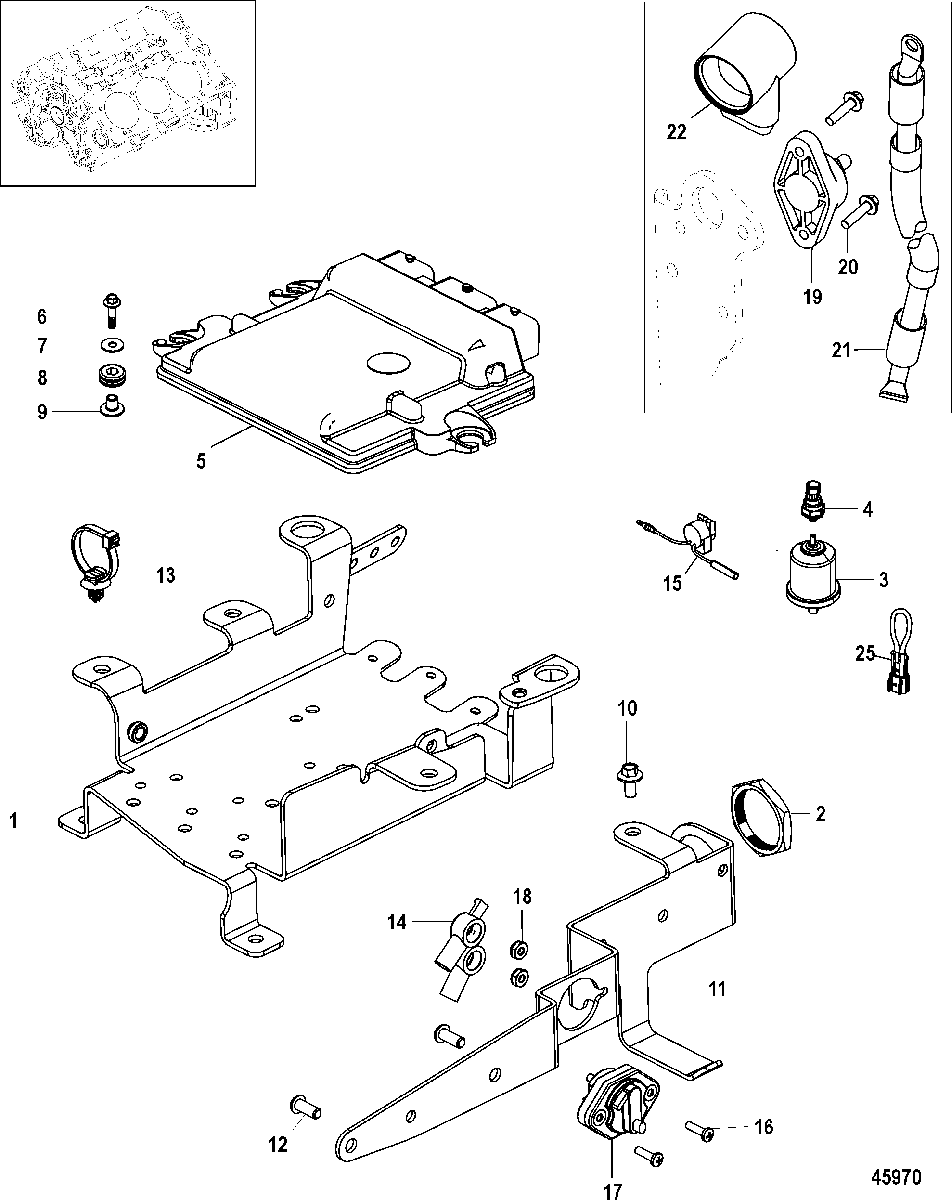

PCM and Electrical Components для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up

№

Артикул

Название
1

8M0054010 BRACKET, Electrical

BRACKET, Electrical
2

11-889664 NUT, (1.500-18) Black Nylon

NUT, (1.500-18) Black Nylon
3

8M0068784 SENDER ASSEMBLY, Oil

SENDER ASSEMBLY, Oil
3

37293T SENDER ASSEMBLY, Oil
(Dual Station)

SENDER ASSEMBLY, Oil
(Dual Station)
4

8M6000623 SENSOR, Pressure
(Power Steering Cooler)

SENSOR, Pressure
(Power Steering Cooler)
4

881879T11 SENSOR, Pressure (0 - 100 PSI)
(Oil)

SENSOR, Pressure (0 - 100 PSI)
(Oil)
5

8M0054003 PCM, Propulsion Control Module
Standard Cooling, Alpha SN# 1A648622 & Below

PCM, Propulsion Control Module
Standard Cooling, Alpha SN# 1A648622 & Below
5

78-8M0059347 PCM, Propulsion Control Module
Standard Cooling, Alpha SN# 1A648623 & Up

PCM, Propulsion Control Module
Standard Cooling, Alpha SN# 1A648623 & Up
5

8M0054004 PCM, Propulsion Control Module
Closed Cooling, Alpha SN# 1A648622 & Below

PCM, Propulsion Control Module
Closed Cooling, Alpha SN# 1A648622 & Below
5

78-8M0059348 PCM, Propulsion Control Module
Closed Cooling, Alpha SN# 1A648623 & Up

PCM, Propulsion Control Module
Closed Cooling, Alpha SN# 1A648623 & Up
5

8M0054005 PCM, Propulsion Control Module
Standard Cooling, Bravo SN# 1A648622 & Below

PCM, Propulsion Control Module
Standard Cooling, Bravo SN# 1A648622 & Below
5

78-8M0059349 PCM, Propulsion Control Module
Standard Cooling, Bravo SN# 1A648623 & Up

PCM, Propulsion Control Module
Standard Cooling, Bravo SN# 1A648623 & Up
5

8M0054006 PCM, Propulsion Control Module
Closed Cooling, Bravo SN# 1A648622 & Below

PCM, Propulsion Control Module
Closed Cooling, Bravo SN# 1A648622 & Below
5

78-8M0059350 PCM, Propulsion Control Module
Closed Cooling, Bravo SN# 1A648623 & Up

PCM, Propulsion Control Module
Closed Cooling, Bravo SN# 1A648623 & Up
6

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)
7

12-65567 WASHER, (.265 x .750 x .048) Stainless Steel

WASHER, (.265 x .750 x .048) Stainless Steel
8

25-834985 GROMMET

GROMMET
9

23-856954 BUSHING

BUSHING
10

10-4010612 SCREW, (M6 x 12) Stainless Steel, Circuit Breaker Bracket to PCM Bracket

SCREW, (M6 x 12) Stainless Steel, Circuit Breaker Bracket to PCM Bracket
11

8M0054011 BRACKET, Circuit Breaker

BRACKET, Circuit Breaker
12

10-860008 SCREW, (.250-20 x .625) Torx

SCREW, (.250-20 x .625) Torx
13

54-899145 CLIP, Tie Strap

CLIP, Tie Strap
14

85-89919 BOOT, Insulator - Black

BOOT, Insulator - Black
15

816492A15 ALARM KIT

ALARM KIT
16

10-830861 SCREW, (#8-32 x .625)
SN# 2A054617 & Below

SCREW, (#8-32 x .625)
SN# 2A054617 & Below
16

10-45862 SCREW, (#10-32 x .875)
SN# 2A054618 & Up

SCREW, (#10-32 x .875)
SN# 2A054618 & Up
17

88-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
SN# 2A054617 & Below

BREAKER, Circuit - 50 Ampere, Flag Reset
SN# 2A054617 & Below
17

88-11178A01 BREAKER, Circuit - 50 Ampere, Button Reset
SN# 2A054618 & Up

BREAKER, Circuit - 50 Ampere, Button Reset
SN# 2A054618 & Up
18

11-826709106 NUT, (#10-32) Stainless Steel
SN# 2A054617 & Below

NUT, (#10-32) Stainless Steel
SN# 2A054617 & Below
18

11-68219 NUT, (#10-32) Stainless Steel
SN# 2A054618 & Up

NUT, (#10-32) Stainless Steel
SN# 2A054618 & Up
19

8M2017792 STUD, Hot (3/8-16)

STUD, Hot (3/8-16)
20

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)
21

84-8M0054620 HARNESS, Hot Stud

HARNESS, Hot Stud
22

85-8M2021953 INSULATOR

INSULATOR
23

54-8M2020527 CLIP, Hose

CLIP, Hose
24

10-4010612 SCREW, (M6 x 12) Stainless Steel

SCREW, (M6 x 12) Stainless Steel
25

864337A1 CONNECTOR, Black

CONNECTOR, Black
