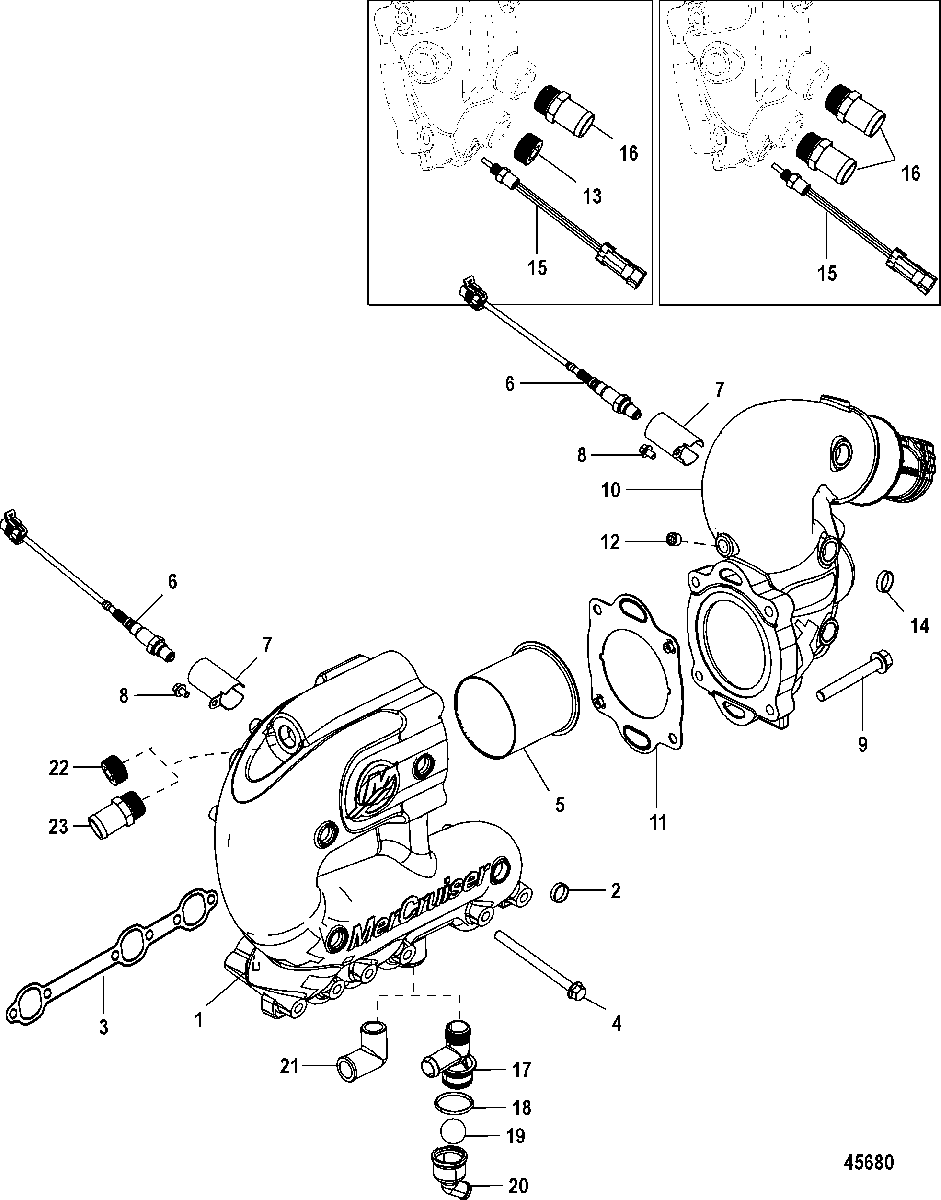

Exhaust Manifold and Elbow для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up

  • №
    Артикул
    Название
  • 1
    8M0104214 MANIFOLD ASSEMBLY, Exhaust, Port
    MANIFOLD ASSEMBLY, Exhaust, Port
  • 1
    8M0104216 MANIFOLD ASSEMBLY, Exhaust, Starboard
    MANIFOLD ASSEMBLY, Exhaust, Starboard
  • 2
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 3
    27-99757 GASKET
    GASKET
  • 4
    10-8M0144800 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 5
    8M0053878 CATALYST
    CATALYST
  • 6
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 7
    8M2004597 BRACKET, Cover
    BRACKET, Cover
  • 8
    10-8M2007128 SCREW, (1/4-20) Hex Flange
    SCREW, (1/4-20) Hex Flange
  • 9
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 10
    8M0104207 ELBOW ASSEMBLY, No Rise, Port
    ELBOW ASSEMBLY, No Rise, Port
  • 10
    8M0104208 ELBOW ASSEMBLY, No Rise, Starboard
    ELBOW ASSEMBLY, No Rise, Starboard
  • 10
    8M0104209 ELBOW ASSEMBLY, 2 Inch Riser
    (Includes Port & Starboard)
    ELBOW ASSEMBLY, 2 Inch Riser
    (Includes Port & Starboard)
  • 10
    8M0104210 ELBOW ASSEMBLY, 4 Inch Riser
    (Includes Port & Starboard)
    ELBOW ASSEMBLY, 4 Inch Riser
    (Includes Port & Starboard)
  • 10
    8M0104211 ELBOW ASSEMBLY, 6 Inch Riser
    (Includes Port & Starboard)
    ELBOW ASSEMBLY, 6 Inch Riser
    (Includes Port & Starboard)
  • 11
    27-8M2004606 GASKET
    Closed Cooling
    GASKET
    Closed Cooling
  • 11
    27-8M2004414 GASKET
    Standard Cooling
    GASKET
    Standard Cooling
  • 12
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 13
    22-428611 FITTING, Pipe - Brass (.750-14)
    (Standard Cooling)
    FITTING, Pipe - Brass (.750-14)
    (Standard Cooling)
  • 14
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 15
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 16
    22-866725 FITTING, Straight (.750-14)
    (Standard Cooling)
    FITTING, Straight (.750-14)
    (Standard Cooling)
  • 16
    22-866725 FITTING, Straight (.750-14)
    (Closed Cooling)
    FITTING, Straight (.750-14)
    (Closed Cooling)
  • 17
    22-863786A1 FITTING ASSEMBLY
    (Standard Cooling)
    FITTING ASSEMBLY
    (Standard Cooling)
  • 18
    25-864701 O-RING, (1.112 x .103)
    (Standard Cooling)
    O-RING, (1.112 x .103)
    (Standard Cooling)
  • 19
    30-863129 BALL
    (Standard Cooling)
    BALL
    (Standard Cooling)
  • 20
    862994T FITTING
    (Standard Cooling)
    FITTING
    (Standard Cooling)
  • 21
    22-36305T ELBOW
    (Closed Cooling)
    ELBOW
    (Closed Cooling)
  • 22
    22-428611 FITTING, Pipe - Brass (.750-14)
    (Standard Cooling)
    FITTING, Pipe - Brass (.750-14)
    (Standard Cooling)
  • 23
    22-866725 FITTING, Straight (.750-14)
    (Closed Cooling)
    FITTING, Straight (.750-14)
    (Closed Cooling)
