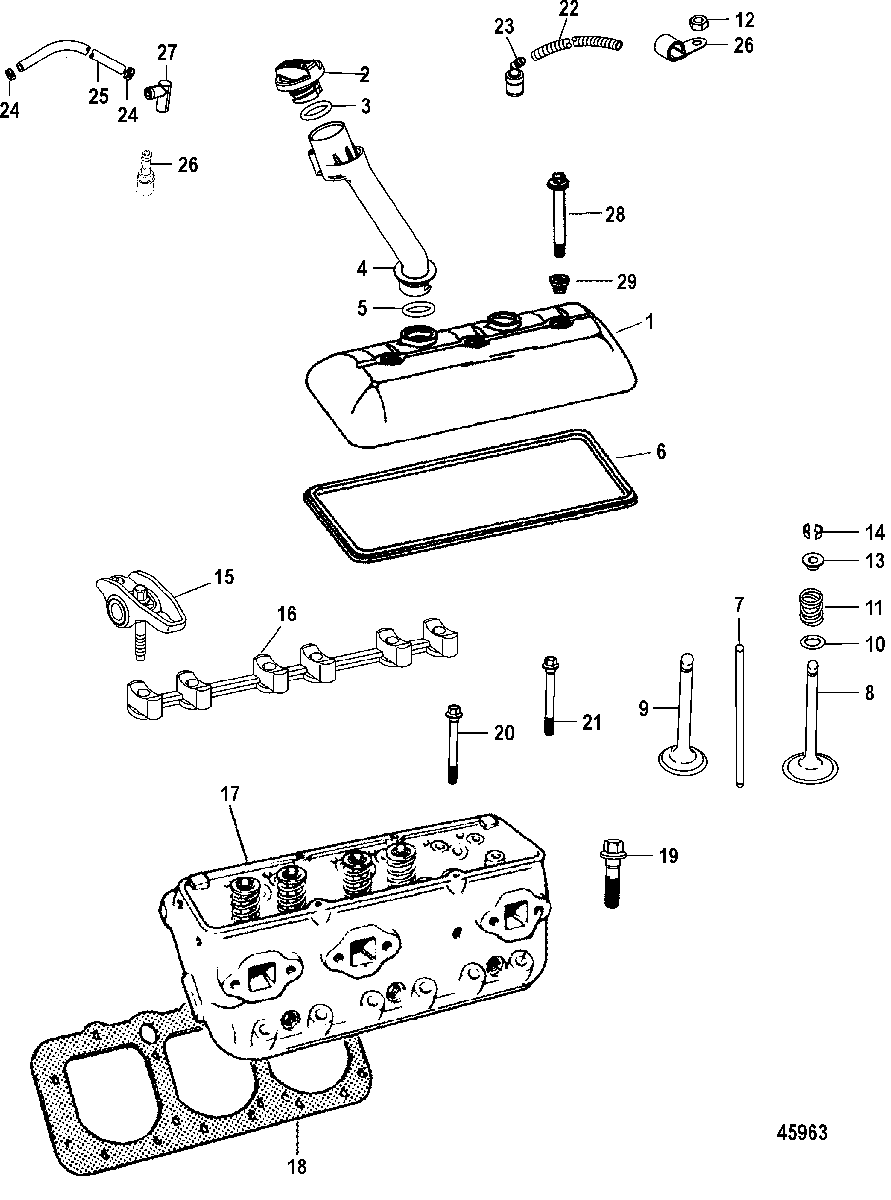

Cylinder Head and Rocker Cover для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up

  • №
    Артикул
    Название
  • 1
    827149 COVER, Rocker
    Without oil filler opening
    COVER, Rocker
    Without oil filler opening
  • 1
    8M0076416 COVER, Rocker
    With oil filler opening
    COVER, Rocker
    With oil filler opening
  • 2
    36-8M0095073 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    25-8M0043174 O-RING
    O-RING
  • 4
    8M0054119 TUBE ASSEMBLY, Oil Fill
    TUBE ASSEMBLY, Oil Fill
  • 5
    25-8M0043174 O-RING
    O-RING
  • 6
    27-827154 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 7
    173391 PUSH ROD
    PUSH ROD
  • 8
    8243171 VALVE, Exhaust
    (Standard)
    VALVE, Exhaust
    (Standard)
  • 8
    8243181 VALVE, Exhaust
    (.030 Over Size)
    VALVE, Exhaust
    (.030 Over Size)
  • 9
    809992 VALVE, Intake
    (Standard)
    VALVE, Intake
    (Standard)
  • 10
    26-8M0050563 SEAL
    (Intake Valve)
    SEAL
    (Intake Valve)
  • 10
    26-804507 SEAL
    (Exhaust Valve)
    SEAL
    (Exhaust Valve)
  • 11
    24-483471 SPRING
    SPRING
  • 12
    11-802751 NUT
    NUT
  • 13
    483481 CAP
    CAP
  • 14
    28-547971 KEY
    KEY
  • 15
    883164001 ROCKER ARM ASSEMBLY, Roller
    ROCKER ARM ASSEMBLY, Roller
  • 16
    883165 SUPPORT, Rocker Arm
    SUPPORT, Rocker Arm
  • 17
    938-8M0115136 CYLINDER HEAD
    CYLINDER HEAD
  • 18
    27-879150140 GASKET, Head
    GASKET, Head
  • 19
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 20
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 21
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 22
    32-8M0086022 TUBING, (20.00 Inches Bulk), Breather
    TUBING, (20.00 Inches Bulk), Breather
  • NS
    25-827152 GROMMET, Breather Elbow
    GROMMET, Breather Elbow
  • 23
    97850T ELBOW, 90 Degree, Breather
    (Starboard)
    ELBOW, 90 Degree, Breather
    (Starboard)
  • 24
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 25
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 26
    54-866029 CLAMP
    CLAMP
  • 27
    22-863432T FITTING
    FITTING
  • 28
    10-827153 SCREW
    SCREW
  • 29
    25-827155 O-RING
    O-RING
  • 30
    8M0065285 VALVE, PCV
    VALVE, PCV
  • NS
    25-827152 GROMMET, PCV Valve
    GROMMET, PCV Valve
  • -
    27-807756A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    879150A31 LONG BLOCK (4.3L)
    LONG BLOCK (4.3L)
