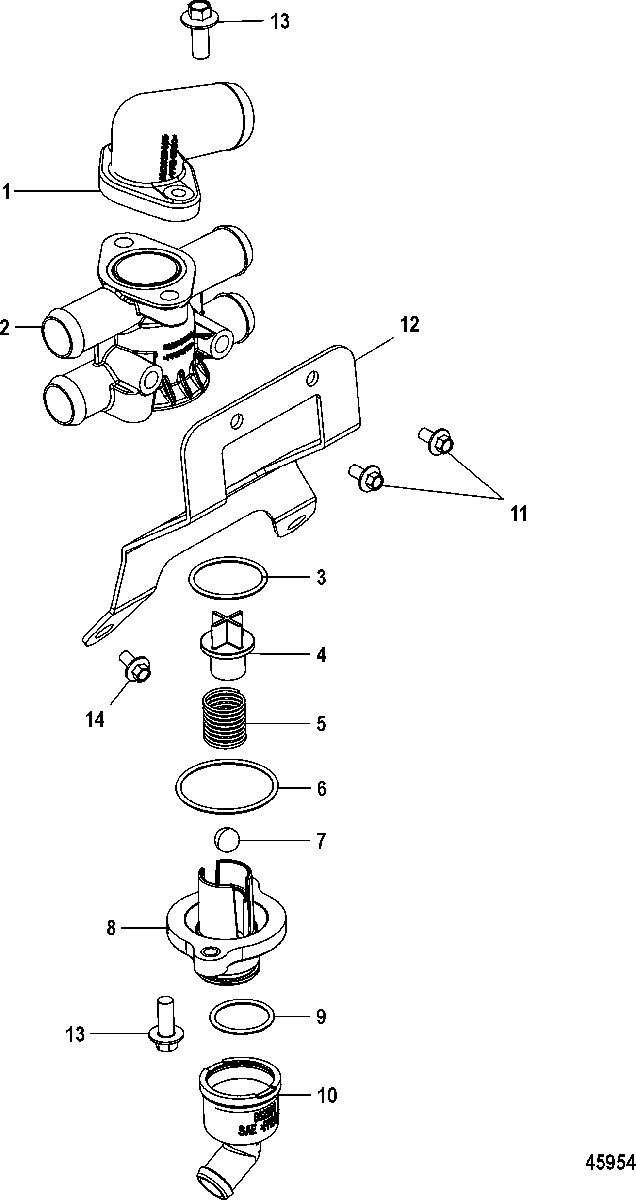

Poppet Valve Assembly, Closed Cooling для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up

  • №
    Артикул
    Название
  • -
    8M0053928 VALVE ASSEMBLY, Poppet
    VALVE ASSEMBLY, Poppet
  • 1
    22-8M2020465 FITTING
    FITTING
  • 2
    8M0053929 HOUSING, Poppet
    HOUSING, Poppet
  • 3
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 4
    8M2010186 POPPET
    POPPET
  • 5
    24-42996 SPRING, (Stainless Steel)
    SPRING, (Stainless Steel)
  • 6
    25-30529 O-RING, (1.925 x .103)
    O-RING, (1.925 x .103)
  • 7
    30-863129 BALL
    BALL
  • 8
    8M2019982 CAP, Poppet Housing
    CAP, Poppet Housing
  • 9
    25-864701 O-RING, (1.112 x .103)
    O-RING, (1.112 x .103)
  • 10
    862994T FITTING
    FITTING
  • 11
    10-4010612 SCREW, (M6 x 12) Stainless Steel
    SCREW, (M6 x 12) Stainless Steel
  • 12
    8M2019987 BRACKET, Poppet Valve
    BRACKET, Poppet Valve
  • 13
    10-4010618 SCREW, (M6 x 18) Stainless Steel
    SCREW, (M6 x 18) Stainless Steel
  • 14
    10-816585 SCREW, (.375-18 x .875), To Flywheel Housing
    SCREW, (.375-18 x .875), To Flywheel Housing
