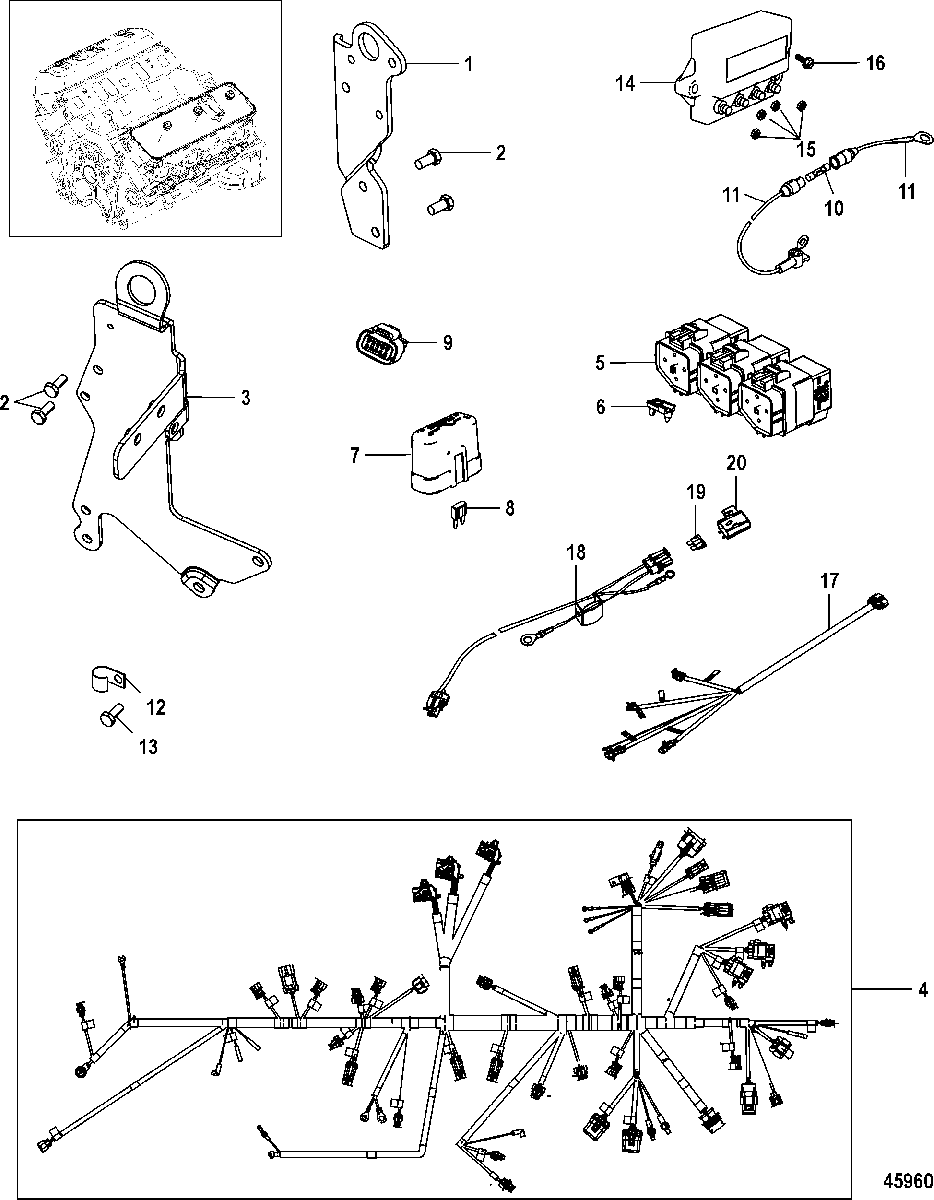

Harness, Lifting Brackets and Mercathode для Mercruiser - 4.3L MPI ALPHA/BRAVO EC 1A637496 & Up

№

Артикул

Название
1

879172T32 BRACKET, Lifting Eye, Rear

BRACKET, Lifting Eye, Rear
2

10-98261 SCREW, (.375-16 x .750)
Front Lifting Eye

SCREW, (.375-16 x .750)
Front Lifting Eye
2

10-98261 SCREW, (.375-16 x .750)
Rear Lifting Eye

SCREW, (.375-16 x .750)
Rear Lifting Eye
2

10-34353 SCREW, (.375-16 x 1.00)
Rear Lifting Eye

SCREW, (.375-16 x 1.00)
Rear Lifting Eye
3

8M0053837 BRACKET, Lifting Eye, Front

BRACKET, Lifting Eye, Front
4

84-8M0114872 HARNESS ASSEMBLY, Engine

HARNESS ASSEMBLY, Engine
5

882751 RELAY

RELAY
6

86-865205 CLIP

CLIP
7

858754 COVER, Fuse

COVER, Fuse
8

88-83296910 FUSE, Mini - Red - 10 Ampere

FUSE, Mini - Red - 10 Ampere
8

88-832969T15 FUSE, Mini - Blue - 15 Ampere

FUSE, Mini - Blue - 15 Ampere
8

88-8329692 FUSE, Mini - Gray - 2 Ampere

FUSE, Mini - Gray - 2 Ampere
8

88-832969T20 FUSE, Mini - Yellow - 20 Ampere

FUSE, Mini - Yellow - 20 Ampere
9

859318T1 TERMINATOR, 10 Pin (CAN 1 and 2)

TERMINATOR, 10 Pin (CAN 1 and 2)
10

88-79091 FUSE, 20 Ampere

FUSE, 20 Ampere
11

84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip

CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
11

84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red

CABLE ASSEMBLY, (5.00 Inches) Red
12

54-92850 CLAMP, Harness to Block

CLAMP, Harness to Block
13

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)
14

42600A09 MERCATHODE ASSEMBLY

MERCATHODE ASSEMBLY
15

11-68219 NUT, (#10-32) Stainless Steel

NUT, (#10-32) Stainless Steel
16

10-4010516 SCREW, (M5 x 16) Stainless Steel

SCREW, (M5 x 16) Stainless Steel
17

84-865677T02 HARNESS ASSEMBLY, Transom

HARNESS ASSEMBLY, Transom
18

84-8M0113732 HARNESS ASSEMBLY

HARNESS ASSEMBLY
19

862646 FUSE, Tan - 5 Ampere

FUSE, Tan - 5 Ampere
20

828054 COVER, Fuse

COVER, Fuse
