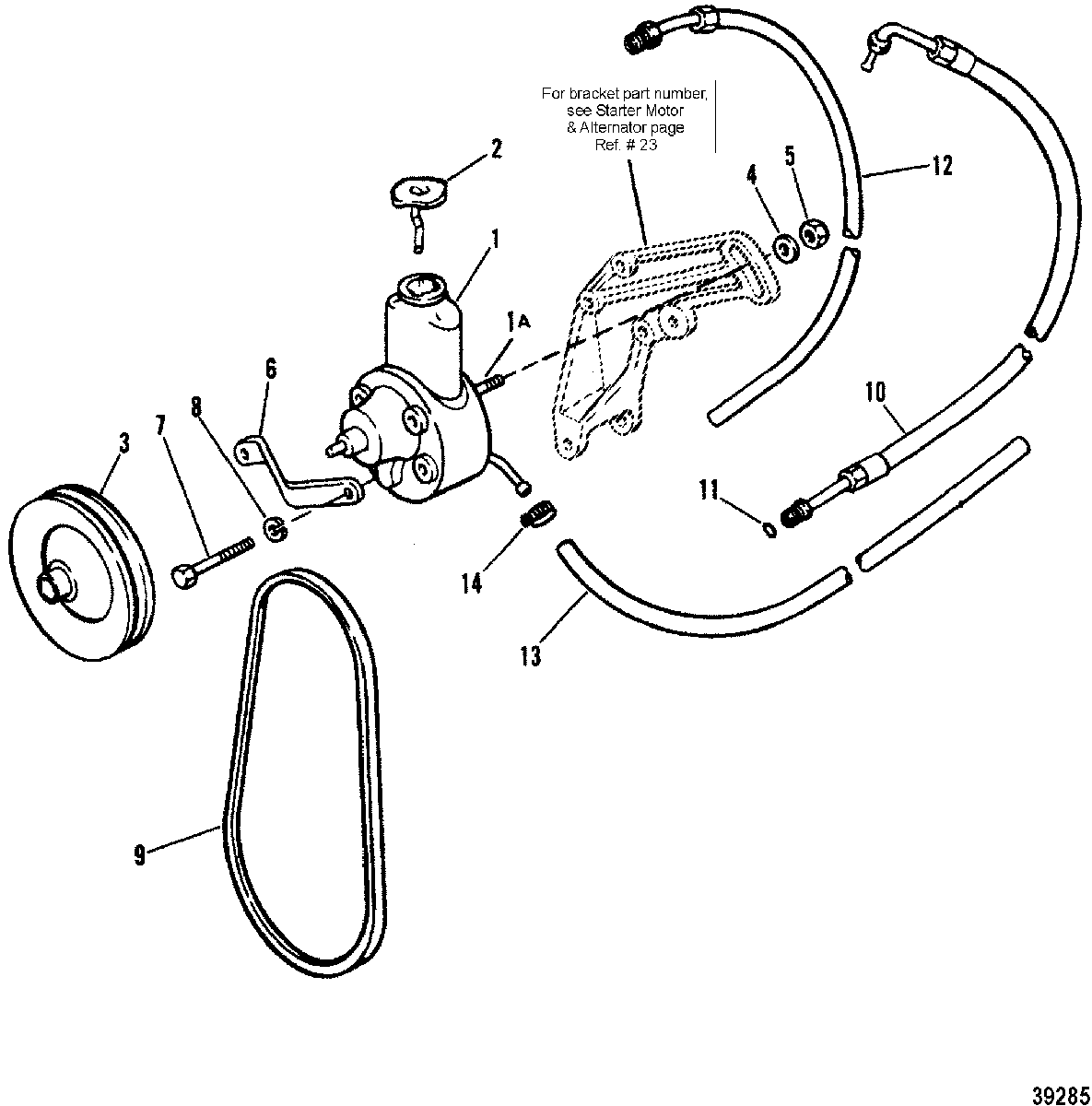

Power Steering Components для Mercruiser - 205 (4 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, Power Steering
    PUMP ASSEMBLY, Power Steering
  • 1A
    16-41877 STUD, (M10), Power Steering Pump
    STUD, (M10), Power Steering Pump
  • 2
    36-95805 CAP, Power Steering Pump
    CAP, Power Steering Pump
  • 3
    73873A1 PULLEY, Power Steering Pump
    PULLEY, Power Steering Pump
  • 4
    12-34567 WASHER, Pump Stud (Brace Slot)
    WASHER, Pump Stud (Brace Slot)
  • 5
    11-90517 NUT, (M10), Mounting Stud
    NUT, (M10), Mounting Stud
  • 6
    98644A1 BRACE, Pump Mounting
    BRACE, Pump Mounting
  • 7
    10-40001188 SCREW, (M10 x 20), Pump Mounting Brace
    SCREW, (M10 x 20), Pump Mounting Brace
  • 8
    13-400248 LOCKWASHER, (M10), Brace Screw
    LOCKWASHER, (M10), Brace Screw
  • 9
    57-37619Q V BELT, Power Steering Pump (52")
    V BELT, Power Steering Pump (52")
  • 10
    32-90494 HOSE, Pressure
    (Fittings on Both Ends)
    HOSE, Pressure
    (Fittings on Both Ends)
  • 11
    25-89879 O-RING, (.301 x .064), Pressure Hose End
    O-RING, (.301 x .064), Pressure Hose End
  • 12
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk), Return
    (Fittings on One End)
    HOSE ASSEMBLY, (72.00 Inches Bulk), Return
    (Fittings on One End)
  • 13
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 14
    54-815504206 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
