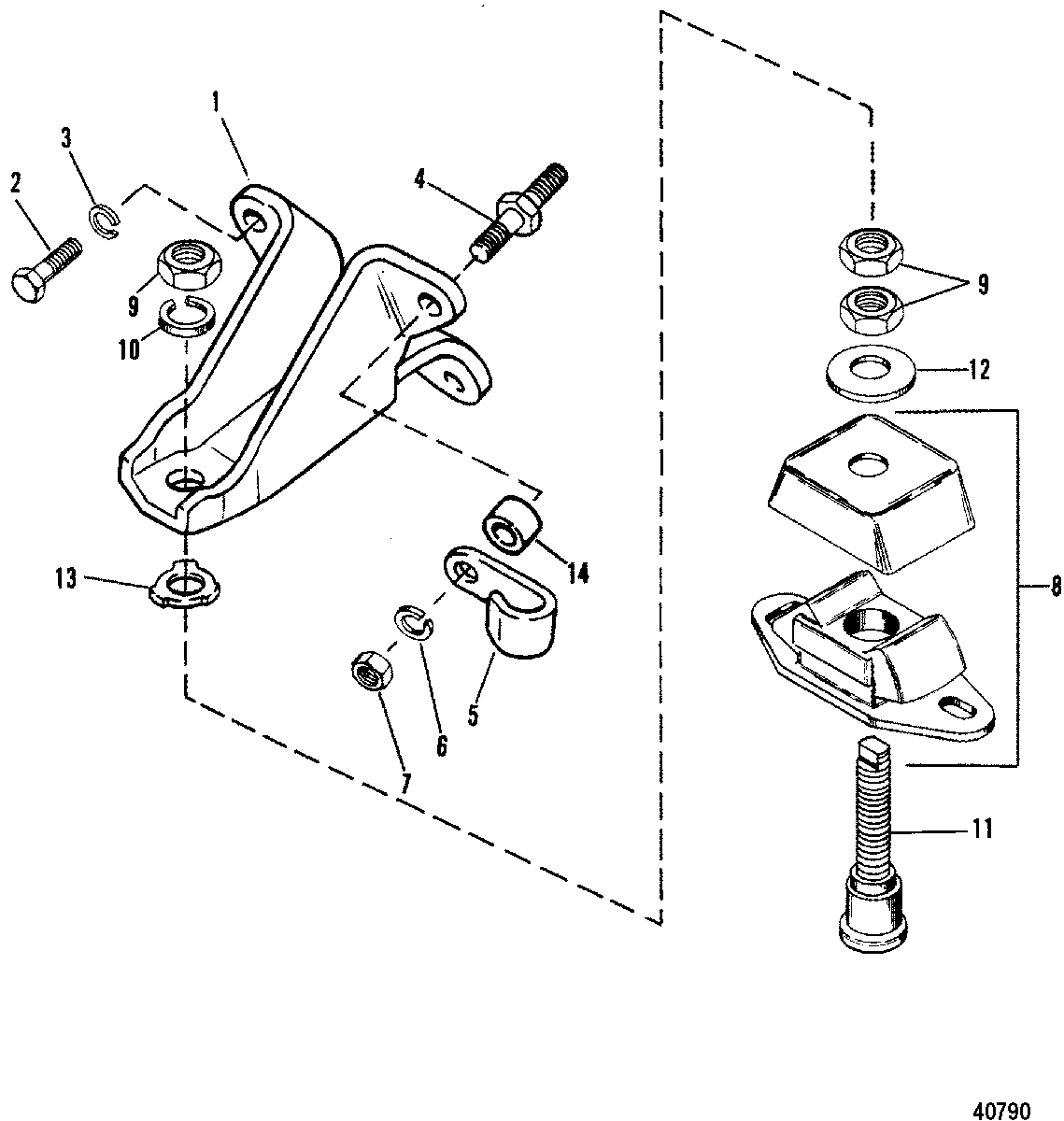

Engine Mounting для Mercruiser - 205 (4 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET ASSEMBLY, Mounting, Engine (FRONT)
    BRACKET ASSEMBLY, Mounting, Engine (FRONT)
  • 2
    10-34353 SCREW, (.375-16 x 1.00), Mounting Bracket to Engine
    SCREW, (.375-16 x 1.00), Mounting Bracket to Engine
  • 3
    13-35048 LOCKWASHER, (.375), Mounting Bracket Screw
    LOCKWASHER, (.375), Mounting Bracket Screw
  • 3
    12-46132 WASHER, Mounting Bracket Screw
    WASHER, Mounting Bracket Screw
  • 4
    16-861316 STUD, (.375-16 x 2.750) Special, Mounting Bracket to Engine
    Starboard
    STUD, (.375-16 x 2.750) Special, Mounting Bracket to Engine
    Starboard
  • 5
    54-92850 CLAMP, Wiring Harness
    Starboard
    CLAMP, Wiring Harness
    Starboard
  • 6
    13-35048 LOCKWASHER, (.375)
    Starboard
    LOCKWASHER, (.375)
    Starboard
  • 7
    11-32219 NUT, (.375-16)
    Starboard
    NUT, (.375-16)
    Starboard
  • 8
    98323A6 BASE ASSEMBLY, Engine Mount
    BASE ASSEMBLY, Engine Mount
  • 9
    11-20739 NUT, (.750-16), Jam, Engine Mount Base
    NUT, (.750-16), Jam, Engine Mount Base
  • 10
    13-68102 LOCKWASHER, (.750), Mounting Bracket
    LOCKWASHER, (.750), Mounting Bracket
  • 11
    16-41012 STUD, Engine Mounting
    STUD, Engine Mounting
  • 12
    12-41150 WASHER, Support
    WASHER, Support
  • 13
    14-12657 TAB WASHER
    TAB WASHER
  • 14
    23-57369 SPACER, Mounting Stud
    SPACER, Mounting Stud
