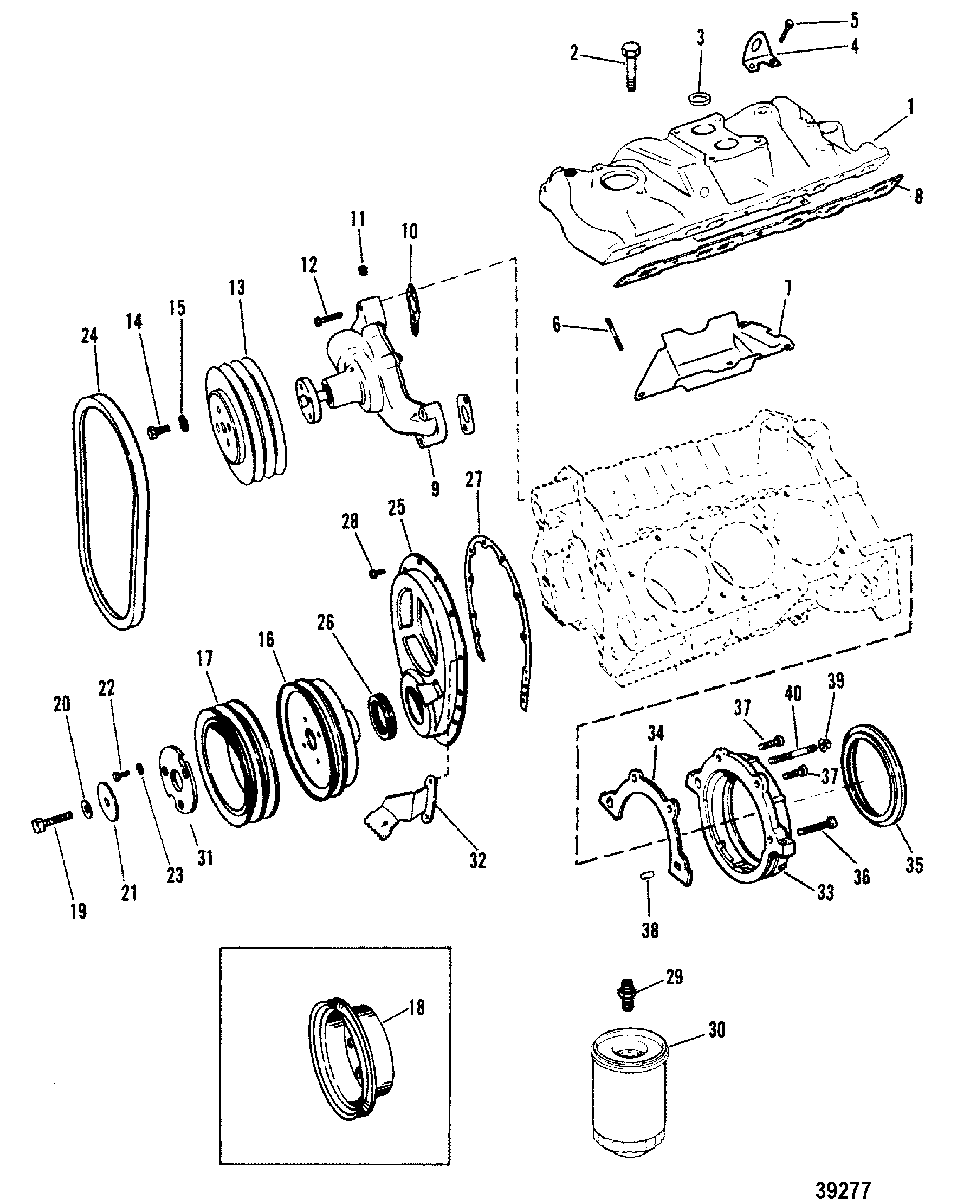

Intake Manifold & Front Cover для Mercruiser - 205 (4 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    11974 MANIFOLD, Intake (185)
    MANIFOLD, Intake (185)
  • 1
    42752T MANIFOLD, Intake (205)
    MANIFOLD, Intake (205)
  • 2
    10-11976 SCREW, (.375-16 x 1.00), Intake Manifold
    SCREW, (.375-16 x 1.00), Intake Manifold
  • 2
    10-802655 BOLT, (3/8-16 x 1.25), Intake Manifold
    BOLT, (3/8-16 x 1.25), Intake Manifold
  • 3
    22-75983 PLUG, Vacuum Hole
    PLUG, Vacuum Hole
  • 4
    42453 BRACKET, Lifting (FRONT)
    BRACKET, Lifting (FRONT)
  • 4
    42745 BRACKET, Lifting (REAR)
    BRACKET, Lifting (REAR)
  • 5
    10-34354 SCREW, (.375-16 x 1.50), Lifting Bracket
    SCREW, (.375-16 x 1.50), Lifting Bracket
  • 6
    N.S.S. Not Sold Separate, STUD, Guard to Intake Manifold
    (GM #3959544)
    Not Sold Separate, STUD, Guard to Intake Manifold
    (GM #3959544)
  • 7
    42753 GUARD, Intake Manifold
    GUARD, Intake Manifold
  • 8
    27-11977 GASKET SET, Intake Manifold
    GASKET SET, Intake Manifold
  • 9
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 10
    27-34897 GASKET, Water Pump Mounting
    GASKET, Water Pump Mounting
  • 11
    22-48336 PLUG, Water Pump
    PLUG, Water Pump
  • 12
    10-32132 SCREW, (.375-16 x 1.750), Water Pump to Cylinder Block
    SCREW, (.375-16 x 1.750), Water Pump to Cylinder Block
  • 12
    10-47688 SCREW, (.375-16 x 2.750), Water Pump to Cylinder Block
    SCREW, (.375-16 x 2.750), Water Pump to Cylinder Block
  • 12
    10-52200 SCREW, (1.625 In.), Water Pump to Cylinder Block
    SCREW, (1.625 In.), Water Pump to Cylinder Block
  • 12
    N.S.S. Not Sold Separate, STUD, Water Pump to Cylinder Block
    (GM #3759755)
    Not Sold Separate, STUD, Water Pump to Cylinder Block
    (GM #3759755)
  • 13
    15120T PULLEY, Water Pump (3 GROOVE)
    PULLEY, Water Pump (3 GROOVE)
  • 14
    10-47277 SCREW, (.312-24 x .750), Pulley to Water Pump
    SCREW, (.312-24 x .750), Pulley to Water Pump
  • 15
    13-39107 LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
    LOCKWASHER, (.312-24), WATER PUMP PULLEY SCREW
  • 16
    11990 BALANCER, Harmonic, Crankshaft
    BALANCER, Harmonic, Crankshaft
  • 17
    33863T PULLEY, Harmonic Balancer (2 GROOVE)
    PULLEY, Harmonic Balancer (2 GROOVE)
  • 18
    90081A1 PULLEY (1 GROOVE)
    With Power Steering
    PULLEY (1 GROOVE)
    With Power Steering
  • 19
    10-72626 BOLT, (2 In.), Pulley & Harmonic Balancer
    BOLT, (2 In.), Pulley & Harmonic Balancer
  • 20
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 21
    12-35332001 WASHER
    WASHER
  • 22
    10-34352 SCREW, (.375-24 x .875), Pulley
    Without Power Steering
    SCREW, (.375-24 x .875), Pulley
    Without Power Steering
  • 22
    10-35786 SCREW, (.375-24 x 1.00), Pulley
    With Power Steering
    SCREW, (.375-24 x 1.00), Pulley
    With Power Steering
  • 23
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 24
    57-93658Q BELT, (44 Inch), Alternator Drive (44")
    BELT, (44 Inch), Alternator Drive (44")
  • 25
    8M0127828 COVER, Crankcase Front
    (Use With 2 Piece Rear Seal)
    COVER, Crankcase Front
    (Use With 2 Piece Rear Seal)
  • 25
    8M0127828 COVER, Crankcase Front
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    COVER, Crankcase Front
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 26
    26-97335 SEAL, Oil, Cover
    (Use with 2 Piece Rear Seal or 1 Piece Rear Seal-FULL CIRCLE)
    SEAL, Oil, Cover
    (Use with 2 Piece Rear Seal or 1 Piece Rear Seal-FULL CIRCLE)
  • 27
    27-14250 GASKET, Cover
    (Use With 2 Piece Rear Seal)
    GASKET, Cover
    (Use With 2 Piece Rear Seal)
  • 27
    27-14250 GASKET, Cover
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    GASKET, Cover
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 28
    10-8M0040582 SCREW, Cover
    SCREW, Cover
  • 29
    11972 ADAPTOR, Oil Filter
    ADAPTOR, Oil Filter
  • 30
    35-883702Q FILTER, Oil
    FILTER, Oil
  • 31
    42697 BACKING PLATE, Crankshaft Pulley
    BACKING PLATE, Crankshaft Pulley
  • 32
    75435A1 POINTER
    POINTER
  • 33
    14239 RETAINER
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    RETAINER
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 34
    27-881715 GASKET, Oil Seal Retainer
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    GASKET, Oil Seal Retainer
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 35
    26-8M0077606 SEAL, Oil, Crankshaft (REAR)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    SEAL, Oil, Crankshaft (REAR)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 36
    10-8M0064241 BOLT, (.250-20 x 1.750), Oil Seal Retainer
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    BOLT, (.250-20 x 1.750), Oil Seal Retainer
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 37
    10-14242 BOLT, (.250-20 x .875), Oil Seal Retainer
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    BOLT, (.250-20 x .875), Oil Seal Retainer
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 38
    17-14263 PIN, Dowel
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    PIN, Dowel
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 39
    11-11996 NUT
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    NUT
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 40
    16-14827 STUD, (.250-20 x 2.180)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    STUD, (.250-20 x 2.180)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
