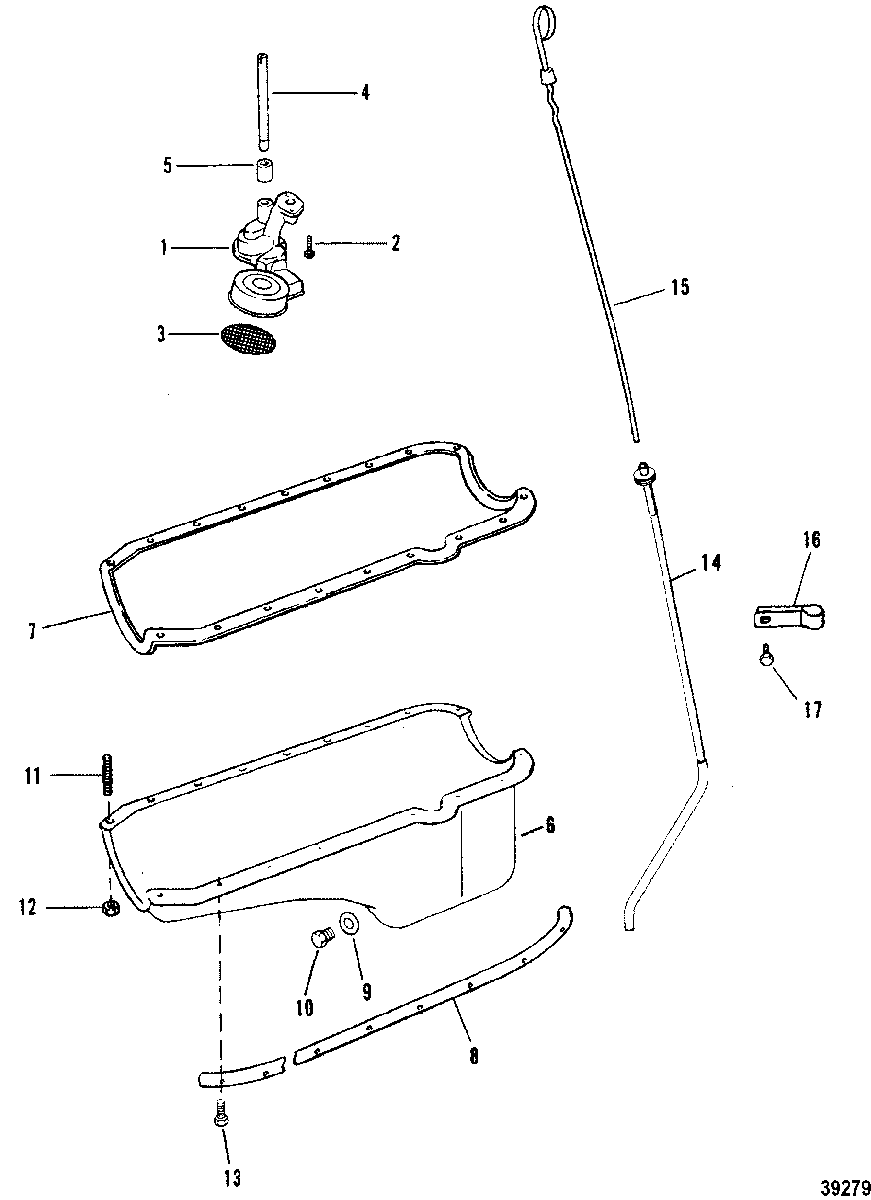

Oil Pan & Oil Pump для Mercruiser - 205 (4 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    17617 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    N.S.S. Not Sold Separate, BOLT, Oil Pump to Cylinder block (2")
    GM #3892678
    Not Sold Separate, BOLT, Oil Pump to Cylinder block (2")
    GM #3892678
  • 3
    35354 SCREEN ASSEMBLY, Oil Pump
    SCREEN ASSEMBLY, Oil Pump
  • 4
    36184 SHAFT, Oil Pump to Distributor
    SHAFT, Oil Pump to Distributor
  • 5
    23-36183 RETAINER, Oil Pump Shaft
    RETAINER, Oil Pump Shaft
  • 6
    11970 PAN, Oil
    (Use With 2 Piece Rear Seal)
    PAN, Oil
    (Use With 2 Piece Rear Seal)
  • 6
    14244T PAN, Oil
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    PAN, Oil
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 7
    27-817024 GASKET SET
    (Use With 2 Piece Rear Seal)
    GASKET SET
    (Use With 2 Piece Rear Seal)
  • 7
    27-883964T GASKET SET, Oil Pan
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    GASKET SET, Oil Pan
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 8
    11980 REINFORCEMENT, Oil Pan (RIGHT)
    (Use With 2 Piece Rear Seal)
    REINFORCEMENT, Oil Pan (RIGHT)
    (Use With 2 Piece Rear Seal)
  • 8
    11981 REINFORCEMENT, Oil Pan (LEFT)
    (Use With 2 Piece Rear Seal)
    REINFORCEMENT, Oil Pan (LEFT)
    (Use With 2 Piece Rear Seal)
  • 8
    14245 REINFORCEMENT, Oil Pan(RIGHT)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    REINFORCEMENT, Oil Pan(RIGHT)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 8
    14246 REINFORCEMENT, Oil Pan (LEFT)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    REINFORCEMENT, Oil Pan (LEFT)
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 9
    27-8M0077608 GASKET, Drain Screw
    GASKET, Drain Screw
  • 10
    10-49956 SCREW, Drain, Oil Pan
    SCREW, Drain, Oil Pan
  • 11
    16-11989 STUD, (.312-18 x 1.6718), Oil Pan
    STUD, (.312-18 x 1.6718), Oil Pan
  • 12
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 13
    10-72607 SCREW, (.250-20 x .375), Oil Pan
    SCREW, (.250-20 x .375), Oil Pan
  • 14
    12117A5 TUBE, Oil Level Gauge
    TUBE, Oil Level Gauge
  • 15
    86194217 GAUGE, Oil Level (DIPSTICK)
    GAUGE, Oil Level (DIPSTICK)
  • 16
    54-805625 CLIP, Oil Level Tube
    CLIP, Oil Level Tube
  • 17
    10-98253 SCREW, (.250-20 x .500), Clip to Cylinder Block
    SCREW, (.250-20 x .500), Clip to Cylinder Block
