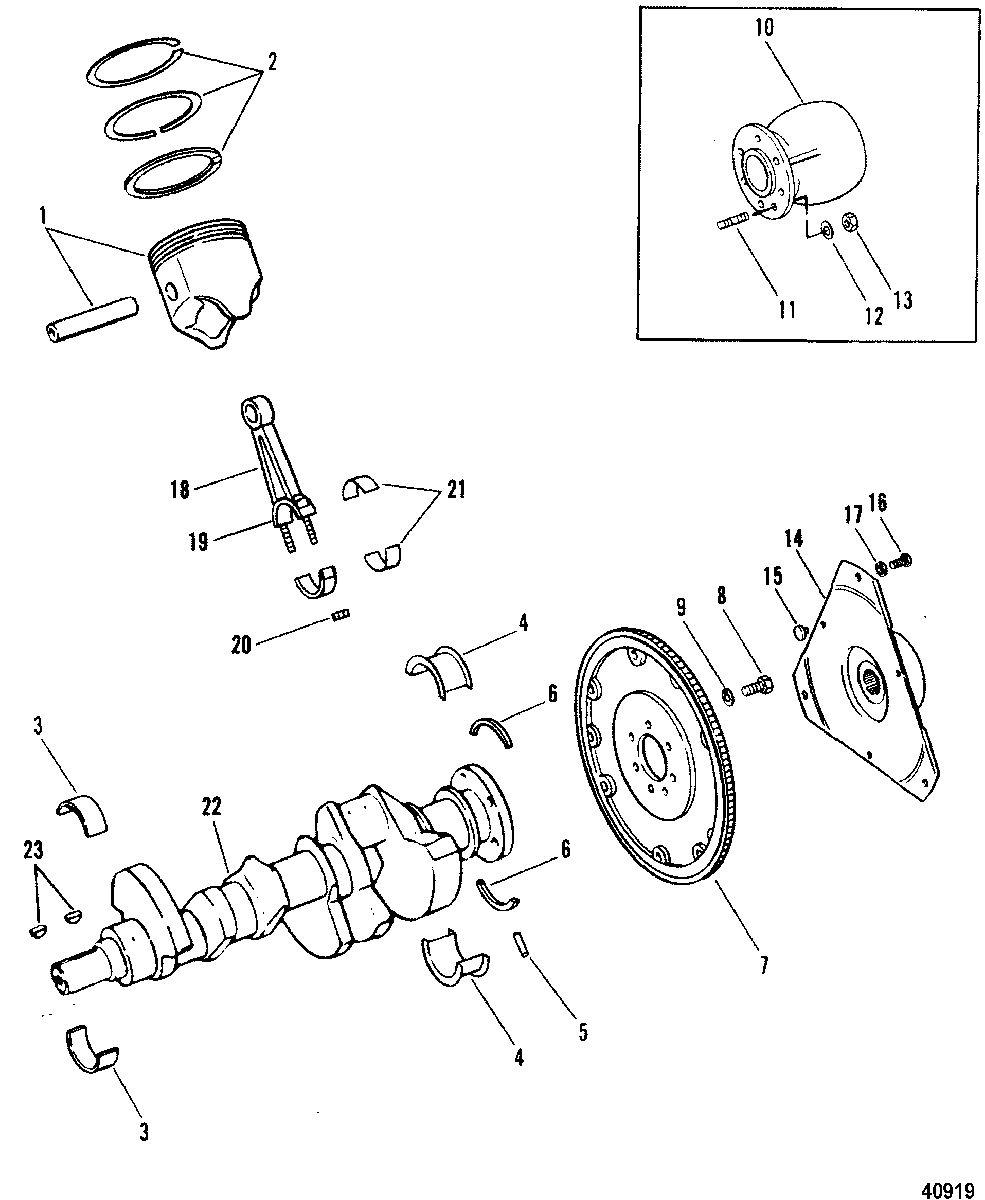

Crankshaft & Pistons для Mercruiser - 205 (4 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    735-9430 PISTON ASSEMBLY (Standard)
    PISTON ASSEMBLY (Standard)
  • 1
    735-850098 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-17464 RING, Piston (Standard)
    RING, Piston (Standard)
  • 2
    39-17465 RING, Piston (.030 O.S.)
    RING, Piston (.030 O.S.)
  • 3
    23-818465 BEARING, Crankshaft (Standard)
    BEARING, Crankshaft (Standard)
  • 3
    23-818466 BEARING, Crankshaft Main (.001 U.S.)
    BEARING, Crankshaft Main (.001 U.S.)
  • 3
    23-818467 BEARING, Crankshaft Main (.010 U.S.)
    BEARING, Crankshaft Main (.010 U.S.)
  • 3
    23-818468 BEARING, Crankshaft Main (.020 U.S.)
    BEARING, Crankshaft Main (.020 U.S.)
  • 4
    23-818465 BEARING, Crankshaft Main - Rear (Standard)
    BEARING, Crankshaft Main - Rear (Standard)
  • 4
    23-818466 BEARING, Crankshaft Main - Rear (.001 U.S.)
    BEARING, Crankshaft Main - Rear (.001 U.S.)
  • 4
    23-818467 BEARING, Crankshaft Main - Rear (.010 U.S.)
    BEARING, Crankshaft Main - Rear (.010 U.S.)
  • 4
    N.S.S. Not Sold Separate, BEARING, Rear (.020 U.S.)
    (GM #3912036)
    Not Sold Separate, BEARING, Rear (.020 U.S.)
    (GM #3912036)
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter), Rear Bearing Cup
    PIN, Dowel (1/4 In. Diameter), Rear Bearing Cup
  • 6
    26-814622 SEAL, Oil
    (Use With 2 Piece Rear Seal)
    SEAL, Oil
    (Use With 2 Piece Rear Seal)
  • 7
    222-9518 FLYWHEEL
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    FLYWHEEL
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 8
    10-845757 SCREW, (.437-20 x 1.00), Flywheel to Crankshaft
    SCREW, (.437-20 x 1.00), Flywheel to Crankshaft
  • 9
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 10
    76850A2 COUPLING ASSEMBLY
    Early Models
    COUPLING ASSEMBLY
    Early Models
  • 11
    16-98532A1 STUD, Coupler to Flywheel
    Early Models
    STUD, Coupler to Flywheel
    Early Models
  • 12
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    Early Models
    WASHER, (.435 x .875 x .105) Stainless Steel
    Early Models
  • 13
    11-8M2008293 NUT, (.437-20)
    Early Models
    NUT, (.437-20)
    Early Models
  • 14
    18643A7 COUPLING ASSEMBLY
    Later Models
    COUPLING ASSEMBLY
    Later Models
  • 15
    269011 BUMPER
    Later Models
    BUMPER
    Later Models
  • 16
    10-14883 SCREW, (.375-16 x 1.12), Coupling
    Later Models
    SCREW, (.375-16 x 1.12), Coupling
    Later Models
  • 17
    12-13510 WASHER
    Later Models
    WASHER
    Later Models
  • 18
    614-811839T02 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 19
    10-11969 BOLT, Connecting Rod Cap
    BOLT, Connecting Rod Cap
  • 20
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 21
    23-11992001 BEARING (Pair) Connecting Rod (Standard)
    BEARING (Pair) Connecting Rod (Standard)
  • 21
    23-11993 BEARING (Pair) Connecting Rod (.001 U.S.)
    BEARING (Pair) Connecting Rod (.001 U.S.)
  • 22
    429-9428 CRANKSHAFT
    (Use With 2 Piece Rear Seal)
    CRANKSHAFT
    (Use With 2 Piece Rear Seal)
  • 22
    429-9517A1 CRANKSHAFT
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
    CRANKSHAFT
    (Use With 1 Piece Rear Seal-FULL CIRCLE)
  • 23
    28-34466 KEY, Crankshaft Pulley & Balancer
    KEY, Crankshaft Pulley & Balancer
