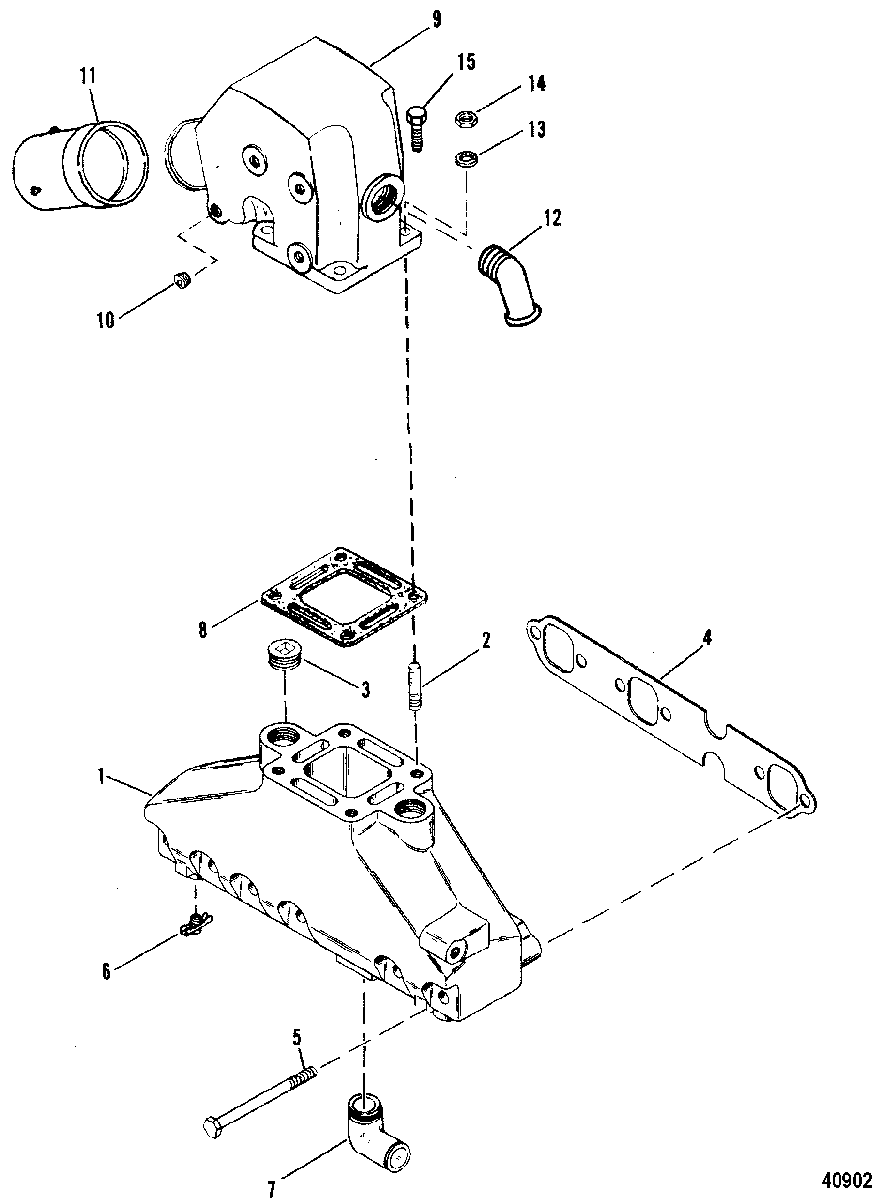

Exhaust Manifold and Exhaust Elbow для Mercruiser - 205 (4 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    99746A17 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    16-49545 STUD, (3/8 x 1.75), Manifold
    Not used with 7 Degree Exhaust Elbow
    STUD, (3/8 x 1.75), Manifold
    Not used with 7 Degree Exhaust Elbow
  • 3
    22-416223 PLUG, (3/4-14), Exhaust Manifold
    PLUG, (3/4-14), Exhaust Manifold
  • 4
    27-99757 GASKET, Exhaust Manifold to Cyliner Head
    GASKET, Exhaust Manifold to Cyliner Head
  • 5
    10-53728 SCREW, (.375-16 x 4.75), Exhaust Manifold
    SCREW, (.375-16 x 4.75), Exhaust Manifold
  • 6
    22-16951Q1 FITTING, Exhaust Manifold
    FITTING, Exhaust Manifold
  • 7
    22-36305T ELBOW, (90 Degrees), Exhaust Manifold
    ELBOW, (90 Degrees), Exhaust Manifold
  • 8
    27-863724 GASKET, Exhaust Elbow
    GASKET, Exhaust Elbow
  • 9
    98504A3 ELBOW ASSEMBLY, Exhaust (15 Degree -3 Inch Outside Diameter)
    ELBOW ASSEMBLY, Exhaust (15 Degree -3 Inch Outside Diameter)
  • 9
    807988A03 ELBOW ASSEMBLY, Exhaust (7 Degree -4 Inch Outside Diameter)
    ELBOW ASSEMBLY, Exhaust (7 Degree -4 Inch Outside Diameter)
  • 10
    22-36382 FITTING, (.250-18 x .62) Brass, Pipe, Exhaust Elbow
    FITTING, (.250-18 x .62) Brass, Pipe, Exhaust Elbow
  • 11
    32-58616A2 TUBE, Water Separation
    TUBE, Water Separation
  • 12
    22-865159 FITTING, (45 Degrees), Exhaust Elbow (45 Degree)
    FITTING, (45 Degrees), Exhaust Elbow (45 Degree)
  • 13
    13-35048 LOCKWASHER, (.375), Manifold Stud
    Not used with 7 degree exhaust elbow
    LOCKWASHER, (.375), Manifold Stud
    Not used with 7 degree exhaust elbow
  • 14
    11-46335 NUT
    Not used with 7 degree exhaust elbow
    NUT
    Not used with 7 degree exhaust elbow
  • 15
    10-43749 SCREW, (.375-16 x 5.750), Manifold
    Use with 7 degree exhaust elbow
    SCREW, (.375-16 x 5.750), Manifold
    Use with 7 degree exhaust elbow
  • -
    93320A13 RISER KIT, Exhaust Elbow (3 In.), Extension
    (Each Kit Contains 2 Risers)
    RISER KIT, Exhaust Elbow (3 In.), Extension
    (Each Kit Contains 2 Risers)
  • -
    93322A12 RISER KIT, Exhaust Elbow (6 In.), Extension
    (Each Kit Contains 2 Risers)
    RISER KIT, Exhaust Elbow (6 In.), Extension
    (Each Kit Contains 2 Risers)
