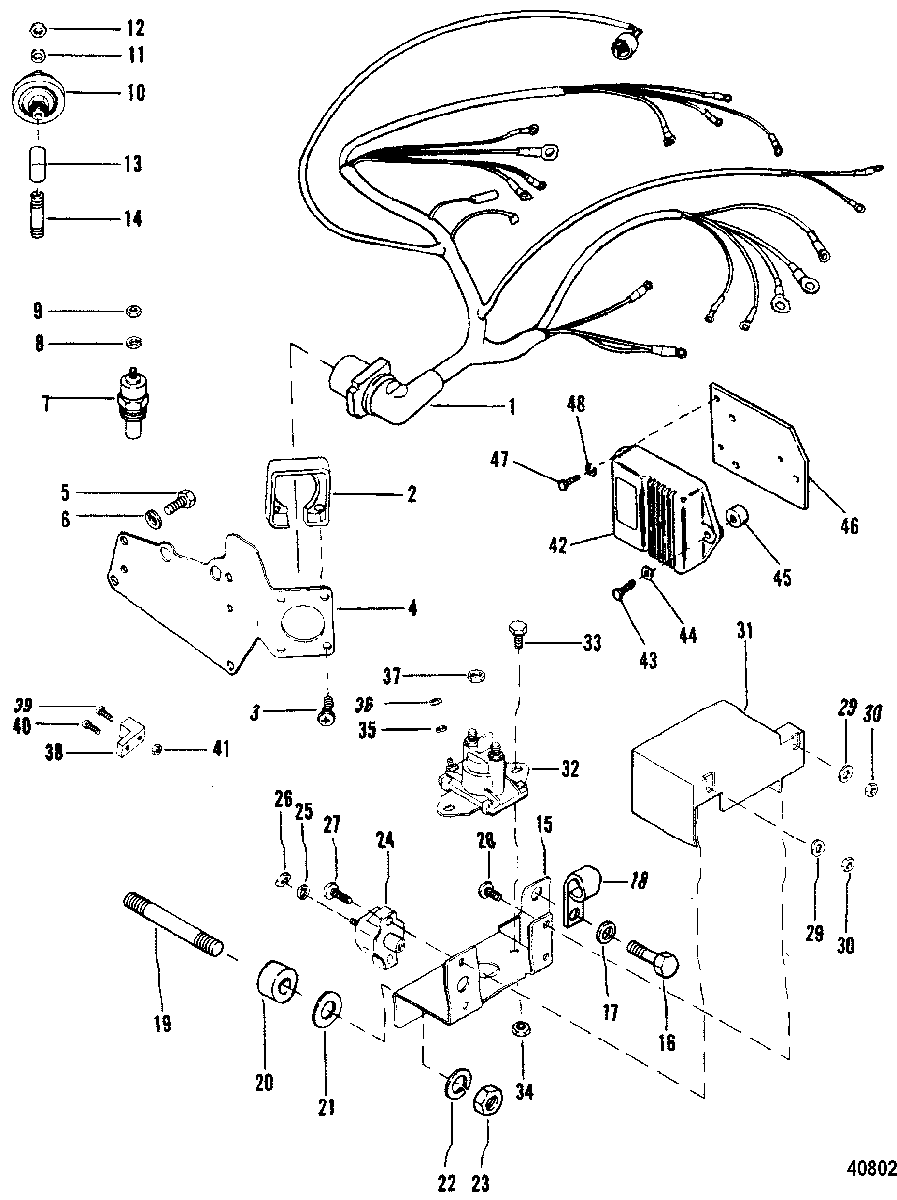

Wiring Harness & Electrical Components для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    84-99510A11 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-34696 SCREW, (#8-32 x .750), Wiring Harness Plate
    SCREW, (#8-32 x .750), Wiring Harness Plate
  • 4
    98493A2 BRACKET, Mounting
    BRACKET, Mounting
  • 5
    10-49668 SCREW, (.250-20 x .750), Mounting Bracket
    SCREW, (.250-20 x .750), Mounting Bracket
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    97258A1 SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 7
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    8M0068784 SENDER, Oil Pressure
    SENDER, Oil Pressure
  • 10
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 12
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 13
    22-46932 ELBOW, Oil Pressure Sender
    ELBOW, Oil Pressure Sender
  • 14
    22-885153 NIPPLE, Oil Pressure Sender
    NIPPLE, Oil Pressure Sender
  • 15
    41170T BRACKET, Mounting
    BRACKET, Mounting
  • 16
    10-76926 SCREW, (.375-16 x .875), Mounting Bracket
    SCREW, (.375-16 x .875), Mounting Bracket
  • 17
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    54-92850 CLAMP, Bracket Screw
    CLAMP, Bracket Screw
  • 19
    16-56826 STUD, (1.5 In.), Mounting Bracket
    STUD, (1.5 In.), Mounting Bracket
  • 20
    23-57369 SPACER, Mounting Bracket Stud
    SPACER, Mounting Bracket Stud
  • 21
    12-20572 WASHER, (.390 x .750 x .093), Mounting Bracket Stud
    WASHER, (.390 x .750 x .093), Mounting Bracket Stud
  • 22
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 23
    11-46335 NUT
    NUT
  • 24
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 25
    13-26996 LOCKWASHER, (#10) Stainless Steel, Circuit Breaker Terminal
    LOCKWASHER, (#10) Stainless Steel, Circuit Breaker Terminal
  • 26
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 27
    10-45862 SCREW, (#10-32 x .875), Circuit Breaker
    SCREW, (#10-32 x .875), Circuit Breaker
  • 28
    10-45218 SCREW, (#10-32 x .380), Insulator
    SCREW, (#10-32 x .380), Insulator
  • 29
    12-56681 WASHER, (.203 x .500 x .032), Circuit Breaker Screw
    WASHER, (.203 x .500 x .032), Circuit Breaker Screw
  • 30
    11-46438 NUT, (#10-32), Insulator Screw
    NUT, (#10-32), Insulator Screw
  • 31
    85-96819T INSULATOR, Circuit Breaker
    INSULATOR, Circuit Breaker
  • 32
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 33
    10-96138 SCREW, (1/4-28 x 5/8), Starter Solenoid
    SCREW, (1/4-28 x 5/8), Starter Solenoid
  • 34
    11-20088 NUT, Starter Solenoid Screw
    NUT, Starter Solenoid Screw
  • 35
    13-26992 LOCKWASHER, (.250) Stainless Steel, Starter Solenoid Terminal
    LOCKWASHER, (.250) Stainless Steel, Starter Solenoid Terminal
  • 36
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 37
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 38
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 39
    10-62568 SCREW, (#10-16 x .375), Terminal Block Leads
    SCREW, (#10-16 x .375), Terminal Block Leads
  • 40
    10-22028 SCREW, (#10-32 x .50), Terminal Block
    SCREW, (#10-32 x .50), Terminal Block
  • 41
    11-46438 NUT, (#10-32), Terminal Block Screw
    NUT, (#10-32), Terminal Block Screw
  • 42
    15247T02 IGNITION AMPLIFIER ASSEMBLY
    IGNITION AMPLIFIER ASSEMBLY
  • 43
    10-76596 SCREW, (.250-20 x 1.250), Amplifier
    SCREW, (.250-20 x 1.250), Amplifier
  • 44
    13-26992 LOCKWASHER, (.250) Stainless Steel, Amplifier Screw
    LOCKWASHER, (.250) Stainless Steel, Amplifier Screw
  • 45
    23-92152T SPACER, (.27 x .75 x .38), Amplifier Screw
    SPACER, (.27 x .75 x .38), Amplifier Screw
  • 46
    125001 PLATE, Ignition Amplifier
    Use 7/8 Inch Screw
    PLATE, Ignition Amplifier
    Use 7/8 Inch Screw
  • 46
    125001 PLATE, Ignition Amplifier
    Use 3/4 Inch Screw
    PLATE, Ignition Amplifier
    Use 3/4 Inch Screw
  • 47
    10-28668 SCREW, (.250-20 x .875) Stainless Steel, Amplifier Plate
    Use 7/8 Inch Screw
    SCREW, (.250-20 x .875) Stainless Steel, Amplifier Plate
    Use 7/8 Inch Screw
  • 47
    10-49668 SCREW, (.250-20 x .750), Amplifier Plate
    Use 3/4 Inch Screw
    SCREW, (.250-20 x .750), Amplifier Plate
    Use 3/4 Inch Screw
  • 48
    13-26992 LOCKWASHER, (.250) Stainless Steel, Amplifier Plate Screw
    LOCKWASHER, (.250) Stainless Steel, Amplifier Plate Screw
