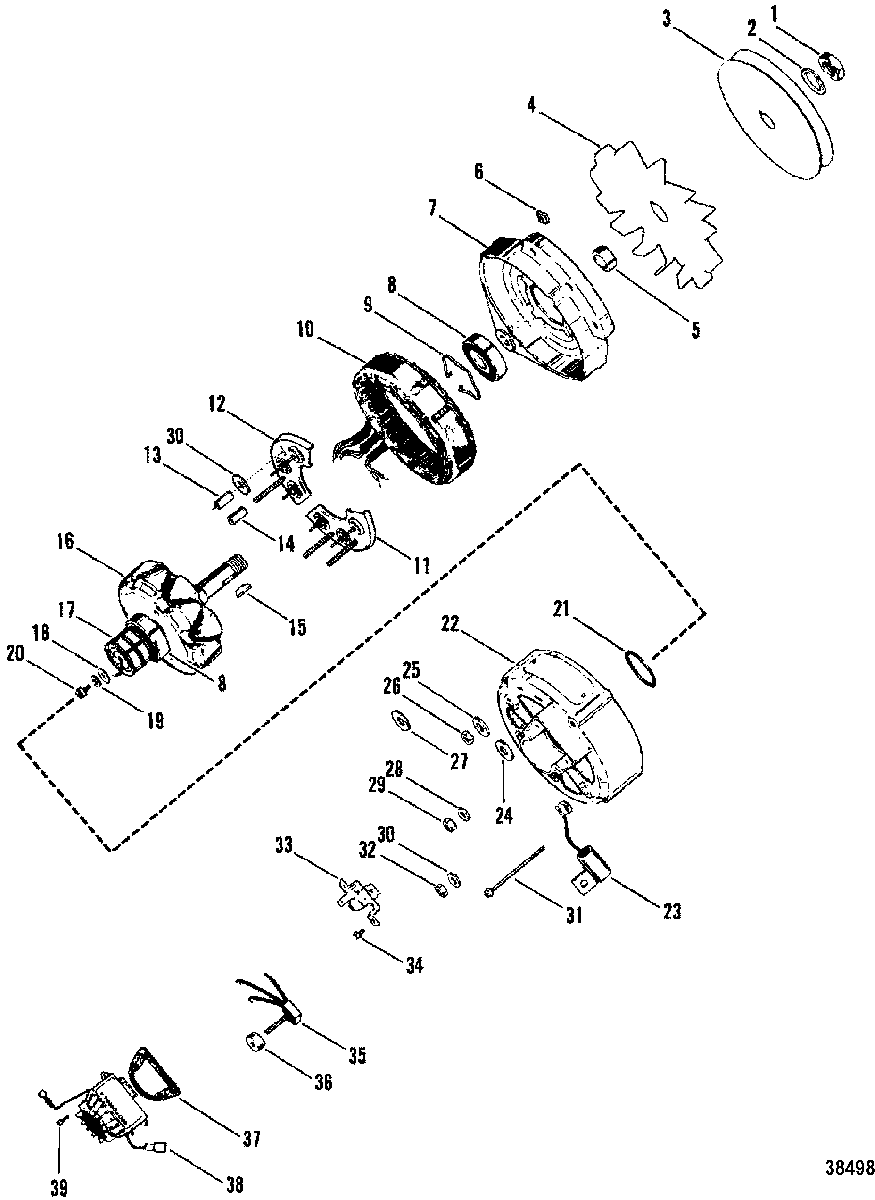

Alternator(MOTOROLA) для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • -
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
    ALTERNATOR ASSEMBLY, (55 Ampere)
  • 1
    390-7027 NUT, Fan & Pulley to Rotor
    NUT, Fan & Pulley to Rotor
  • 2
    390-7033 LOCKWASHER
    LOCKWASHER
  • 3
    390-8637 PULLEY, Drive End Frame
    PULLEY, Drive End Frame
  • 4
    390-7004 FAN, Drive End Frame
    FAN, Drive End Frame
  • 5
    813969 SPACER, Fan to Drive End Frame
    SPACER, Fan to Drive End Frame
  • 6
    390-7028 NUT, Thru Bolt Attaching
    NUT, Thru Bolt Attaching
  • 7
    390-7000 COVER ASSEMBLY, Front
    COVER ASSEMBLY, Front
  • 8
    390-7005 BEARING, Ball, Drive End
    BEARING, Ball, Drive End
  • 9
    390-7006 RING, Drive End Ball Bearing
    RING, Drive End Ball Bearing
  • 10
    390-8636 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 11
    390-7009 DIODE, Negative
    DIODE, Negative
  • 12
    390-7010 HEAT SINK, Positive
    HEAT SINK, Positive
  • 13
    390-7020 SLEEVE, Insulator
    SLEEVE, Insulator
  • 14
    390-7018 SLEEVE, Insulator
    SLEEVE, Insulator
  • 15
    390-7034 KEY, Rotor
    KEY, Rotor
  • 16
    390-8635 ROTOR ASSEMBLY
    ROTOR ASSEMBLY
  • 17
    390-7014 SLIP RING
    SLIP RING
  • 18
    390-7206 WASHER, Rotor Screw
    WASHER, Rotor Screw
  • 19
    390-7207 LOCKWASHER, Rotor Screw
    LOCKWASHER, Rotor Screw
  • 20
    390-7029 SCREW, (5/8 In.), Rotor Shaft
    SCREW, (5/8 In.), Rotor Shaft
  • 21
    390-7007 RETAINER, Rotor Shaft Bearing
    RETAINER, Rotor Shaft Bearing
  • 22
    390-7003 HOUSING, Rear
    HOUSING, Rear
  • 23
    813972 CONDENSER
    CONDENSER
  • 24
    390-7023 INSULATOR, Regulator Terminal Stud
    INSULATOR, Regulator Terminal Stud
  • 25
    390-7024 WASHER, Condensor Terminal Stud
    WASHER, Condensor Terminal Stud
  • 26
    390-7025 NUT, Terminal Stud
    NUT, Terminal Stud
  • 27
    390-7208 WASHER
    WASHER
  • 28
    390-7032 LOCKWASHER
    LOCKWASHER
  • 29
    390-7026 NUT, Terminal Attaching
    NUT, Terminal Attaching
  • 30
    390-7022 WASHER, Condensor Terminal Stud
    WASHER, Condensor Terminal Stud
  • 31
    390-8638 THRU BOLT
    THRU BOLT
  • 32
    390-7021 NUT, Condensor Terminal Attaching
    NUT, Condensor Terminal Attaching
  • 33
    390-7011 HOLDER ASSEMBLY, Brush
    HOLDER ASSEMBLY, Brush
  • 34
    390-7030 SCREW, (1/2 In.), Brush Holder
    SCREW, (1/2 In.), Brush Holder
  • 35
    390-7008 DIODE TRIO
    DIODE TRIO
  • 36
    390-7019 SPACER, Diode Trio
    SPACER, Diode Trio
  • 37
    390-7013 GASKET, Voltage Regulator
    GASKET, Voltage Regulator
  • 38
    808534T REGULATOR, Voltage
    REGULATOR, Voltage
  • 39
    390-7015 SCREW, Voltage Regulator Attaching
    SCREW, Voltage Regulator Attaching
