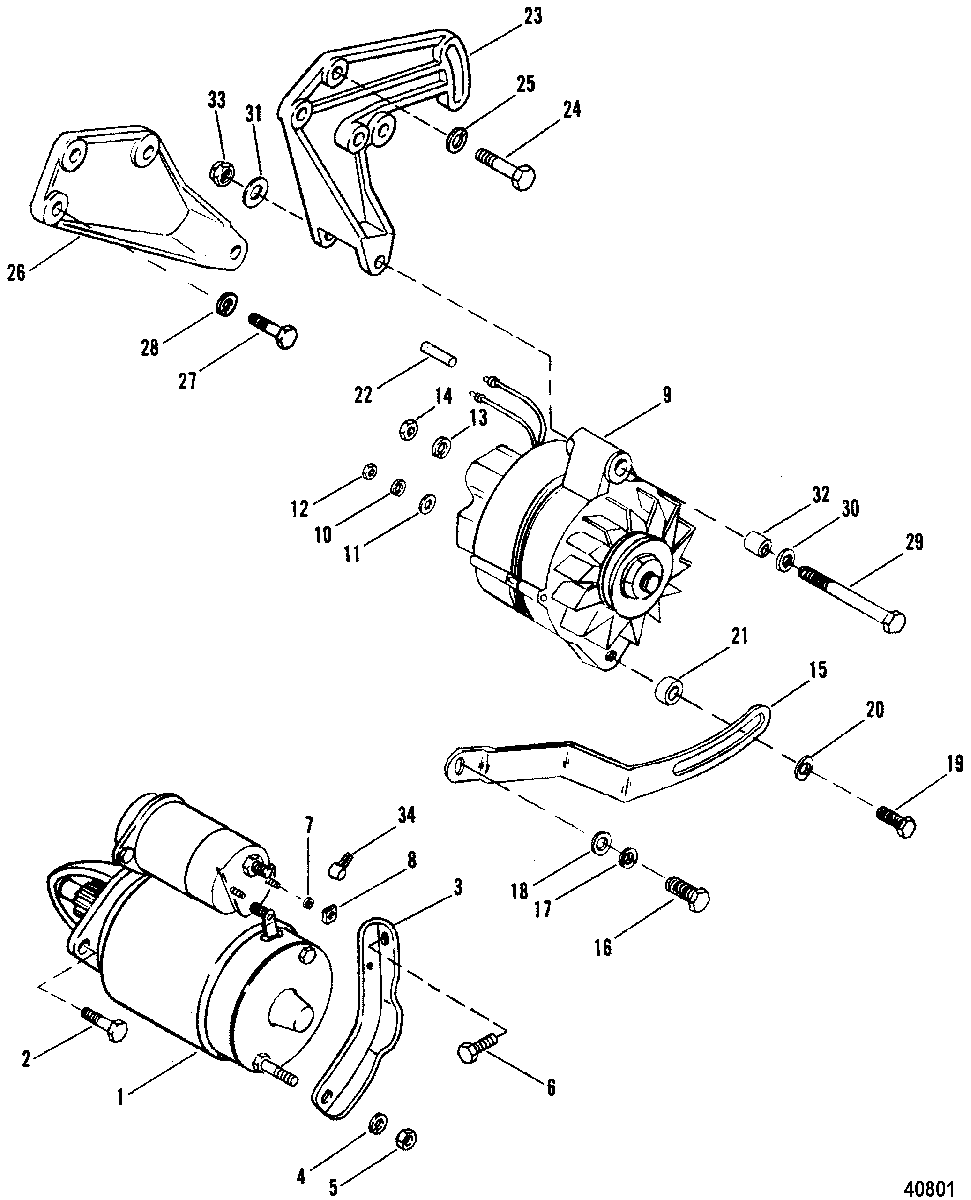

Starter Motor and Alternator для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-94435001 BOLT, (.375-16 x 4.600), Starter Motor to Cylinder Block
    BOLT, (.375-16 x 4.600), Starter Motor to Cylinder Block
  • 3
    12404 BRACE, Starter Motor
    BRACE, Starter Motor
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 6
    10-35765A1 SCREW, (5/8), Brace to Engine
    SCREW, (5/8), Brace to Engine
  • 7
    13-26995 LOCKWASHER, (#8) Stainless Steel, Starter Terminal
    LOCKWASHER, (#8) Stainless Steel, Starter Terminal
  • 8
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 9
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
    ALTERNATOR ASSEMBLY, (55 Ampere)
  • 10
    13-26996 LOCKWASHER, (#10) Stainless Steel, Alternator Terminal
    LOCKWASHER, (#10) Stainless Steel, Alternator Terminal
  • 11
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 12
    11-30968 NUT, (10-24), Alternator Terminal
    NUT, (10-24), Alternator Terminal
  • 13
    13-21272 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 14
    11-20890 NUT, (.250-20), Alternator Terminal
    NUT, (.250-20), Alternator Terminal
  • 15
    85013T BRACE, Alternator Adjusting
    BRACE, Alternator Adjusting
  • 16
    10-98261 SCREW, (.375-16 x .75), Alternator Brace
    SCREW, (.375-16 x .75), Alternator Brace
  • 17
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 19
    10-74824 SCREW, (.312-18 x 1.250), Alternator Brace
    SCREW, (.312-18 x 1.250), Alternator Brace
  • 20
    12-26168 WASHER
    WASHER
  • 21
    23-52095 SPACER, Alternator Brace Screw
    SPACER, Alternator Brace Screw
  • 22
    5790811 SLEEVE, (10.00 Inches Bulk), Alternator Ends
    SLEEVE, (10.00 Inches Bulk), Alternator Ends
  • 23
    87115A1 BRACKET, Alternator
    With Power Steering
    BRACKET, Alternator
    With Power Steering
  • 24
    10-37612 SCREW, (.375-16 x 1.250), Alternator Bracket
    With Power Steering
    SCREW, (.375-16 x 1.250), Alternator Bracket
    With Power Steering
  • 24
    10-34354 SCREW, (.375-16 x 1.50), Alternator Bracket
    With Power Steering
    SCREW, (.375-16 x 1.50), Alternator Bracket
    With Power Steering
  • 25
    13-35048 LOCKWASHER, (.375)
    With Power Steering
    LOCKWASHER, (.375)
    With Power Steering
  • 26
    93175T BRACKET, Alternator
    Without Power Steering
    BRACKET, Alternator
    Without Power Steering
  • 27
    10-37612 SCREW, (.375-16 x 1.250), Alternator Bracket
    Without Power Steering
    SCREW, (.375-16 x 1.250), Alternator Bracket
    Without Power Steering
  • 28
    13-35048 LOCKWASHER, (.375)
    Without Power Steering
    LOCKWASHER, (.375)
    Without Power Steering
  • 29
    10-48308 SCREW, (.375-24 x 3.750), Alternator
    SCREW, (.375-24 x 3.750), Alternator
  • 30
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 31
    12-34714 WASHER
    WASHER
  • 32
    23-33186 BUSHING, Alternator Bracket Screw
    BUSHING, Alternator Bracket Screw
  • 33
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 34
    85-79695T BOOT, Insulator - Black, Starter Terminal
    BOOT, Insulator - Black, Starter Terminal
