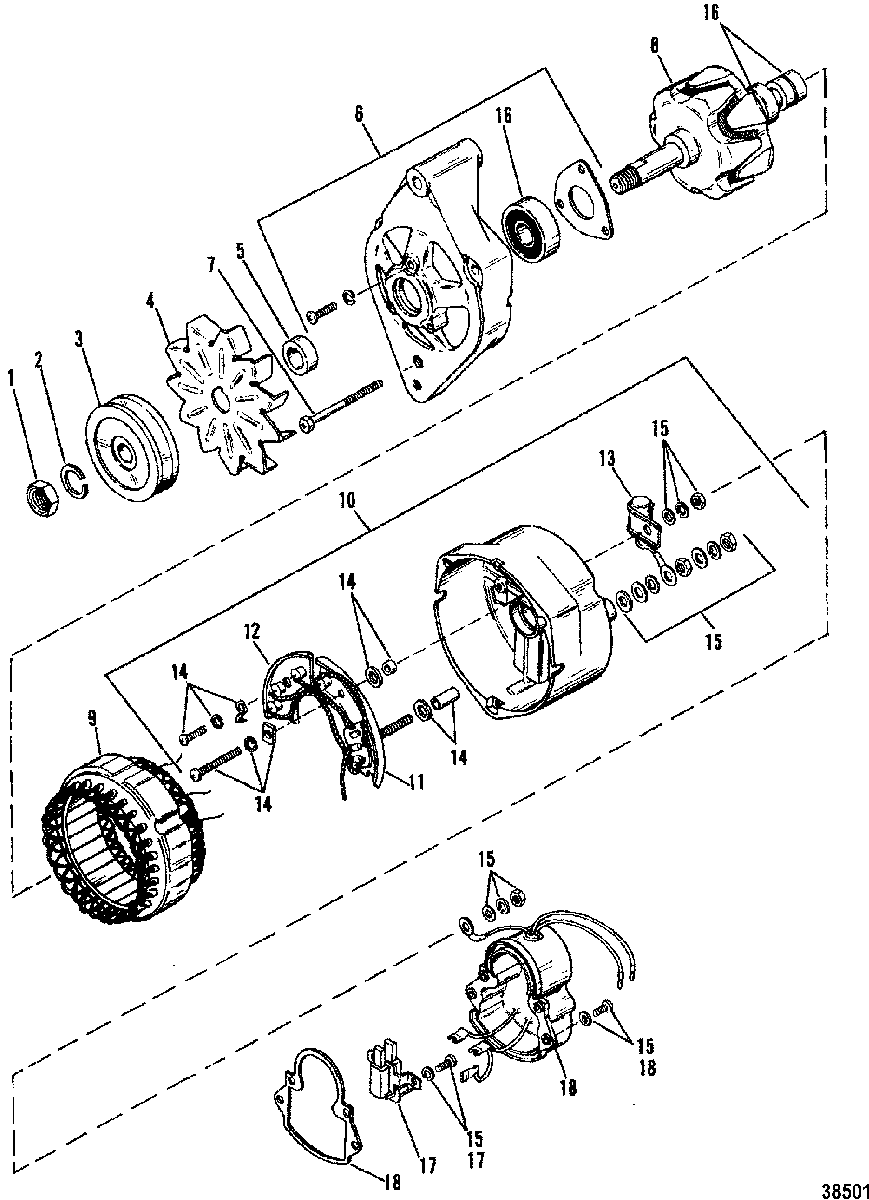

Alternator(MANDO) для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    11-809136 NUT
    NUT
  • 2
    13-42769 LOCKWASHER
    LOCKWASHER
  • 3
    809134 PULLEY
    PULLEY
  • 4
    42771 FAN
    FAN
  • 5
    23-42772 SPACER
    SPACER
  • 6
    42774 BRACKET, Front
    BRACKET, Front
  • 7
    10-42773 THRU BOLT
    THRU BOLT
  • 8
    42775 ROTOR
    (Includes Bearings)
    ROTOR
    (Includes Bearings)
  • 9
    42776 STATOR
    STATOR
  • 10
    42777 BRACKET, Rear
    BRACKET, Rear
  • 11
    42778 HEAT SINK (+)
    HEAT SINK (+)
  • 12
    42779 HEAT SINK (-)
    HEAT SINK (-)
  • 13
    42780 CONDENSER ASSEMBLY
    CONDENSER ASSEMBLY
  • 14
    42783 HARDWARE KIT, Internal
    HARDWARE KIT, Internal
  • 15
    42782 HARDWARE KIT, External
    HARDWARE KIT, External
  • 16
    42781 BEARING KIT
    BEARING KIT
  • 17
    42784 HOLDER KIT
    (Includes Springs & Brushes)
    HOLDER KIT
    (Includes Springs & Brushes)
  • 18
    42785 REGULATOR KIT
    REGULATOR KIT
