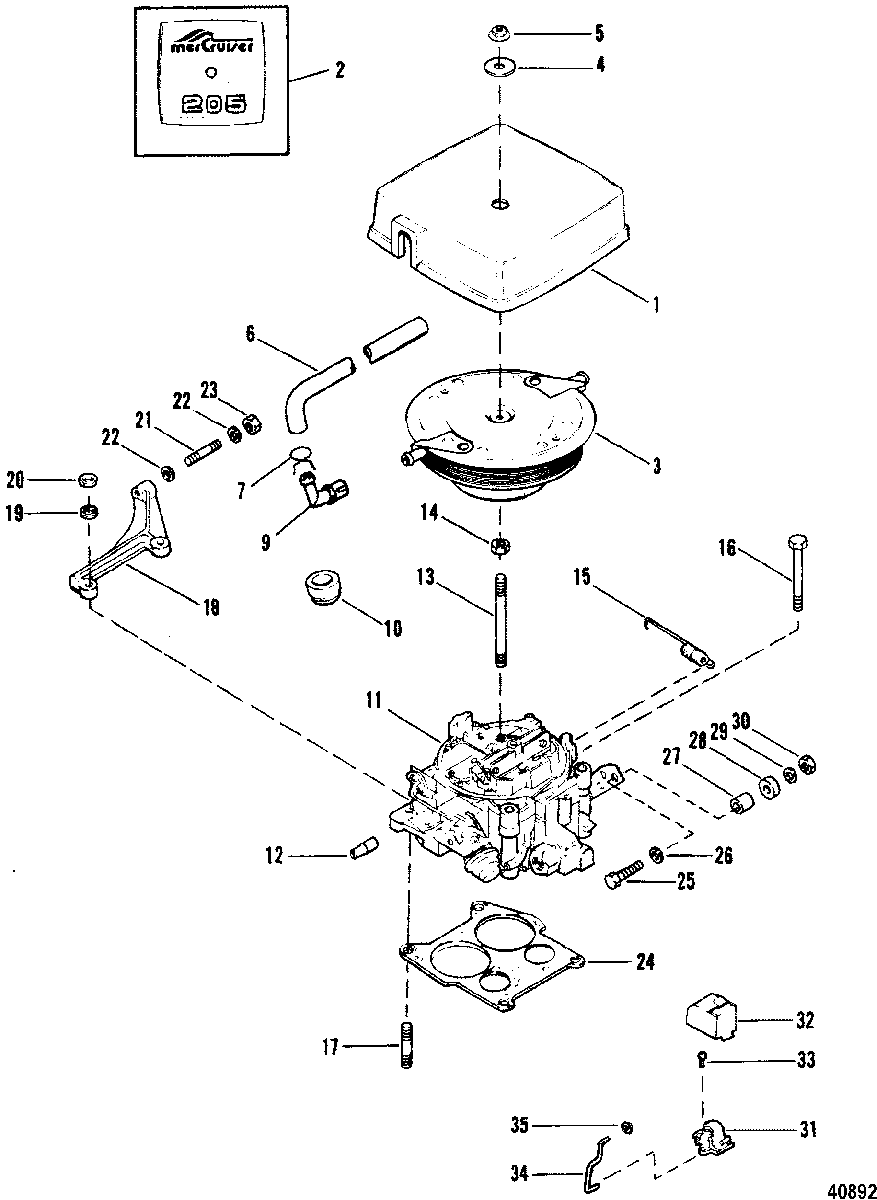

Carburetor & Throttle Linkage(205) для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    15414A7 COVER, Carburetor (TOP)
    COVER, Carburetor (TOP)
  • 2
    37-1372310 DECAL, Carburetor Cover (205 ALPHA ONE)
    DECAL, Carburetor Cover (205 ALPHA ONE)
  • 3
    805298A1 ARRESTOR ASSEMBLY, Flame, Carburetor
    ARRESTOR ASSEMBLY, Flame, Carburetor
  • 4
    12-86400 WASHER, Sealing
    WASHER, Sealing
  • 5
    11-826709109 NUT, (.250-28), Silencer Adaptor
    NUT, (.250-28), Silencer Adaptor
  • 6
    32-8M0062669 HOSE, Vent, Carburetor (11-1/4")
    HOSE, Vent, Carburetor (11-1/4")
  • 7
    54-53101 CLAMP, Vent Hose
    CLAMP, Vent Hose
  • 9
    97850T ELBOW, 90 Degree, Breathe, Vent Hose to Rocker Cover
    ELBOW, 90 Degree, Breathe, Vent Hose to Rocker Cover
  • 10
    23-8M0071559 GROMMET, Rocker Cover
    GROMMET, Rocker Cover
  • 11
    1347-804623R02 CARBURETOR ASSEMBLY (ROCHESTER)
    CARBURETOR ASSEMBLY (ROCHESTER)
  • 12
    22-97282 CONNECTOR, Carburetor
    CONNECTOR, Carburetor
  • 13
    16-91842 STUD, Flame Arrestor
    STUD, Flame Arrestor
  • 14
    11-8267139 NUT, Jam, Flame Arrestor
    NUT, Jam, Flame Arrestor
  • 15
    24-897454 SPRING, Throttle Return
    SPRING, Throttle Return
  • 16
    10-74822 SCREW, (.312-18 x 3.500), Carburetor
    SCREW, (.312-18 x 3.500), Carburetor
  • 17
    16-46857 STUD, (5/16 x 1-7/8), Carburetor
    STUD, (5/16 x 1-7/8), Carburetor
  • 18
    805359A02 BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 19
    12-20084 WASHER, (.328 x .562 x .062), Carburetor Stud
    WASHER, (.328 x .562 x .062), Carburetor Stud
  • 20
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 21
    16-38525 STUD, Throttle Cable
    STUD, Throttle Cable
  • 22
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 23
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 24
    27-524572 GASKET, Carburetor to Intake Manifold
    GASKET, Carburetor to Intake Manifold
  • 25
    10-98509 SCREW, Throttle Cable (1-1/8")
    SCREW, Throttle Cable (1-1/8")
  • 26
    12-847883 WASHER
    WASHER
  • 27
    23-57938 BUSHING, Throttle Cable Screw
    BUSHING, Throttle Cable Screw
  • 28
    23-34948 SPACER, Throttle Cable Screw
    SPACER, Throttle Cable Screw
  • 29
    12-56681 WASHER, (.203 x .500 x .032), Throttle Cable Screw
    WASHER, (.203 x .500 x .032), Throttle Cable Screw
  • 30
    11-8267086 NUT, (#10-32), Throttle Cable Screw
    NUT, (#10-32), Throttle Cable Screw
  • 31
    71464A01 CHOKE, Automatic, Carburetor
    CHOKE, Automatic, Carburetor
  • 32
    63922 COVER, Automatic Choke
    COVER, Automatic Choke
  • 33
    10-69235 SCREW, (5/8), Automatic Choke Thermostat
    SCREW, (5/8), Automatic Choke Thermostat
  • 34
    61112 ROD, Choke
    ROD, Choke
  • 35
    54-59989 CLIP, Automatic Choke Rod
    CLIP, Automatic Choke Rod
