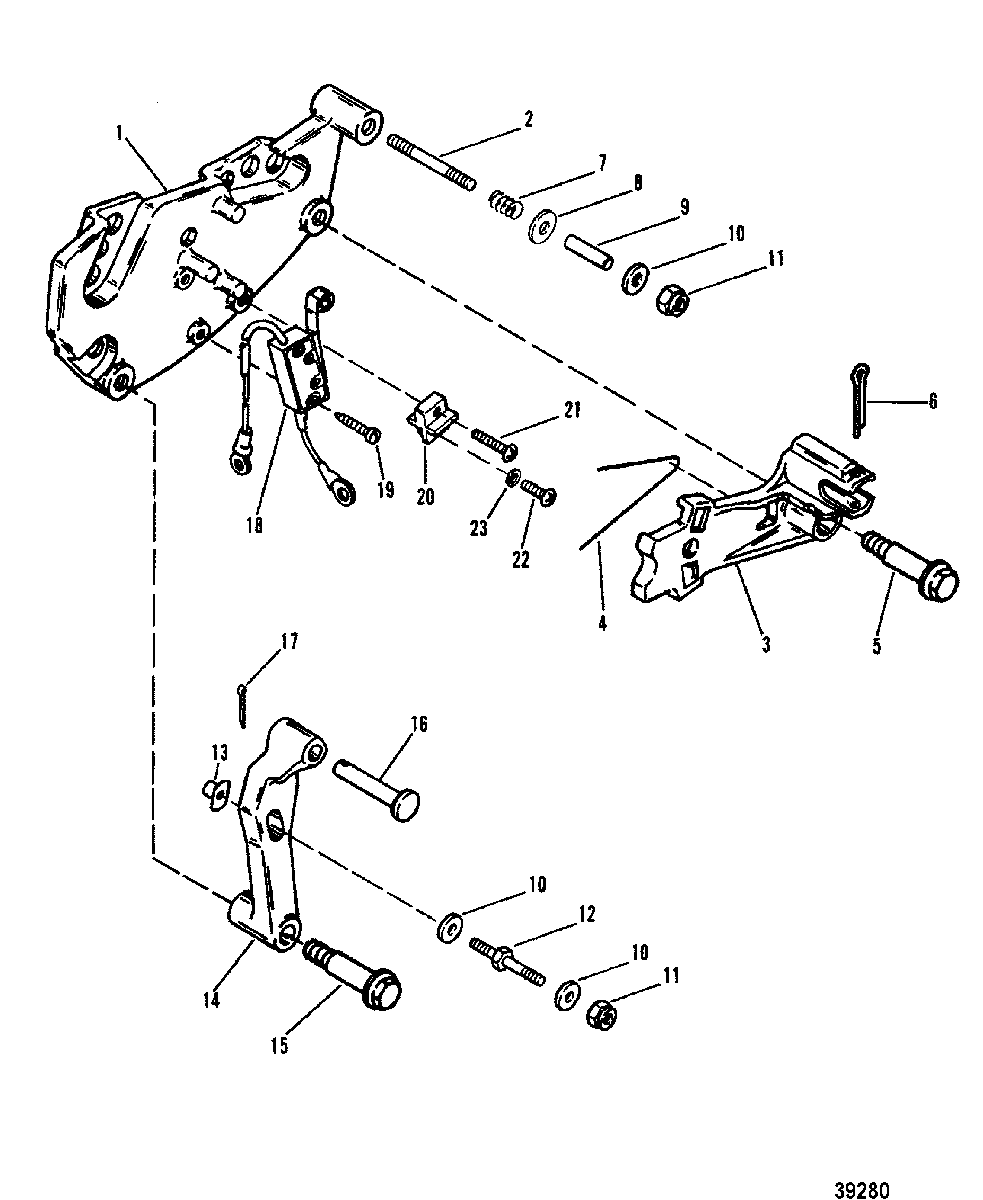

Shift Bracket(NEW DESIGN) для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    16-865154A02 STUD, Shift Cable
    STUD, Shift Cable
  • 3
    13051A4 LEVER ASSEMBLY, Actuating
    LEVER ASSEMBLY, Actuating
  • 4
    24-862850 SPRING, Actuating Lever
    SPRING, Actuating Lever
  • 5
    10-865148 SCREW, (.312-18 x 1.843), Shoulder, Lever
    SCREW, (.312-18 x 1.843), Shoulder, Lever
  • 6
    18-328571 COTTER PIN, Shift Cable Retaining
    COTTER PIN, Shift Cable Retaining
  • 7
    24-98880 SPRING, Shift Cable Stud
    SPRING, Shift Cable Stud
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel, Shift Bracket Stud
    WASHER, (.330 x .750 x .060) Stainless Steel, Shift Bracket Stud
  • 9
    16-865154A02 SPACER, Shift Bracket Stud
    SPACER, Shift Bracket Stud
  • 10
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, Shift Cable Stud
    WASHER, (.2656 x .625 x .0625) Stainless Steel, Shift Cable Stud
  • 11
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 12
    16-8M0113178 STUD, (.250-28 x 2.00), Shift Cable
    STUD, (.250-28 x 2.00), Shift Cable
  • 13
    11-63341 TEE NUT, Shift Cable Stud
    TEE NUT, Shift Cable Stud
  • 14
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 15
    10-865148 SCREW, (.312-18 x 1.843), Shoulder, Shift Lever
    SCREW, (.312-18 x 1.843), Shoulder, Shift Lever
  • 16
    17-68402 PIN, (.250 x 1.13), Shift Lever
    PIN, (.250 x 1.13), Shift Lever
  • 17
    18-210711 COTTER PIN, Shift Lever
    COTTER PIN, Shift Lever
  • 18
    39670A28 SWITCH ASSEMBLY, Cut-Out
    SWITCH ASSEMBLY, Cut-Out
  • 19
    10-30902 SCREW, (#6-32 x .750), Switch to Shift Bracket
    SCREW, (#6-32 x .750), Switch to Shift Bracket
  • 20
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 21
    10-96113 SCREW, (#10-32 x .880) Stainless Steel, Terminal Block
    SCREW, (#10-32 x .880) Stainless Steel, Terminal Block
  • 22
    10-73287 SCREW, (#10-32 x .380), Terminal Block
    SCREW, (#10-32 x .380), Terminal Block
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
