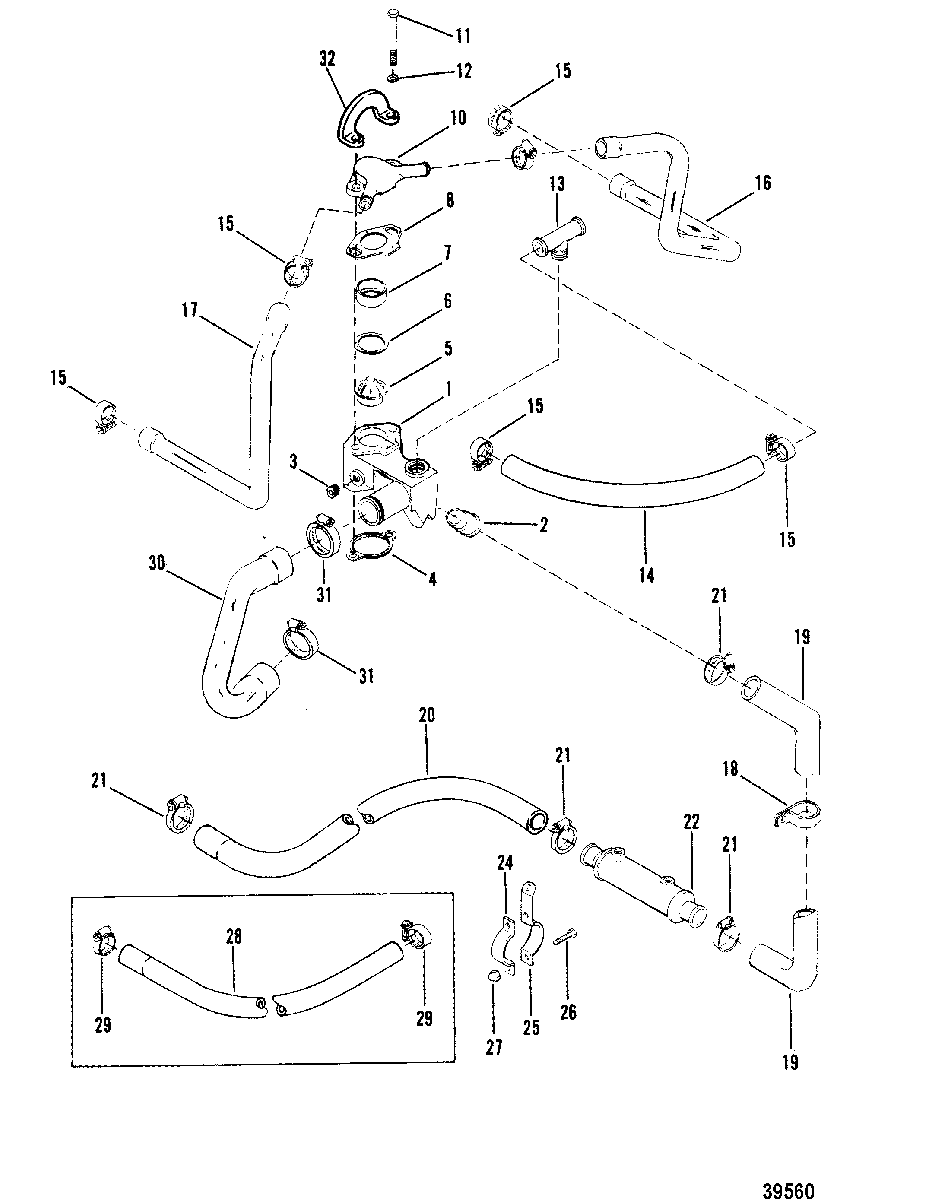

Standard Cooling System для Mercruiser - 185 (2 BBL.) GM 262 V-6 1985-1987 0A331455 THRU 0B527954

  • №
    Артикул
    Название
  • 1
    87290A4 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    23-47511 SLEEVE, Thermostat Housing
    SLEEVE, Thermostat Housing
  • 3
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 4
    27-530451 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 5
    8M0089715 THERMOSTAT, (140 Degrees)
    THERMOSTAT, (140 Degrees)
  • 6
    27-47510 GASKET, Thermostat
    GASKET, Thermostat
  • 7
    23-47508T SLEEVE, Thermostat
    SLEEVE, Thermostat
  • 8
    27-41812 GASKET, Thermostat Cover
    GASKET, Thermostat Cover
  • 10
    47441A1 COVER, Thermostat
    COVER, Thermostat
  • 11
    10-60410 SCREW, (4.25 Inches), Thermostat Housing
    SCREW, (4.25 Inches), Thermostat Housing
  • 11
    10-48130 SCREW, (.375-16 x 4.500), Thermostat Housing
    With Lifting Eye
    SCREW, (.375-16 x 4.500), Thermostat Housing
    With Lifting Eye
  • 12
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 13
    22-98477A2 VALVE ASSEMBLY, Thermostat Housing
    VALVE ASSEMBLY, Thermostat Housing
  • 14
    32-8M0062614 HOSE, (48.00 Inches Bulk), Tee to Exhaust Elbows (17")
    HOSE, (48.00 Inches Bulk), Tee to Exhaust Elbows (17")
  • 15
    54-815504220 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 16
    32-160211 HOSE, Thermostat Cover to Exhaust Manifold
    PORT
    HOSE, Thermostat Cover to Exhaust Manifold
    PORT
  • 17
    32-41940 HOSE, Thermostat Cover to Exhaust Manifold
    STARBOARD
    HOSE, Thermostat Cover to Exhaust Manifold
    STARBOARD
  • 18
    54-47715 CLIP, Hose Attaching
    CLIP, Hose Attaching
  • 19
    32-88794 HOSE, Thermostat Housnig to Fluid Cooler
    With Power Steering
    HOSE, Thermostat Housnig to Fluid Cooler
    With Power Steering
  • 20
    32-41642A3 HOSE, FLUID COOLER (3/4" I.D.)
    With Power Steering
    HOSE, FLUID COOLER (3/4" I.D.)
    With Power Steering
  • 21
    54-815504220 CLAMP, HOSE ATTACHING
    With Power Steering
    CLAMP, HOSE ATTACHING
    With Power Steering
  • 22
    99356A2 COOLER ASSEMBLY, POWER STEERING FLUID
    With Power Steering
    COOLER ASSEMBLY, POWER STEERING FLUID
    With Power Steering
  • 24
    56328A1 BRACKET, FLUID COOLER (SHORT)
    With Power Steering
    BRACKET, FLUID COOLER (SHORT)
    With Power Steering
  • 25
    63820F3 BRACKET, FLUID COOLER (LONG)
    With Power Steering
    BRACKET, FLUID COOLER (LONG)
    With Power Steering
  • 26
    10-60300 SCREW, (.250-28 x .750), Fluid Cooler Bracket
    With Power Steering
    SCREW, (.250-28 x .750), Fluid Cooler Bracket
    With Power Steering
  • 27
    11-30506 NUT, (.250-28)
    With Power Steering
    NUT, (.250-28)
    With Power Steering
  • 28
    32-98033A3 HOSE, Thermostat Housing (3/4" I.D.)
    Without Power Steering
    HOSE, Thermostat Housing (3/4" I.D.)
    Without Power Steering
  • 29
    54-815504220 CLAMP, Hose Attaching
    Without Power Steering
    CLAMP, Hose Attaching
    Without Power Steering
  • 30
    32-861590A05 HOSE, Molded, Thermostat Housing to Water Pump
    HOSE, Molded, Thermostat Housing to Water Pump
  • 31
    54-815504232 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 32
    12552 LIFTING EYE (USE 10-48130)
    LIFTING EYE (USE 10-48130)
