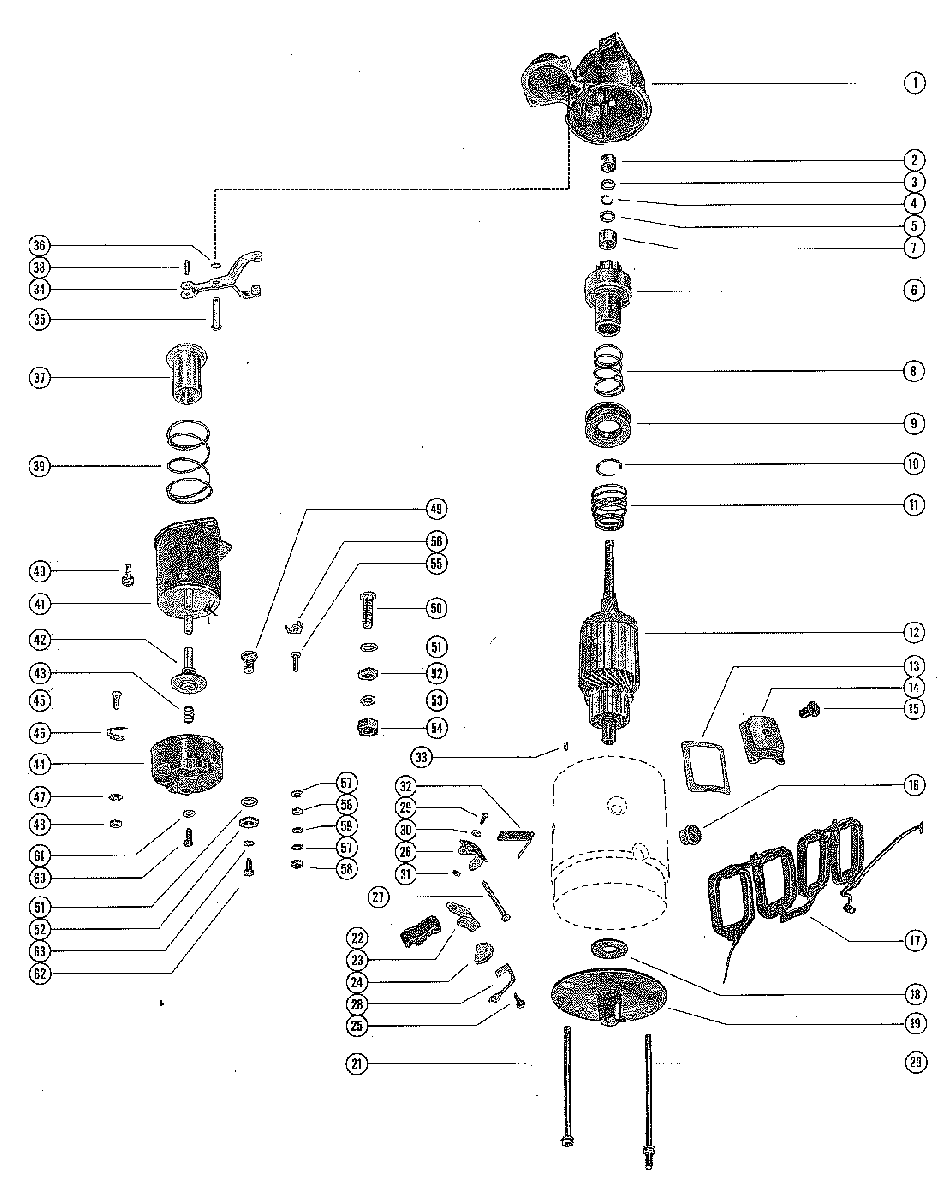

STARTER MOTOR ASSEMBLY для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETE
    STARTER MOTOR ASSEMBLY, COMPLETE
  • 1
    46890 HOUSING, DRIVE END
    HOUSING, DRIVE END
  • 2
    23-33278 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST-DRIVE END HOUSING
    COLLAR, THRUST-DRIVE END HOUSING
  • 4
    53-33290 RING, RETAINING-PINION STOP COLLAR
    RING, RETAINING-PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP-DRIVE END HOUSING 1
    COLLAR, PINION STOP-DRIVE END HOUSING 1
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH-ARMATURE
    DRIVE ASSEMBLY, CLUTCH-ARMATURE
  • 7
    23-33369 BUSHING, GEAR END-CLUTCH DRIVE
    BUSHING, GEAR END-CLUTCH DRIVE
  • 8
    24-33368 SPRING, CLUTCH DRIVE
    SPRING, CLUTCH DRIVE
  • -
    33366 COLLAR, CLUTCH DRIVE
    COLLAR, CLUTCH DRIVE
  • 10
    33367 LOCKWIRE, COLLAR AND SPRING RETAINING
    LOCKWIRE, COLLAR AND SPRING RETAINING
  • 11
    823426A1 SPRING, SHIFT LEVER TENSION-ARMATURE
    SPRING, SHIFT LEVER TENSION-ARMATURE
  • 12
    33320 ARMATURE
    ARMATURE
  • 13
    33293 INSULATION, POLE SHOE TO FIELD COIL
    INSULATION, POLE SHOE TO FIELD COIL
  • 14
    33282 SHOE, POLE-FIELD COIL
    SHOE, POLE-FIELD COIL
  • 15
    10-60684 SCREW, POLE SHOE TO FIELD COIL
    SCREW, POLE SHOE TO FIELD COIL
  • 16
    25-33302 GROMMET, FIELD COIL-FIELD FRAME
    GROMMET, FIELD COIL-FIELD FRAME
  • 17
    46891 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 18
    12-33258 WASHER, LEATHER-COMMUTATOR END FRAME
    WASHER, LEATHER-COMMUTATOR END FRAME
  • 19
    79211 FRAME COMMUTATOR END-LOWER
    FRAME COMMUTATOR END-LOWER
  • 20
    10-33296 BOLT,THRU-COMMUTATOR END FRAME TO DRIVE END HOUSING
    BOLT,THRU-COMMUTATOR END FRAME TO DRIVE END HOUSING
  • 21
    10-33286 BOLT, THRU-COMMUTATIR END FRAME TO DRIVE END HOUSING
    BOLT, THRU-COMMUTATIR END FRAME TO DRIVE END HOUSING
  • 22
    33284 HOLDER, INSULATED-FIELD FRAME BRUSH
    HOLDER, INSULATED-FIELD FRAME BRUSH
  • 23
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 24
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 25
    10-48409 SCREW, BRUSH LEAD TO FIELD FRAME BRUSH
    SCREW, BRUSH LEAD TO FIELD FRAME BRUSH
  • 26
    33294 SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
    SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
  • 27
    17-33280 PIN, GROUND AND INSULATED HOLDER TO SUPPORT
    PIN, GROUND AND INSULATED HOLDER TO SUPPORT
  • 28
    33294 LEAD, FIELD FRAME BRUSH
    LEAD, FIELD FRAME BRUSH
  • 29
    10-33250 SCREW, SUPPORT TO FIELD FRAME
    SCREW, SUPPORT TO FIELD FRAME
  • 30
    13-26996 LOCKWASHER, SUPPORT SCREW
    LOCKWASHER, SUPPORT SCREW
  • ..NUT,
    11-30968 PORT SCREW
    PORT SCREW
  • 32
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 33
    17-33257 PIN, DOWEL-FIELD FRAME TO DRIVE END HOUSING
    PIN, DOWEL-FIELD FRAME TO DRIVE END HOUSING
  • 34
    33297 LEVER, SHIFT-DRIVE END HOUSING
    LEVER, SHIFT-DRIVE END HOUSING
  • 35
    33310 SHAFT, SHIFT LEVER TO DRIVE END HOUDING
    SHAFT, SHIFT LEVER TO DRIVE END HOUDING
  • 36
    53-33354 RING, RETAINING-SHIFT LEVER TO DRIVE END HOUSING SHAFT
    RING, RETAINING-SHIFT LEVER TO DRIVE END HOUSING SHAFT
  • 37
    33317 PLUNGER, SHIFT LEVER-SOLENOID SWITCH
    PLUNGER, SHIFT LEVER-SOLENOID SWITCH
  • 38
    17-24198 PIN,PLUNGER TO SHIFT LEVER
    PIN,PLUNGER TO SHIFT LEVER
  • 39
    24-46889 SPRING, PLUNGER RETURN-SOLENOID SWITCH
    SPRING, PLUNGER RETURN-SOLENOID SWITCH
  • 40
    10-28713 SCREW, SOLENOID SWITCH TO DRIVE END HOUSING
    SCREW, SOLENOID SWITCH TO DRIVE END HOUSING
  • 41
    33261 SOLENOID SWITCH ASSEMBLY
    SOLENOID SWITCH ASSEMBLY
  • 42
    33261 CONTACT AND PUSH ROD ASSEMBLY
    CONTACT AND PUSH ROD ASSEMBLY
  • 43
    24-33265 SPRING, CONTACT AND PUSH ROD TENSION
    SPRING, CONTACT AND PUSH ROD TENSION
  • 44
    33303 COVER, SOLENOID SWITCH
    COVER, SOLENOID SWITCH
  • 45
    16-33304 STUD, RESISTOR TERMINAL (10-32)
    STUD, RESISTOR TERMINAL (10-32)
  • 46
    33305 CONTACT, RESISTOR TERMINAL STUD
    CONTACT, RESISTOR TERMINAL STUD
  • 47
    13-26996 LOCKWASHER, RESISTOR TERMINAL STUD (#10)
    LOCKWASHER, RESISTOR TERMINAL STUD (#10)
  • 48
    11-68219 NUT,RESITOR TERMINAL STUD (10-32)
    NUT,RESITOR TERMINAL STUD (10-32)
  • --
    13-26995 LOCKWASHER, SWITCH TERMINAL STUD (#8)
    LOCKWASHER, SWITCH TERMINAL STUD (#8)
  • --
    11-21923T NUT,SWITCH TERMINAL STUD (8-32)
    NUT,SWITCH TERMINAL STUD (8-32)
  • 49
    33294 STUD, MOTOR TERMINAL (3/8-16)
    STUD, MOTOR TERMINAL (3/8-16)
  • 50
    16-33288 STUD, BATTERY TERMINAL (3/8-16)
    STUD, BATTERY TERMINAL (3/8-16)
  • 51
    12-33289 WASHER,BATTERY AND MOTOR TERMINAL STUD (3/8)
    WASHER,BATTERY AND MOTOR TERMINAL STUD (3/8)
  • 52
    11-32219 NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)
    NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)
  • 53
    13-35048 LOCKWASHER, BATTERY TERMINAL STUD (3/8)
    LOCKWASHER, BATTERY TERMINAL STUD (3/8)
  • 54
    11-32219 NUT, BATTERY TERMINAL STUD (3/8-16)
    NUT, BATTERY TERMINAL STUD (3/8-16)
  • 55
    16-33262 STUD, SWITCH TERMINAL (8-32)
    STUD, SWITCH TERMINAL (8-32)
  • 56
    54-33307 CLIP, SWITCH TERMINAL STUD
    CLIP, SWITCH TERMINAL STUD
  • 57
    12-33279 WASHER, PLASTIC-SWITCH TERMINAL STUD (#8)
    WASHER, PLASTIC-SWITCH TERMINAL STUD (#8)
  • 58
    11-68219 NUT,SWITCH TERMINAL STUD (8-32)
    NUT,SWITCH TERMINAL STUD (8-32)
  • 59
    13-26995 LOCKWASHER, SWITCH TERMINAL STUD (#8)
    LOCKWASHER, SWITCH TERMINAL STUD (#8)
  • 60
    10-33248 SCREW, COVER TO SOLENOID SWITCH
    SCREW, COVER TO SOLENOID SWITCH
  • 61
    12-33279 WASHER, PLASTIC-COVER SCREW
    WASHER, PLASTIC-COVER SCREW
  • 62
    10-48266 SCREW,FIELD COIL LEAD TO SOLENOID SWITCH
    SCREW,FIELD COIL LEAD TO SOLENOID SWITCH
  • 63
    13-26995 LOCKWASHER, FIELD COIL LEAD SCREW
    LOCKWASHER, FIELD COIL LEAD SCREW
