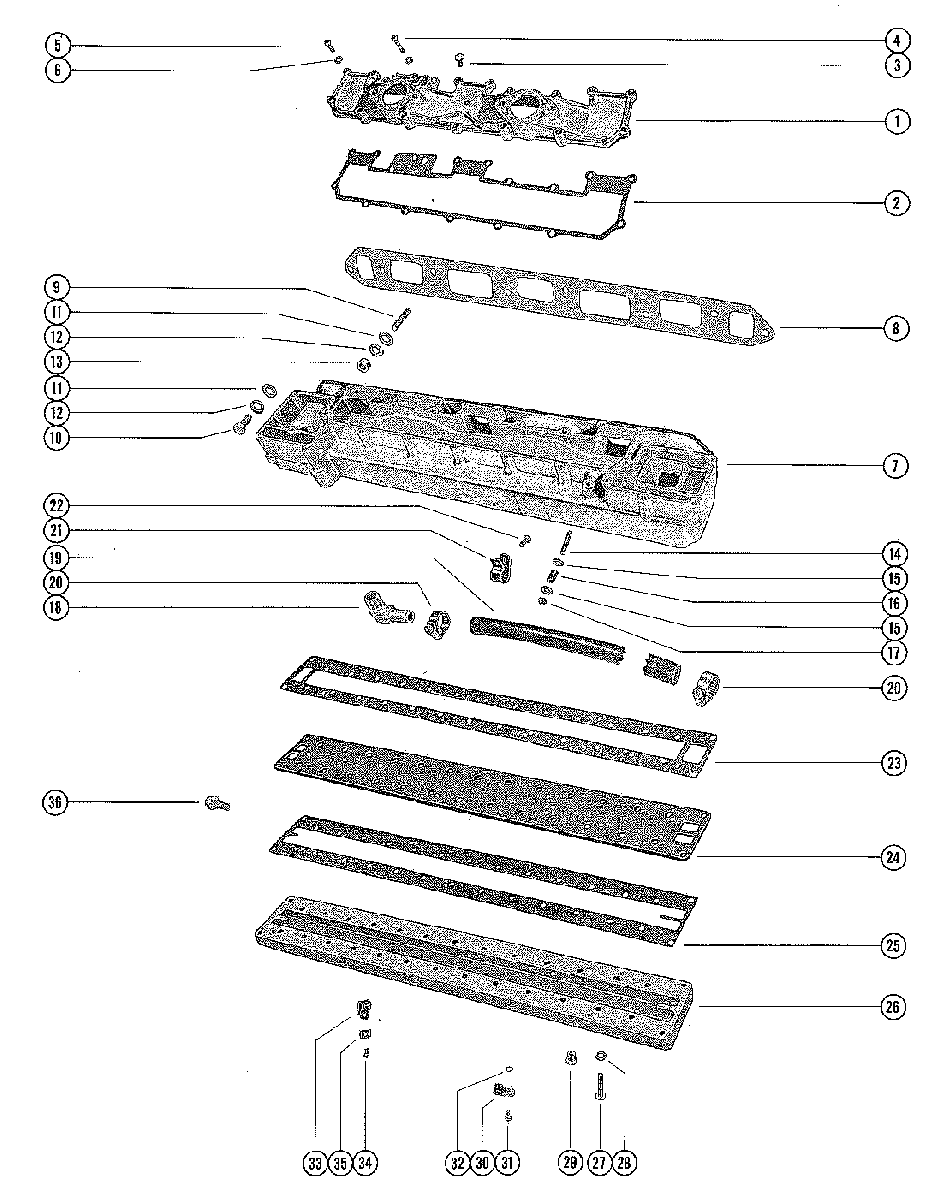

MANIFOLD BODY для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • 1
    33086 COBER INTAKE MANIFOLD
    COBER INTAKE MANIFOLD
  • 2
    27-39256 GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 3
    22-328022 PLUG, PIPE - INTKE MANIFOLD COVER
    PLUG, PIPE - INTKE MANIFOLD COVER
  • 4
    10-86885 SCREW,INTAKE MANIFOLD COVER TO MANIFOLD BODY(1 5/8")
    SCREW,INTAKE MANIFOLD COVER TO MANIFOLD BODY(1 5/8")
  • 5
    10-35582 SCREW, INTAKE MANIFOLD COVER TO INTAKE MANIFOLD BODY
    SCREW, INTAKE MANIFOLD COVER TO INTAKE MANIFOLD BODY
  • 6
    13-26992 LOCKWASHER, INTAKE MANIFOLD COVERR SCREW
    LOCKWASHER, INTAKE MANIFOLD COVERR SCREW
  • 7
    58759A11 BODY, EXHAUST MANIFOLD - CYLINDER BLOCK
    BODY, EXHAUST MANIFOLD - CYLINDER BLOCK
  • 7
    58759A11 BODY, EXHAUST MANIFOLLD - CSYLINDER BLOCK
    BODY, EXHAUST MANIFOLLD - CSYLINDER BLOCK
  • 8
    27-46401 GASKET, MANIFOLD BODY TO CYLINDER BLOCK
    GASKET, MANIFOLD BODY TO CYLINDER BLOCK
  • 9
    16-20550 STUD, MANIFOLD BODY TO CYLINDER BL0CK
    STUD, MANIFOLD BODY TO CYLINDER BL0CK
  • 9
    16-49915 STUD, MANIFOLD BODY TO CYLINDER BLOCK
    STUD, MANIFOLD BODY TO CYLINDER BLOCK
  • 10
    10-21077 SCREW, MANIFOLD BODY TO CYLINDER BLOCK
    SCREW, MANIFOLD BODY TO CYLINDER BLOCK
  • 11
    12-20533 WASHER, MANIFOLD BODY STUD AND SCREW
    WASHER, MANIFOLD BODY STUD AND SCREW
  • 12
    13-35048 LOCKWASHER, MANIFOLD BODY STUDF AND SCREW
    LOCKWASHER, MANIFOLD BODY STUDF AND SCREW
  • 13
    11-46335 NUT, MANIFOLD BODY STUD
    NUT, MANIFOLD BODY STUD
  • 14
    16-728091 STUD, THROTTLE LEVER TO MANIFOLD BODY
    STUD, THROTTLE LEVER TO MANIFOLD BODY
  • 15
    12-69056 WASHER, THROTTLE LEVER STUD
    WASHER, THROTTLE LEVER STUD
  • 16
    27-19553 BUSHING, THROTTLE LEVER STUD
    BUSHING, THROTTLE LEVER STUD
  • 17
    11-826709109 NUT, THROTTLE LEVER STUD
    NUT, THROTTLE LEVER STUD
  • 18
    22-32715 ELBOW, WATER INLET HOSE - MANIFOLD BODY
    ELBOW, WATER INLET HOSE - MANIFOLD BODY
  • 19
    32-47642 HOSE,, WATER INLET - MANIFOLD BODY ELBOW TO DRIVE UNIT
    HOSE,, WATER INLET - MANIFOLD BODY ELBOW TO DRIVE UNIT
  • 20
    54-815504310 CLAMP, WATER HOSE TO MANIFOLD ELBOW AND DRIVE UNIT
    CLAMP, WATER HOSE TO MANIFOLD ELBOW AND DRIVE UNIT
  • 21
    54-33461 CLAMP, DRAIN HOSE TO MANIFOLD BODY
    CLAMP, DRAIN HOSE TO MANIFOLD BODY
  • 22
    10-72169 SCREW, DRAIN HOSE CLAMP TO MANIFOLD BODY
    SCREW, DRAIN HOSE CLAMP TO MANIFOLD BODY
  • 22
    10-32228 SCREW, DRAIN HOSE CLAMP TO MANIFOLKD BODY
    SCREW, DRAIN HOSE CLAMP TO MANIFOLKD BODY
  • 23
    27-33088 GASKET,BAFFLE PLATE TO MANIFOLD BODY
    GASKET,BAFFLE PLATE TO MANIFOLD BODY
  • 23
    27-35152 GASKET, BAFFLE PLATE TO ,MAINFOLD BODY
    GASKET, BAFFLE PLATE TO ,MAINFOLD BODY
  • 24
    33087 PLATE, BAFFLE - MANIFOLD BODY
    PLATE, BAFFLE - MANIFOLD BODY
  • 24
    35151T PLATE, BAFFLE - MANIFOLD BODY
    PLATE, BAFFLE - MANIFOLD BODY
  • 25
    27-33089 GASKET, EXHAUST MANIFOLD COVER TO BAFFLE PLATE
    GASKET, EXHAUST MANIFOLD COVER TO BAFFLE PLATE
  • 25
    27-35154 GASKET, ECHAUST MANIFOLD COVER TO BAFFLE PLATE
    GASKET, ECHAUST MANIFOLD COVER TO BAFFLE PLATE
  • 26
    33085 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 26
    35153 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 27
    10-69093 SCREW, COVER AND BAFFLE PLATE TO MANIFOLD BODY(1 1/2")
    SCREW, COVER AND BAFFLE PLATE TO MANIFOLD BODY(1 1/2")
  • 27
    10-35385 SCREW, COVER AND BAFFLE PLATE TO MANIFOLD BODY(1 3/4")
    SCREW, COVER AND BAFFLE PLATE TO MANIFOLD BODY(1 3/4")
  • 28
    13-26992 LOCKWASHER, COVER AND BAFFLE PLATE SCREW
    LOCKWASHER, COVER AND BAFFLE PLATE SCREW
  • 29
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
    PLUG, PIPE - EXHAUST MANIFOLD COVER
  • 30
    54-28938 CLAMP, WIRING HARNESS TO CYLINDER BLOCKS
    CLAMP, WIRING HARNESS TO CYLINDER BLOCKS
  • 31
    10-29199 SCREW, WIRING HARNESS CLAMP TO CYLINDER BLOCK
    SCREW, WIRING HARNESS CLAMP TO CYLINDER BLOCK
  • 32
    11-20890 NUT, WIRING HARNESS CLAMP SCREW
    NUT, WIRING HARNESS CLAMP SCREW
  • 33
    54-24836 CLIP, WIRING HARNESS TO EXHAUST MANIFOLD COVER
    CLIP, WIRING HARNESS TO EXHAUST MANIFOLD COVER
  • 33
    54-22740 CLIP, WIRING HARNESS TO EXHAUST MANIFOLD COVER
    CLIP, WIRING HARNESS TO EXHAUST MANIFOLD COVER
  • 34
    10-62568 SCREW, WIRING HARNESS CLIP TO EXHAUST MANIFOLD COVER
    SCREW, WIRING HARNESS CLIP TO EXHAUST MANIFOLD COVER
  • 34
    10-32228 SCREW,WIRING HARNESS CLIP TO EXHAUST MANIFOLD COVER
    SCREW,WIRING HARNESS CLIP TO EXHAUST MANIFOLD COVER
  • 35
    8M0084613 "D"WASHER, WIRING HARNESS CLIP SCREW
    "D"WASHER, WIRING HARNESS CLIP SCREW
  • 36
    10-25299 SCREW, WATER PUMP FLANGE(3/4")
    SCREW, WATER PUMP FLANGE(3/4")
