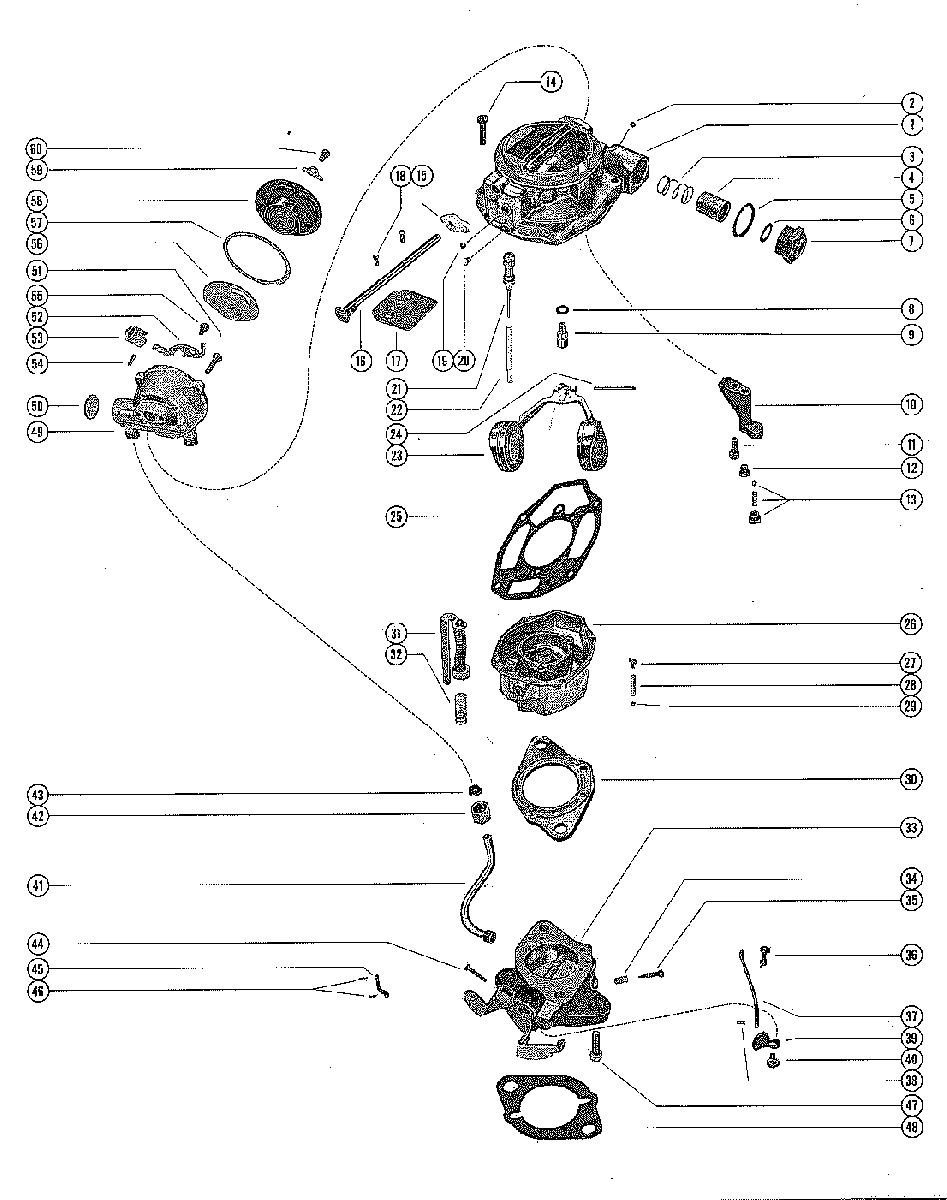

CARBURETOR ASSEMBLY для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • 1338-2161 CARBURETOR ASSEMBLY, COMPLETE(BC)
    CARBURETOR ASSEMBLY, COMPLETE(BC)
  • 1338-2166 CARBURETOR ASSEMBLY, COMPLETE(BC)
    CARBURETOR ASSEMBLY, COMPLETE(BC)
  • 1
    1338-2161 AIR HORN ASSEMBLY
    AIR HORN ASSEMBLY
  • 1
    1338-2166 AIR HORN ASSEMBLY
    AIR HORN ASSEMBLY
  • 2
    1397-2050 PLUG, AIR HORN
    PLUG, AIR HORN
  • 3
    24-33624 SPRING, FUEL INLET FILTER NUT - AIR HORN
    SPRING, FUEL INLET FILTER NUT - AIR HORN
  • 4
    1397-2150 FILTER,FUEL INLET - AIR HORN
    FILTER,FUEL INLET - AIR HORN
  • 5
    90-8M0143356 GASKET, FUEL INLET FILTER NUT - AIR HORN
    GASKET, FUEL INLET FILTER NUT - AIR HORN
  • 6
    90-8M0143356 GASKET FUEL INLET FILTER NUT - AIR HORN
    GASKET FUEL INLET FILTER NUT - AIR HORN
  • 7
    11-33631 NUT, FUEL INLET FILTER - AIR HORN
    NUT, FUEL INLET FILTER - AIR HORN
  • 8
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 9
    90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY, AIR HORN
    INLET NEEDLE AND SEAT ASSEMBLY, AIR HORN
  • 10
    1397-2192 MAIN WELL SUPPORT ASSEMBLY
    MAIN WELL SUPPORT ASSEMBLY
  • 10
    1397-2192 MAIN WELL SUPPORT ASSEMBLY
    MAIN WELL SUPPORT ASSEMBLY
  • 11
    10-33617 SCREW, MAIN WELL SUPPORT TO AIR HORN
    SCREW, MAIN WELL SUPPORT TO AIR HORN
  • 12
    1397-2447 JET, MAIN WELL SUPPORT(STANDARD)
    JET, MAIN WELL SUPPORT(STANDARD)
  • 12
    1397-2446 JET, MAIN WELL SUPPORT(STANDARD)
    JET, MAIN WELL SUPPORT(STANDARD)
  • 13
    90-8M0143356 POWER VALVE ASSEMBLY, MAIN WELL SUPPORT
    POWER VALVE ASSEMBLY, MAIN WELL SUPPORT
  • 14
    10-33622 SCRREW, AIR HORN TO FLOAT BOWL
    SCRREW, AIR HORN TO FLOAT BOWL
  • 15
    1397-2153 LEVER, CHOKE - CHOKE SHAFT
    LEVER, CHOKE - CHOKE SHAFT
  • 16
    1397-2157 CHOKE SHAFT ASSEMBLY
    CHOKE SHAFT ASSEMBLY
  • 17
    1397-2149 VALVE, CHOKE - CHOKE SHAFT
    VALVE, CHOKE - CHOKE SHAFT
  • 18
    10-33045 SCREW, CHOKE VALVE TO CHOKE SHAFT
    SCREW, CHOKE VALVE TO CHOKE SHAFT
  • 19
    1397-2141 PLUG, IDLE PASSAGE - OUTER (AIR H0RN)
    PLUG, IDLE PASSAGE - OUTER (AIR H0RN)
  • 20
    1397-2143 PLUG, IDLE PASSAGE - INNER (AIRE HORN)
    PLUG, IDLE PASSAGE - INNER (AIRE HORN)
  • 21
    1397-2148 PISTON, POWER - AIR HORN
    PISTON, POWER - AIR HORN
  • 22
    24-33618 SPRING, POWER PISTON
    SPRING, POWER PISTON
  • 22
    24-33618 SPRING, POWER PISTON
    SPRING, POWER PISTON
  • 23
    1397-2610 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 24
    17-33037 PIN, HINGE - FLOAT TO AIR HORN
    PIN, HINGE - FLOAT TO AIR HORN
  • 25
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 26
    1397-2164 FLOAT BOWL ASSEEMBLY
    FLOAT BOWL ASSEEMBLY
  • 27
    90-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL
    GUIDE, PUMP DISCHARGE - FLOAT BOWL
  • 28
    90-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL
    SPRING, PUMP DISCHARGE - FLOAT BOWL
  • 29
    90-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL
    BALL, PUMP DISCHARGE - FLOAT BOWL
  • 30
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 31
    90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL
    PUMP ASSEMBLY, FLOAT BOWL
  • 32
    90-8M0143356 SPRING, FLOAT BOWL PUMP RETURN
    SPRING, FLOAT BOWL PUMP RETURN
  • 33
    1397-2165 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 33
    1397-2169 THROTTLE BDY ASSEMBLY
    THROTTLE BDY ASSEMBLY
  • 34
    24-33621 SPRING, IDLE ADJUSTING NEEDLE
    SPRING, IDLE ADJUSTING NEEDLE
  • 35
    1397-2142 IDLE ADJUSTING NEEDLE, THROTTLE BODY(INCLUDED WITH O)
    IDLE ADJUSTING NEEDLE, THROTTLE BODY(INCLUDED WITH O)
  • 36
    90-8M0143356 CLIP, CHOKE ROD - UPPER
    CLIP, CHOKE ROD - UPPER
  • 37
    1397-2155 ROD, CHOKE
    ROD, CHOKE
  • 38
    90-8M0143356 CLIP, CHOKE ROD - LOWER
    CLIP, CHOKE ROD - LOWER
  • 39
    1397-2160 CAM, FAST IDLE - THROTTLE BODY
    CAM, FAST IDLE - THROTTLE BODY
  • 39
    1397-2146 CAM, FAST IDLE - THROTTLE BODY
    CAM, FAST IDLE - THROTTLE BODY
  • 40
    10-33042 SCREW, FAST IDLE CAM TO THROTTLE BODDY
    SCREW, FAST IDLE CAM TO THROTTLE BODDY
  • 41
    32-33633 CHOKE TUBE ASSEMBLY, THROTTLE BODY
    CHOKE TUBE ASSEMBLY, THROTTLE BODY
  • 42
    11-33627 NUT, CHOKE TUBE TO CHOKE HOUSING
    NUT, CHOKE TUBE TO CHOKE HOUSING
  • 43
    90-8M0143356 PACKING, CHOKE TUBE NUT
    PACKING, CHOKE TUBE NUT
  • 44
    1397-2061 IDLE STOP SCREW, THROTTLE BODY
    IDLE STOP SCREW, THROTTLE BODY
  • 45
    1397-2154 LINK, PUMP TO THROTTLE BODY
    LINK, PUMP TO THROTTLE BODY
  • 46
    90-8M0143356 PIN, HAIR - PUMP LINK RETAINING
    PIN, HAIR - PUMP LINK RETAINING
  • 47
    10-33630 ,SCREW. THROTTLE BODY TO FLOAT BOWL
    ,SCREW. THROTTLE BODY TO FLOAT BOWL
    Производитель Mercury-Mercruiser
  • 48
    27-33460 GASKET, CARBURETOR FLANGE(INCLUDED WITH )
    GASKET, CARBURETOR FLANGE(INCLUDED WITH )
  • 49
    1397-2152 CHOKE HOPUSING ASSEMBLY
    CHOKE HOPUSING ASSEMBLY
  • 50
    19-33041 WELCH PULG, CHOKE HOUSING
    WELCH PULG, CHOKE HOUSING
  • 51
    10-33053 SCREW, CHOKE HOUSING TO AIR HORN
    SCREW, CHOKE HOUSING TO AIR HORN
  • 52
    1397-2167 ,LEVER ASSEMBLY, CHOKE PISTON
    ,LEVER ASSEMBLY, CHOKE PISTON
    Производитель Mercury-Mercruiser
  • 53
    1397-2059 CHOKE PISTON, CHOKE HOUSING
    CHOKE PISTON, CHOKE HOUSING
  • 54
    17-33049 PIN, CHOKE PISTON TO CHOKE PISTON LEVER
    PIN, CHOKE PISTON TO CHOKE PISTON LEVER
  • 55
    10-33056 SCREW, CHOKE PISTON LEWVER TO CHOKE HOUSING
    SCREW, CHOKE PISTON LEWVER TO CHOKE HOUSING
  • 56
    1397-2110 PLATE, BAFFLE - CHOKE HOUSING
    PLATE, BAFFLE - CHOKE HOUSING
  • 57
    90-8M0143356 GASKET, STAT COVER AND COIL
    GASKET, STAT COVER AND COIL
  • 58
    1397-2163 STAT COVER AND COIL ASSEMBLY
    STAT COVER AND COIL ASSEMBLY
  • 59
    54-33036 RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW
    RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW
  • 60
    10-33047 ,SCREW, STAT COVER AND COIL TO CHOKE HOUSING
    ,SCREW, STAT COVER AND COIL TO CHOKE HOUSING
  • --
    1397-3458 OVERHAUL KIT
    OVERHAUL KIT
  • --
    1397-3458 OFF ENGINE KIT
    OFF ENGINE KIT
  • --
    1397-2102 GASKET KIT
    GASKET KIT
  • --
    1397-2215 ALTITUDE KIT(5000FT)
    ALTITUDE KIT(5000FT)
  • --
    1397-2216 ALTITUDE KIUT
    ALTITUDE KIUT
  • --
    1397-2216 ALTITUDE KIT
    ALTITUDE KIT
  • --
    1397-2219 ALTITUDE KIT(5000FT)
    ALTITUDE KIT(5000FT)
  • --
    1397-2220 ALTITUDE KIT
    ALTITUDE KIT
