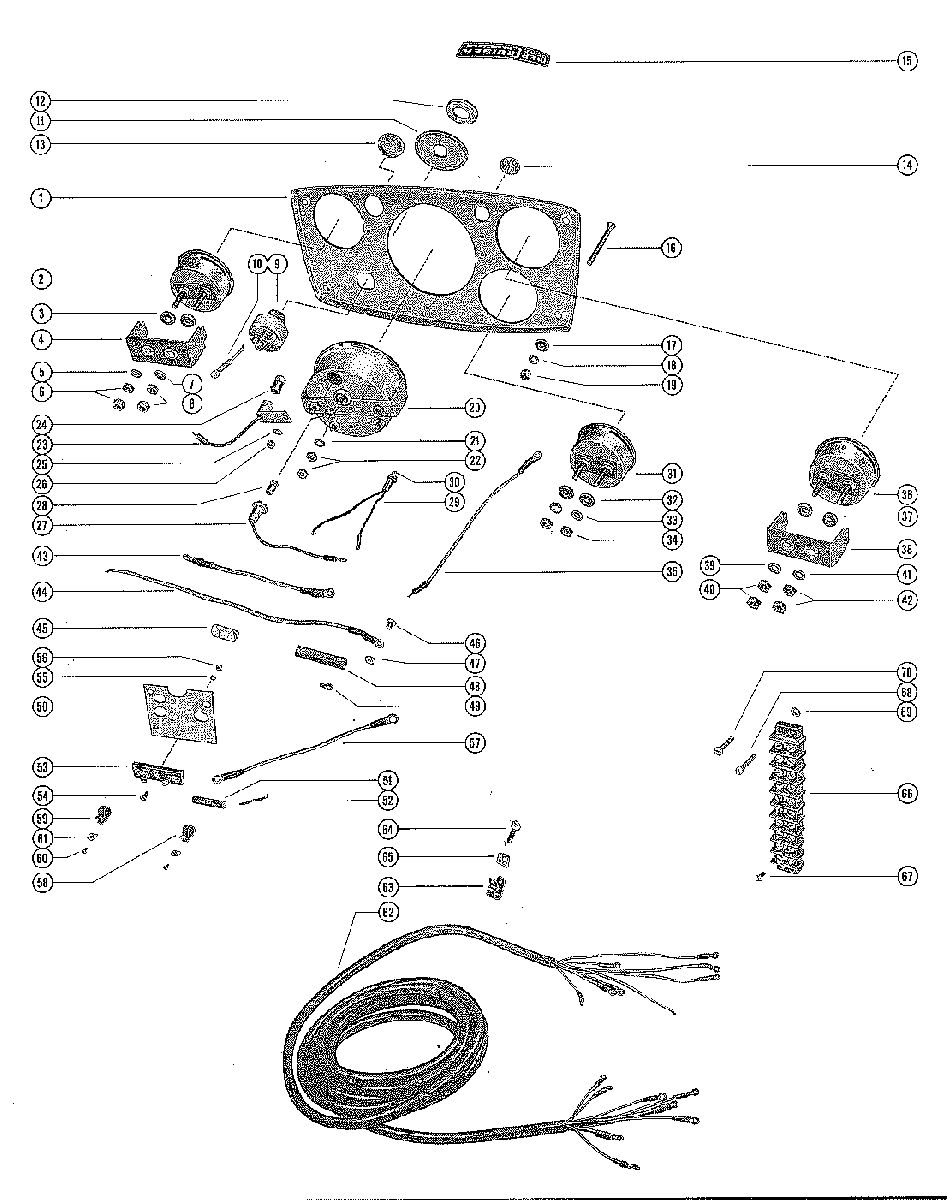

INSTRUMENT PANEL ASSEMBLY для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • INSTRU
    32897A2 PANEL ASSEMBLY, COMPLETE 9
    SERIAL 01566118-09999999
    PANEL ASSEMBLY, COMPLETE 9
    SERIAL 01566118-09999999
  • INSTRU
    34095A6 INSTRUMENT PANEL ASSEMBLY, COMPLETE
    SERIAL 01566119-09999999
    INSTRUMENT PANEL ASSEMBLY, COMPLETE
    SERIAL 01566119-09999999
  • 1
    32825 PANEL, INSTRUMENT
    PANEL, INSTRUMENT
  • 1
    34102 PANEL, INSTRUMENT
    PANEL, INSTRUMENT
  • 2
    32829 OIL PRESSURE GAUGE ASSEMBLY
    OIL PRESSURE GAUGE ASSEMBLY
  • 2
    59056A1 OIL PRESSURE GUAGE ASSEMBLY
    OIL PRESSURE GUAGE ASSEMBLY
  • 3
    12-33110 WASHER, FIBER-OIL PRESSURE GAUGE TERMINAL
    WASHER, FIBER-OIL PRESSURE GAUGE TERMINAL
  • 4
    32826 CLAMO, OIL PRESSURE GAUGE
    CLAMO, OIL PRESSURE GAUGE
  • 5
    12-20878 WASHER, OIL PRESSURE GAUGE TERMINAL(#10)
    WASHER, OIL PRESSURE GAUGE TERMINAL(#10)
  • 6
    11-68219 NUT, OIL PRESSUER GAUGE TERMINAL (#10)
    NUT, OIL PRESSUER GAUGE TERMINAL (#10)
  • 6
    11-68219 NUT, OIL PRESSUER GAUGE TERMINAL (#10)
    NUT, OIL PRESSUER GAUGE TERMINAL (#10)
  • 7
    12-20192 WASHER, OIL PRESSURE GAUGE TERMINAL (#8)
    WASHER, OIL PRESSURE GAUGE TERMINAL (#8)
  • 8
    11-26419 NUT, OIL PRESSURE GAUGE TERMINAL (#8)
    NUT, OIL PRESSURE GAUGE TERMINAL (#8)
  • 9
    54212A9 SWITCH, IGNITION -INSTRUMENT PANEL (WITH KEY #30431)
    SWITCH, IGNITION -INSTRUMENT PANEL (WITH KEY #30431)
  • 10
    32870 JUMPER WIRE, IGNITION SWITCH TO OIL PRESSURE GAUGE
    WHITE-2 1/4")
    JUMPER WIRE, IGNITION SWITCH TO OIL PRESSURE GAUGE
    WHITE-2 1/4")
  • 11
    34093 PLATE, IGNITION SWITCH
    PLATE, IGNITION SWITCH
  • 12
    32861 BEZEL, IGNITION SWITCH TO INSTRUMENT PANEL
    BEZEL, IGNITION SWITCH TO INSTRUMENT PANEL
  • 13
    19-32863 BUTTON, PLUG -INSTRUMENT PANEL (LARGE)
    BUTTON, PLUG -INSTRUMENT PANEL (LARGE)
  • 14
    19-32862 BUTTON,PLUG-INSTRUMENT PANEL(SMALL)
    BUTTON,PLUG-INSTRUMENT PANEL(SMALL)
  • 15
    37-32851 DECAL, INSTRUMENT PANEL
    DECAL, INSTRUMENT PANEL
  • 16
    10-32866 SCREW, INSTRUMENT PANEL TO DASH BOARD
    SCREW, INSTRUMENT PANEL TO DASH BOARD
  • 17
    12-33110 WASHER, FIBER-INSTRUMENT PANEL TO DASH BOARD SC
    WASHER, FIBER-INSTRUMENT PANEL TO DASH BOARD SC
  • 18
    12-20878 WASHER, INSTRUMNET PANWEL TO DASH BOARD SCREW
    WASHER, INSTRUMNET PANWEL TO DASH BOARD SCREW
  • 19
    11-8267086 NUT, INSTRUMENT PANEL TO DASH BOARD SCREW
    NUT, INSTRUMENT PANEL TO DASH BOARD SCREW
  • 20
    79-73675A1 TACHOMETER ASSEMBLY
    TACHOMETER ASSEMBLY
  • 21
    12-20878 WASHER, TACHOMETER TERMINAL (#10)
    WASHER, TACHOMETER TERMINAL (#10)
  • 22
    11-68219 NUT, TACHOMETER TERMINAL (#10)
    NUT, TACHOMETER TERMINAL (#10)
  • 23
    32865 SOCKET, LIGHT BULB -INSTRUMENT PANEL
    SOCKET, LIGHT BULB -INSTRUMENT PANEL
  • 24
    88-67920 LIGHT BULB, INSTRUMENT PANEL SOCKET
    LIGHT BULB, INSTRUMENT PANEL SOCKET
  • 25
    12-20878 WASHER, TACHOMETER LIGHT SCOKET TERMINAL (#10)
    WASHER, TACHOMETER LIGHT SCOKET TERMINAL (#10)
  • 26
    11-68219 NUT TACHOMETER LIGHT SOCKET TERMINAL (#10)
    NUT TACHOMETER LIGHT SOCKET TERMINAL (#10)
  • 27
    49917A4 SOCKET, LIGHT BULB -TACHOMETER
    SOCKET, LIGHT BULB -TACHOMETER
  • 28
    88-67920 LIGHT BULB, TACHOMETER SOCKET
    LIGHT BULB, TACHOMETER SOCKET
  • 29
    32860 INDICATOR LIGHT SOCKET ASSEMBLY
    INDICATOR LIGHT SOCKET ASSEMBLY
  • 30
    32879 LIGHT BULB, INDICATRO LIGHT SOCKET
    LIGHT BULB, INDICATRO LIGHT SOCKET
  • 31
    65639A1 AMMETER GAUGE ASSEMBLY
    AMMETER GAUGE ASSEMBLY
  • 32
    12-33110 WASHER, FIBER-AMMETER GAUGHE TERMINAL
    WASHER, FIBER-AMMETER GAUGHE TERMINAL
  • 33
    12-20878 WASHER, AMMETER GAUGE TERMINAL (#10)
    WASHER, AMMETER GAUGE TERMINAL (#10)
  • 34
    11-68219 NUT, AMMETER GAUGE TERMINAL (#10)
    NUT, AMMETER GAUGE TERMINAL (#10)
  • 35
    34096 JUMPER WIRE, IGNITION SWITCH TO AMMETER GAUGE (RED-7 3/4")
    JUMPER WIRE, IGNITION SWITCH TO AMMETER GAUGE (RED-7 3/4")
  • 36
    32827 WATER TEMPERATURE GAUGE ASSEMBLY
    WATER TEMPERATURE GAUGE ASSEMBLY
  • 36
    59054A1 WATER TEMPERATURE GAUGE ASSEMBLY
    WATER TEMPERATURE GAUGE ASSEMBLY
  • 37
    12-33110 WASHER, FIBER-WATER TEMPERATURE GAUGE TERMINAL
    WASHER, FIBER-WATER TEMPERATURE GAUGE TERMINAL
  • 38
    32826 CLAMP, WATER TEMPERATRUEE GUAGE
    CLAMP, WATER TEMPERATRUEE GUAGE
  • 39
    12-20878 WASHER, WATER TEMPERATURE GAUGE TERMINAL (#10)
    WASHER, WATER TEMPERATURE GAUGE TERMINAL (#10)
  • 40
    11-68219 NUT, WATER TEMPERATURE GAUGE TERMINAL (#10)
    NUT, WATER TEMPERATURE GAUGE TERMINAL (#10)
  • 40
    11-68219 NUT, WATER TEMPERATURE GAUGE TERMINAL (#10)
    NUT, WATER TEMPERATURE GAUGE TERMINAL (#10)
  • 41
    12-20192 WASHER, WATER TEMPERAURE GAUGE TERMNAL (#8)
    WASHER, WATER TEMPERAURE GAUGE TERMNAL (#8)
  • 42
    11-26419 ,NUT, WATER TEMPERATURE GAUGE TERMIANL (#8)
    ,NUT, WATER TEMPERATURE GAUGE TERMIANL (#8)
  • 43
    32871 JUMPER WIRE, WATER GAUGE TO OIL GAUGE (WHITE-8 3/4")
    JUMPER WIRE, WATER GAUGE TO OIL GAUGE (WHITE-8 3/4")
  • 44
    32872 JUMPER WIRE, IGNITION SWITCH TO REMOTE CONTROL (YELLOW-12")
    JUMPER WIRE, IGNITION SWITCH TO REMOTE CONTROL (YELLOW-12")
  • 45
    33865 BINDER, WIRING HARNESS AND JUMPER WIRES
    BINDER, WIRING HARNESS AND JUMPER WIRES
  • 46
    10-24231 SCREW, JUMPER WIRE TO RMOTE CONTROL SWITCH WIRE
    SCREW, JUMPER WIRE TO RMOTE CONTROL SWITCH WIRE
  • 47
    11-68219 NUT JUMPER WIRE SCREW
    NUT JUMPER WIRE SCREW
  • 48
    85-623594 SLEEVEM INSTRUMENT PANEL JUMPER WIRE
    SLEEVEM INSTRUMENT PANEL JUMPER WIRE
  • 49
    22924 TERMINAL,INSTRUMENT PANEL JUMPER WIRE (#10)
    TERMINAL,INSTRUMENT PANEL JUMPER WIRE (#10)
  • 50
    33824 BRACKET, MOUNTING-WIRING HARNESS CLAMPS
    BRACKET, MOUNTING-WIRING HARNESS CLAMPS
  • 51
    32868 BALLAST, MOUNTING BRACKET -INDICATRO LIGHT
    BALLAST, MOUNTING BRACKET -INDICATRO LIGHT
  • 52
    32873 JUMPER WIRE, IGNITION SWITCH TO BALLAST (GRAY-2 1/8")
    JUMPER WIRE, IGNITION SWITCH TO BALLAST (GRAY-2 1/8")
  • 53
    34097 FUSE BLOCK, INSTRUMENT PANEL
    FUSE BLOCK, INSTRUMENT PANEL
  • 54
    10-34123 SCREW, FUSE BLOCK TO MOUNTING BRACKET
    SCREW, FUSE BLOCK TO MOUNTING BRACKET
  • 55
    13-26994 LOCKWASHER, FUSE BLOCK SCREW
    LOCKWASHER, FUSE BLOCK SCREW
  • 56
    11-21270 NIT, FUSE BLOCK SCREW
    NIT, FUSE BLOCK SCREW
  • 57
    34092 JUMPERF WIRE, FUSSE BLOCK TO AMMETER GAUGE (RED -6 1/2")
    JUMPERF WIRE, FUSSE BLOCK TO AMMETER GAUGE (RED -6 1/2")
  • 58
    54-22740 CLAMO, BALLAST TO MOUNTING BRACKET
    CLAMO, BALLAST TO MOUNTING BRACKET
  • 59
    54-22875 CLAMP, WIRING HARNESS TO MOUNTING BRACKET
    CLAMP, WIRING HARNESS TO MOUNTING BRACKET
  • 59
    54-23567 CLAMP, WIRING HARNESS TO MOUNTING BRACKET
    CLAMP, WIRING HARNESS TO MOUNTING BRACKET
  • 60
    10-29762 SCREW, WIRING HARNESS AND BLALAST CLAMP TO MOUNTING BRACKET
    SCREW, WIRING HARNESS AND BLALAST CLAMP TO MOUNTING BRACKET
  • 60
    10-29762 SCREW, WIRING HARNESS AND BLALAST CLAMP TO MOUNTING BRACKET
    SCREW, WIRING HARNESS AND BLALAST CLAMP TO MOUNTING BRACKET
  • 61
    8M0084613 "D" WASHER, WIRING HARNESS AND BLALLAST CLAMP SCREW
    "D" WASHER, WIRING HARNESS AND BLALLAST CLAMP SCREW
  • 61
    8M0084613 "D" WASHER, WIRING HARNESS AND BLALLAST CLAMP SCREW
    "D" WASHER, WIRING HARNESS AND BLALLAST CLAMP SCREW
  • 62
    32864 WIRING HARNESS
    WIRING HARNESS
  • 62
    34104 WIRING HARNESS
    WIRING HARNESS
  • 63
    54-22875 CLAMP, WIRING HARNESS TO BOAT
    CLAMP, WIRING HARNESS TO BOAT
  • 63
    54-23567 CLAMP, WIRING HARNESS TO BOAT
    CLAMP, WIRING HARNESS TO BOAT
  • 64
    10-22793 SCREW, WOOD -WIRING HARNESS CLAMP TO BOAT
    SCREW, WOOD -WIRING HARNESS CLAMP TO BOAT
  • 64
    10-35401 SCREW, WOOD- WIRING HARNESS CLAMP TO BOAT
    SCREW, WOOD- WIRING HARNESS CLAMP TO BOAT
  • 65
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW
    "D" WASHER, WIRING HARNESS CLAMP SCREW
  • 66
    32790 TERMINAL BLOCK, WIRING HARNESS LEADS
    TERMINAL BLOCK, WIRING HARNESS LEADS
  • 67
    10-28739 SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
    SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
  • 68
    10-20644 SCREW, TERMINAL BLOCK TO BOAT
    SCREW, TERMINAL BLOCK TO BOAT
  • 69
    11-68219 NUT, TERMIANL BLOCK TO BOAT SCREW
    NUT, TERMIANL BLOCK TO BOAT SCREW
  • 70
    10-35401 SCREW, WOOD -TERMINAL BLOCK TO BOAT
    SCREW, WOOD -TERMINAL BLOCK TO BOAT
