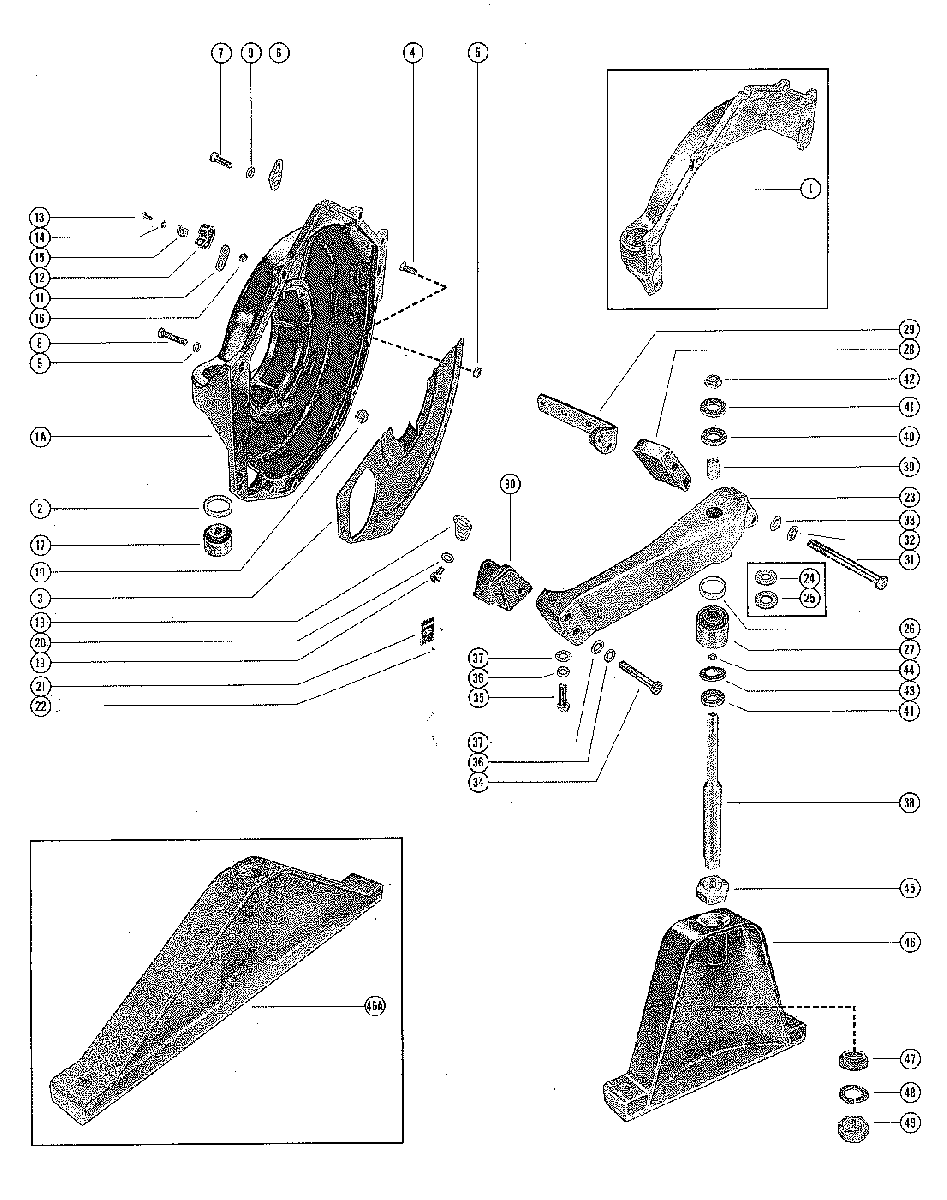

FLYWHEEL HOUSING AND ENGINE SUPPORT для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • 1
    65059A1 HOUSING, FLYWHEEL - REAR MOUNTING
    HOUSING, FLYWHEEL - REAR MOUNTING
  • 1A
    65059A1 FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
    FLYWHEEL HOUSING ASSEMBLY, REAR MOUNTING
  • 2
    23-35903 SPACER, FLYWEEL HOUSING MOUNT
    SPACER, FLYWEEL HOUSING MOUNT
  • 4
    10-47277 SCREW, COVER PLATE TO FLYWHEEL HOUSING(3/4")
    SCREW, COVER PLATE TO FLYWHEEL HOUSING(3/4")
  • 5
    11-29250 NUT, COVER PLATE SCREW
    NUT, COVER PLATE SCREW
  • 6
    54-72531 EYE, LIFTING - FLYWHEEL HOUSING SCREW
    EYE, LIFTING - FLYWHEEL HOUSING SCREW
  • 6
    54-72531 EYE, LIFTING - FLYWHEEL HOUSING SCREW
    EYE, LIFTING - FLYWHEEL HOUSING SCREW
  • 7
    10-37612 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK(1 1/4")
    SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK(1 1/4")
  • 7
    10-37612 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK(1 1/4")
    SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK(1 1/4")
  • 8
    10-98556 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK(1 3/4")
    SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK(1 3/4")
  • 9
    13-35048 LOCKWASHER, FLYWHEEL HOUSING SCREW
    LOCKWASHER, FLYWHEEL HOUSING SCREW
  • 10
    11-32219 NUT, FLYWHEEL HOUSING SCREW
    NUT, FLYWHEEL HOUSING SCREW
  • 11
    32786 TAB, WIRING HARNESS TO FLYWHEEL HOUSING
    TAB, WIRING HARNESS TO FLYWHEEL HOUSING
  • 12
    54-24871 CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
    CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
  • 12
    54-22875 CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
    CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
  • 13
    10-20191 SCREW, WIRING HARNESS CLAMP TO TAB
    SCREW, WIRING HARNESS CLAMP TO TAB
  • 14
    13-26995 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 15
    8M0084613 "D"WASHER, WIRING HARNESS CLAMP AND SCREW
    "D"WASHER, WIRING HARNESS CLAMP AND SCREW
  • 16
    11-26419 NUT, WIRING HARNESS CLAMP SCREW
    NUT, WIRING HARNESS CLAMP SCREW
  • 17
    8M0103028 MOUNT, FLYWHEEL HOUSING
    MOUNT, FLYWHEEL HOUSING
  • 18
    54-72531 EYE, LIFTING - CYLINDER BLOCK
    EYE, LIFTING - CYLINDER BLOCK
  • 18
    54-72531 EYE, LIFTING - CYLINDER BLOCK
    EYE, LIFTING - CYLINDER BLOCK
  • 19
    10-98261 SCREW, LIFTING EYE TO CYLINDER BLOCK
    SCREW, LIFTING EYE TO CYLINDER BLOCK
  • 20
    12-20533 WASHER, LIFTING EYE SCREW
    WASHER, LIFTING EYE SCREW
  • 21
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 22
    10-20314 SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK
    SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK
  • 23
    33090A1 BRACKET ASSEMBLY, FRONT MOUNTING (B-32604A2)
    BRACKET ASSEMBLY, FRONT MOUNTING (B-32604A2)
  • 23
    36111A2 BRACKET ASSEMMBLY, FRONT MOUNTING (B-32604A2)
    BRACKET ASSEMMBLY, FRONT MOUNTING (B-32604A2)
  • 24
    12-32639 WASHER, RUBBER - FRONT MOUNITNG BRACKET MOUNT
    WASHER, RUBBER - FRONT MOUNITNG BRACKET MOUNT
  • 25
    12-32552 WASHER, FRONT MOUNTING BRACKET GMOUNT
    WASHER, FRONT MOUNTING BRACKET GMOUNT
  • 26
    23-35903 SPACER, FRONT MOUNTING BRACKET MOUNT
    SPACER, FRONT MOUNTING BRACKET MOUNT
  • 27
    32833 MOUNT, FRONT MOUNTING BRACKET
    MOUNT, FRONT MOUNTING BRACKET
  • 28
    8M0046293 BLOCK, FRONT MOUNTING BRACKET SPOACER
    BLOCK, FRONT MOUNTING BRACKET SPOACER
  • 28
    8M0046293 BLOCK, WFRONT MOUNTING BRACKET SPACER
    BLOCK, WFRONT MOUNTING BRACKET SPACER
  • 29
    33107 BRACKET, MOUNTING - LEFT (NOT USED)
    BRACKET, MOUNTING - LEFT (NOT USED)
  • 29
    35036 BRACKET, MOUNTING - LEFT (NOT USED)
    BRACKET, MOUNTING - LEFT (NOT USED)
  • 30
    33106 BRACKET, MOUNTING - RIGHT (NOT USED)
    BRACKET, MOUNTING - RIGHT (NOT USED)
  • 30
    35132 BRACKET, MOUNITNG - RIGHT (NOT USED)
    BRACKET, MOUNITNG - RIGHT (NOT USED)
  • 31
    10-33112 SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK(5")
    B-10-32557(2)
    SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK(5")
    B-10-32557(2)
  • 31
    10-33113 SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK(4 1/2")
    B-10-32557(2)
    SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK(4 1/2")
    B-10-32557(2)
  • 32
    13-32993 LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
    LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
  • 33
    12-22248 WASHER, BRACKET AND SPACER BLOCK SCREW
    WASHER, BRACKET AND SPACER BLOCK SCREW
  • 34
    10-54193 SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 1/2")
    C-10-26486(2)
    SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 1/2")
    C-10-26486(2)
  • 34
    10-68299 SCREW, FORNT MOUNTING BRACKET TO CYLINDER BLOCK(3")
    C-10-26486(2)
    SCREW, FORNT MOUNTING BRACKET TO CYLINDER BLOCK(3")
    C-10-26486(2)
  • 35
    10-37612 SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")
    C-10-26632(1) & C-10-28464(1)
    SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")
    C-10-26632(1) & C-10-28464(1)
  • 36
    13-35048 LOCKWASHER, FRONT MOUNTING BRACKET SCREW
    LOCKWASHER, FRONT MOUNTING BRACKET SCREW
  • 37
    12-68300 WASHER, FRONT MOUNTING BRACKET SCREW
    WASHER, FRONT MOUNTING BRACKET SCREW
  • 37
    12-25909 WASHER, FRONT MOUNTING BRACKET SCREW
    WASHER, FRONT MOUNTING BRACKET SCREW
  • 38
    16-32579 STUD, ADJUSTING - FRONT MOUNTING BRACKET
    STUD, ADJUSTING - FRONT MOUNTING BRACKET
  • 39
    23-32756 SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
    SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 40
    12-33072 WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
  • 41
    12-32552 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 38
    16-36100T STUD, ADJUSTING - FRONT MOUNTING BRACKET
    STUD, ADJUSTING - FRONT MOUNTING BRACKET
  • 39
    23-36101 SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
    SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 40
    12-36104 WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTIN STUD
    WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTIN STUD
  • 41
    12-36103 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 42
    11-82671317 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD(TOP)
    NUT, FRONT MOUNTING BRACKET ADJUSTING STUD(TOP)
  • 43
    12-32638 WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
  • 44
    12-20959 WASHER, SMALL - FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, SMALL - FRONT MOUNTING BRACKET ADJUSTING STUD
  • 45
    11-32882 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
    NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 46
    32778T SUPPORT, FRONT - ENGINE MOUNT
    SUPPORT, FRONT - ENGINE MOUNT
  • 46A
    32849 SUPPORT, FRONT - ENGINE MOUNT
    SUPPORT, FRONT - ENGINE MOUNT
  • 47
    23-33064 SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
    SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 48
    13-33065 LOCKWASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    LOCKWASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 49
    11-8M0041651 NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD(BOTTOM)
    NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD(BOTTOM)
