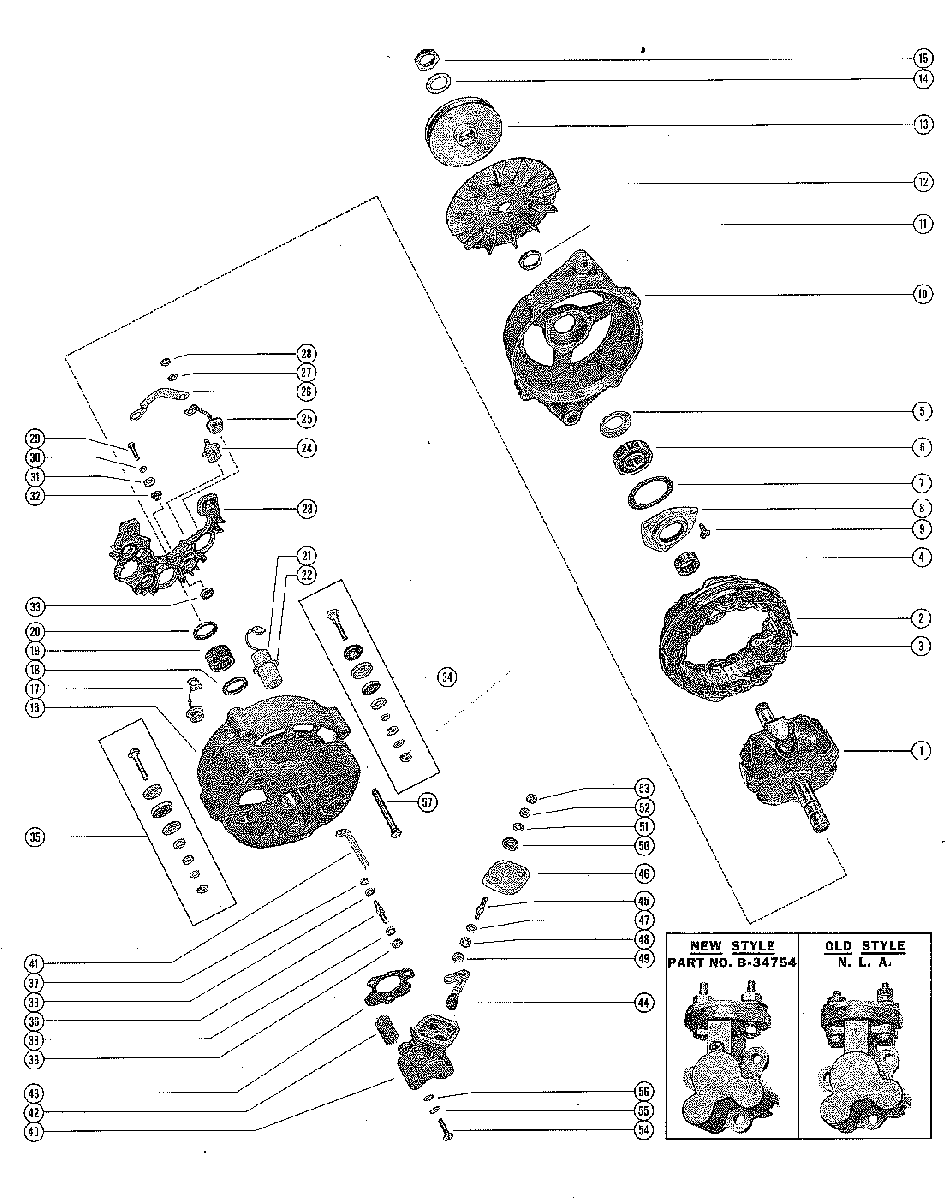

ALTERNATOR ASSEMBLY для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • -
    47456A1 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 1
    38022 ROTOR
    ROTOR
  • 2
    33325 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 3
    54-33329 CLIP, TERMINAL -STATOR LEADS
    CLIP, TERMINAL -STATOR LEADS
  • 4
    33263 COLLAR, DRIVE END FRAME-INNER
    COLLAR, DRIVE END FRAME-INNER
  • 5
    25-33312 SLINGER, GREASE-DRIVE END FRAME
    SLINGER, GREASE-DRIVE END FRAME
  • 6
    30-69389 BEARING, BALL-DRIVE END FRAME
    BEARING, BALL-DRIVE END FRAME
  • 7
    27-33273 GASKET, BALL BEARING RETAINER PLATE
    GASKET, BALL BEARING RETAINER PLATE
  • 8
    33319 PLATE, BALL BEARING RETAINER-DRIVE END FRAME
    PLATE, BALL BEARING RETAINER-DRIVE END FRAME
  • 9
    10-38028 SCREW, BALL BEARING RETAINER PLATE TO DRIVE END FRAME
    SCREW, BALL BEARING RETAINER PLATE TO DRIVE END FRAME
  • 10
    33343 FRAME, DRIVE END
    FRAME, DRIVE END
  • 11
    33344 ,COLLAR, DRIVE END FRAME - OUTER
    ,COLLAR, DRIVE END FRAME - OUTER
  • 12
    33336 FAN, DRIVE END FRAME
    FAN, DRIVE END FRAME
  • 13
    38766 PULLEY, DRIVE END FRAME
    PULLEY, DRIVE END FRAME
  • 14
    823426A1 WASHER, WAVE-ROTOR NUT
    WASHER, WAVE-ROTOR NUT
  • 15
    11-33272 NUT, ROTOR TO DRIVE END FRAME
    NUT, ROTOR TO DRIVE END FRAME
  • 16
    33349 FRAME ASSEMBLY, SLIP RING END
    FRAME ASSEMBLY, SLIP RING END
  • 17
    33341 DIODEPACKAGE, SLIP RING END FRAME-NEGATIVE
    DIODEPACKAGE, SLIP RING END FRAME-NEGATIVE
  • 18
    26-33348 SEAL, SLIP RING END FRAME ROLLER BEARING-OUTER
    SEAL, SLIP RING END FRAME ROLLER BEARING-OUTER
  • 19
    31-33355 BEARING, ROLLER-SLIP RING END FRAME
    BEARING, ROLLER-SLIP RING END FRAME
  • 20
    26-33348 SEAL, SLIP RING END FRAME ROLLER BEARING-INNER
    SEAL, SLIP RING END FRAME ROLLER BEARING-INNER
  • 21
    33327 CONDENSER
    CONDENSER
  • 22
    33345 RETAINER, SLIP RING END FRAME CONDENSER
    RETAINER, SLIP RING END FRAME CONDENSER
  • 23
    33350 HEAT SINK ASSEMBLY, SLIP RING END FRAME
    HEAT SINK ASSEMBLY, SLIP RING END FRAME
  • 24
    33342 TERMINAL PACKAGE, DIODE JUNCTION AND STATOR TERMINAL
    TERMINAL PACKAGE, DIODE JUNCTION AND STATOR TERMINAL
  • 25
    33340 DIODE JUNCTION, HEAT SINK-POSITIVE
    DIODE JUNCTION, HEAT SINK-POSITIVE
  • 26
    33332 STRAP, DIODE JUNCTION TERMINAL TO RELAY TERMINAL
    STRAP, DIODE JUNCTION TERMINAL TO RELAY TERMINAL
  • 27
    13-34383 LOCKWASHER, DIODE JUNCTION TERMINAL
    LOCKWASHER, DIODE JUNCTION TERMINAL
  • 28
    11-26419 NUT, DIODE JUNCTION TERMINAL
    NUT, DIODE JUNCTION TERMINAL
  • 29
    10-46718 SCREW, CONDENSER TERMINAL TO HEAT SINK
    SCREW, CONDENSER TERMINAL TO HEAT SINK
  • 30
    13-34383 LOCKWASHER, CONDENSER TERMINAL SCREW
    LOCKWASHER, CONDENSER TERMINAL SCREW
  • 31
    12-20192 WASHER, CONDENSER TERMINAL SCREW
    WASHER, CONDENSER TERMINAL SCREW
  • 32
    33326 INSULATOR, CONDENSER TERMINAL SCREW
    INSULATOR, CONDENSER TERMINAL SCREW
  • 33
    12-33328 WASHER, INSULATING-CINDENSER TERMINAL SCREW
    WASHER, INSULATING-CINDENSER TERMINAL SCREW
  • 34
    33353 RELAY TERMINAL PACKAGE, HEAT SINK TO SLIP RING END FRAME
    RELAY TERMINAL PACKAGE, HEAT SINK TO SLIP RING END FRAME
  • 35
    33352 BATTERY TERMINAL PACKAGE, HEAT SINK TO SLIP END FRAME
    BATTERY TERMINAL PACKAGE, HEAT SINK TO SLIP END FRAME
  • 36
    33346 TERMINAL, GROUND-SLIP RING END FRAME
    TERMINAL, GROUND-SLIP RING END FRAME
  • 37
    12-20192 WASHER, GROUNED TERMINAL
    WASHER, GROUNED TERMINAL
  • 38
    13-26995 LOCKWASHER, GROUND TERMINAL
    LOCKWASHER, GROUND TERMINAL
  • 39
    11-26419 NUT, GROUND TERMINAL
    NUT, GROUND TERMINAL
  • 40
    34754 BRUSH HOLDER PACKAGE
    SEE NOTE
    BRUSH HOLDER PACKAGE
    SEE NOTE
  • 41
    35203 CONNECTOR, GROUND TERMINAL TO GROUND BRUSH STUD
    SEE NOTE
    CONNECTOR, GROUND TERMINAL TO GROUND BRUSH STUD
    SEE NOTE
  • 42
    35-33602 SCREEN, FLAME ARRESTOR-BRUSH HOLDER
    SEE NOTE
    SCREEN, FLAME ARRESTOR-BRUSH HOLDER
    SEE NOTE
  • 43
    27-33347 GASKET, BRUSH HOLDER
    SEE NOTE
    GASKET, BRUSH HOLDER
    SEE NOTE
  • 44
    35200 BRUSH PACKAGE, STATOR (2 PR PACKAGE)
    SEE NOTE
    BRUSH PACKAGE, STATOR (2 PR PACKAGE)
    SEE NOTE
  • 45
    16-35202 STUD, FIELD AND GROUND BRUSH-HOLDER
    SEE NOTE
    STUD, FIELD AND GROUND BRUSH-HOLDER
    SEE NOTE
  • 46
    35205 COVER, PLASTIC-BRUSH HOLDER
    SEE NOTE
    COVER, PLASTIC-BRUSH HOLDER
    SEE NOTE
  • 47
    13-35207 WASHER, WAVE-FIELD AND GROUND BRUSH STUD (LOWER)
    SEE NOTE
    WASHER, WAVE-FIELD AND GROUND BRUSH STUD (LOWER)
    SEE NOTE
  • 48
    13-26908 LOCKWASHER, FIELD AND GROUND BRUSH STUD (LOWER)
    SEE NOTE
    LOCKWASHER, FIELD AND GROUND BRUSH STUD (LOWER)
    SEE NOTE
  • 49
    11-68219 NUT, FIELD AND GROUND BRUSH STUD (LOWER)
    SEE NOTE
    NUT, FIELD AND GROUND BRUSH STUD (LOWER)
    SEE NOTE
  • 50
    11-35206 NUT, SEALING-FIELD AND GROUND BRUSH STUD
    SEE NOTE
    NUT, SEALING-FIELD AND GROUND BRUSH STUD
    SEE NOTE
  • 51
    12-38024 WASHER, GROUND BRUSH STUD
    SEE NOTE
    WASHER, GROUND BRUSH STUD
    SEE NOTE
  • 52
    13-35208 WASHER, WAVE-FIELD AND GROUND BRUSH STUD (UPPER)
    SEE NOTE
    WASHER, WAVE-FIELD AND GROUND BRUSH STUD (UPPER)
    SEE NOTE
  • 53
    11-68219 NUT, FIELD AND GROUND BRUSH STUD (UPPER)
    SEE NOTE
    NUT, FIELD AND GROUND BRUSH STUD (UPPER)
    SEE NOTE
  • 54
    10-34382 SCREW, BRUSH HOLDER TO SKIP RING END FRAME
    SCREW, BRUSH HOLDER TO SKIP RING END FRAME
  • 55
    13-26995 LOCKWASHER. BRUSH HOLDER SCREW
    LOCKWASHER. BRUSH HOLDER SCREW
  • 56
    12-20670 WASHER, BRUSH HOLDER SCREW
    WASHER, BRUSH HOLDER SCREW
  • 57
    10-33322 BOLT, THRU-SLIP RING END FRAME TO DRIVE END FRAME
    BOLT, THRU-SLIP RING END FRAME TO DRIVE END FRAME
