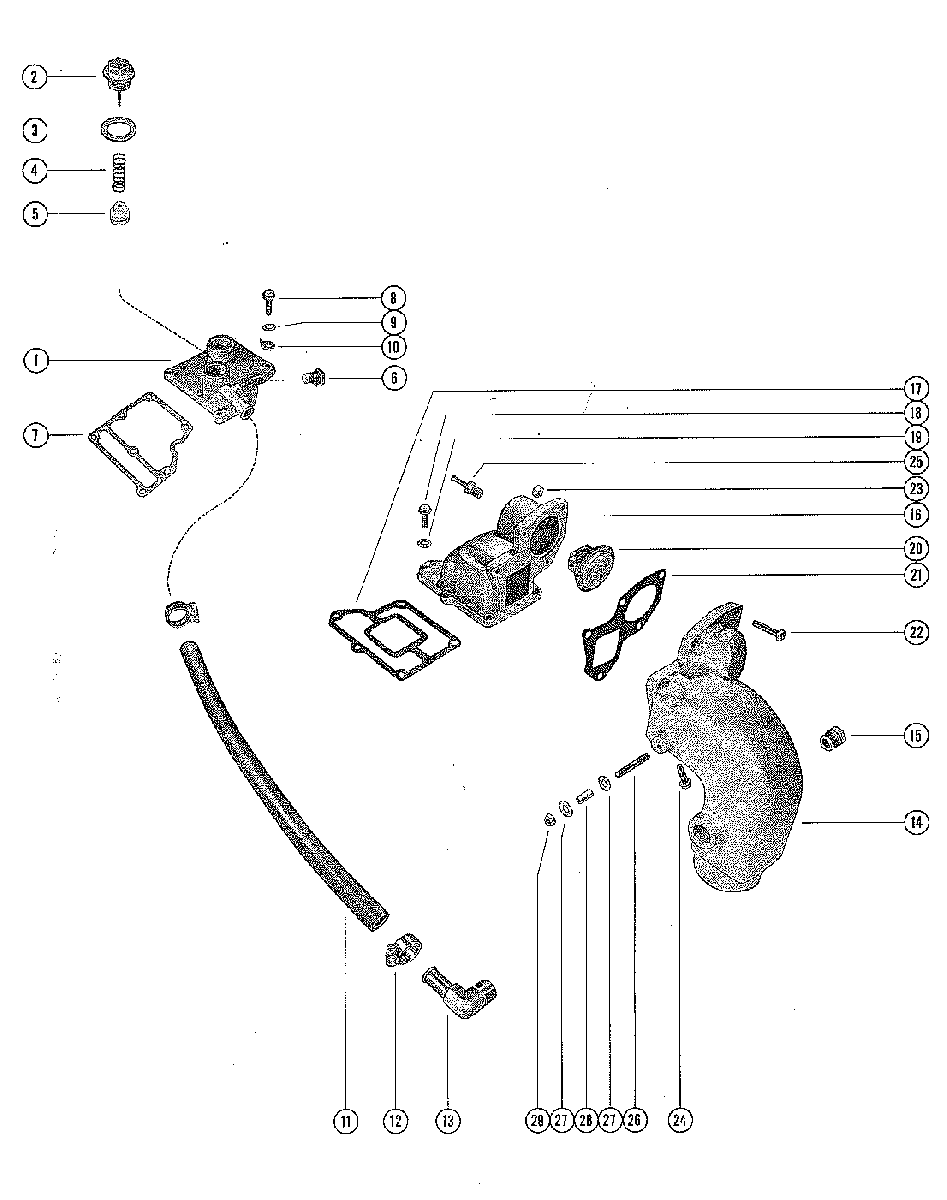

RELIEF VALVE BODY ASSEMBLY для Mercruiser - 140 GM 194 I/L6 1963 1538930 THRU 1725960

  • №
    Артикул
    Название
  • 1
    32682A3 BODY ASSEMBLY, RELIEF VALVE
    BODY ASSEMBLY, RELIEF VALVE
  • 1
    38058A1 BODY ASSEMBLY, REILEF VALVE
    BODY ASSEMBLY, REILEF VALVE
  • 2
    32729A1 CAP ASSEMBLY, RTELIEF VALVE ASSEMBLY
    CAP ASSEMBLY, RTELIEF VALVE ASSEMBLY
  • 3
    27-32019 GASKET, RELIEF VALVE BODY CAP
    GASKET, RELIEF VALVE BODY CAP
  • 4
    24-35087A1 SPRING ASSEMBLY, RELIEF VALVE BODY CAP
    SPRING ASSEMBLY, RELIEF VALVE BODY CAP
  • 5
    35086 BUTTON, CHACK VALVE - RELIEF VALVE BODY CAP
    BUTTON, CHACK VALVE - RELIEF VALVE BODY CAP
  • 6
    22-328022 PLUG, PIPE - RELIERF VALVE BODY
    PLUG, PIPE - RELIERF VALVE BODY
  • 7
    27-32811 GASKET, RELIEF VALVE BODY
    GASKET, RELIEF VALVE BODY
  • 7
    27-35144 GASKET, RELIEF VALVE BODY
    GASKET, RELIEF VALVE BODY
  • 8
    10-28668 SCREW, RELIEF VALVE BODY TO MANIFOLD(7/8")
    SCREW, RELIEF VALVE BODY TO MANIFOLD(7/8")
  • 8
    10-39970 SCREW, RELIEF VALVE BODY TO MANIFOLD BODY(1")
    SCREW, RELIEF VALVE BODY TO MANIFOLD BODY(1")
  • 9
    13-26992 LOCKWASHER, RELIF VALVE BODY SCREW
    LOCKWASHER, RELIF VALVE BODY SCREW
  • 10
    27711 RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
    RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
  • 10
    53-78201 RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
    RETAINER, RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRING
  • 11
    32-47642 HOSE, DRAIN - RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRI
    HOSE, DRAIN - RELIEF VALVE BODY SCREW - THROTTLE RETURN SPRI
  • 12
    54-815504310 CLAMP, DRAIN HOSE TO RELIEF VALVE BODY AND EXHAUST ELBOW
    CLAMP, DRAIN HOSE TO RELIEF VALVE BODY AND EXHAUST ELBOW
  • 13
    22-32715 ELBOW, DRAIN HOSE - EXHAUST ELBOW
    ELBOW, DRAIN HOSE - EXHAUST ELBOW
  • 14
    35148A1 ELBOW, EXHAUST - THERMOSTAT CONTAINER
    ELBOW, EXHAUST - THERMOSTAT CONTAINER
  • 14
    35148A1 ELBOW, EXHAUST - THERMOSTAT CONTAINER
    ELBOW, EXHAUST - THERMOSTAT CONTAINER
  • 15
    22-32803 PLUG, PIPE - EXHAUST ELBOW
    PLUG, PIPE - EXHAUST ELBOW
  • 16
    32723 CONTAINER, THERMOSTAT - MANIFOLD BODY
    CONTAINER, THERMOSTAT - MANIFOLD BODY
  • 16
    35145A1 CONTAINER, THERMOSTAT - MANIFOLD BODY
    CONTAINER, THERMOSTAT - MANIFOLD BODY
  • 17
    27-32812 GASKET, THERMOSTAT CONTAINER
    GASKET, THERMOSTAT CONTAINER
  • 17
    27-35146 GASKET, THERMOSTAT CONTAINER
    GASKET, THERMOSTAT CONTAINER
  • 18
    10-28668 SCREW, THERMOSTAT CONTAINER TO MANIFOLD BODY(7/8")
    SCREW, THERMOSTAT CONTAINER TO MANIFOLD BODY(7/8")
  • 18
    10-39970 SCREW, THERMOSTAT CONTAINER TO MANIFOLD BODY(1")
    SCREW, THERMOSTAT CONTAINER TO MANIFOLD BODY(1")
  • 19
    13-26992 LOCKWASHER, THERMOSTAT CONTAINER SCREW
    LOCKWASHER, THERMOSTAT CONTAINER SCREW
  • 20
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 21
    27-35147 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 21
    27-35147 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 22
    10-56500 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(1 1/2")
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(1 1/2")
  • 22
    10-35156 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(1 1/4")
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(1 1/4")
  • 23
    11-24652 NUT, EXHAUST ELBOW TO THERMOSTAT CONTAINER SCREW
    NUT, EXHAUST ELBOW TO THERMOSTAT CONTAINER SCREW
  • 24
    10-28667 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(LOWER) - 1"
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(LOWER) - 1"
  • 24
    10-39970 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(LOWER) - 1"
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER(LOWER) - 1"
  • 25
    22-67902 NIPPLE, BLEED HOSE TO RELIEF VALVE BODY
    NIPPLE, BLEED HOSE TO RELIEF VALVE BODY
  • 25
    22-33060 NIPPLE, BLEED HOSE TO THERMOSTAT CONTAINER
    NIPPLE, BLEED HOSE TO THERMOSTAT CONTAINER
  • 27
    12-69056 WASHER, REMOTE CONTROL CABLE STUD
    WASHER, REMOTE CONTROL CABLE STUD
  • 28
    23-31866 SPACER, REMOTE CONTROL CONTAINER CABLE STUD
    SPACER, REMOTE CONTROL CONTAINER CABLE STUD
  • 29
    11-826709109 NUT, REMOTE CONTROL CABLE TO EXHAUST ELBOW STUD
    NUT, REMOTE CONTROL CABLE TO EXHAUST ELBOW STUD
