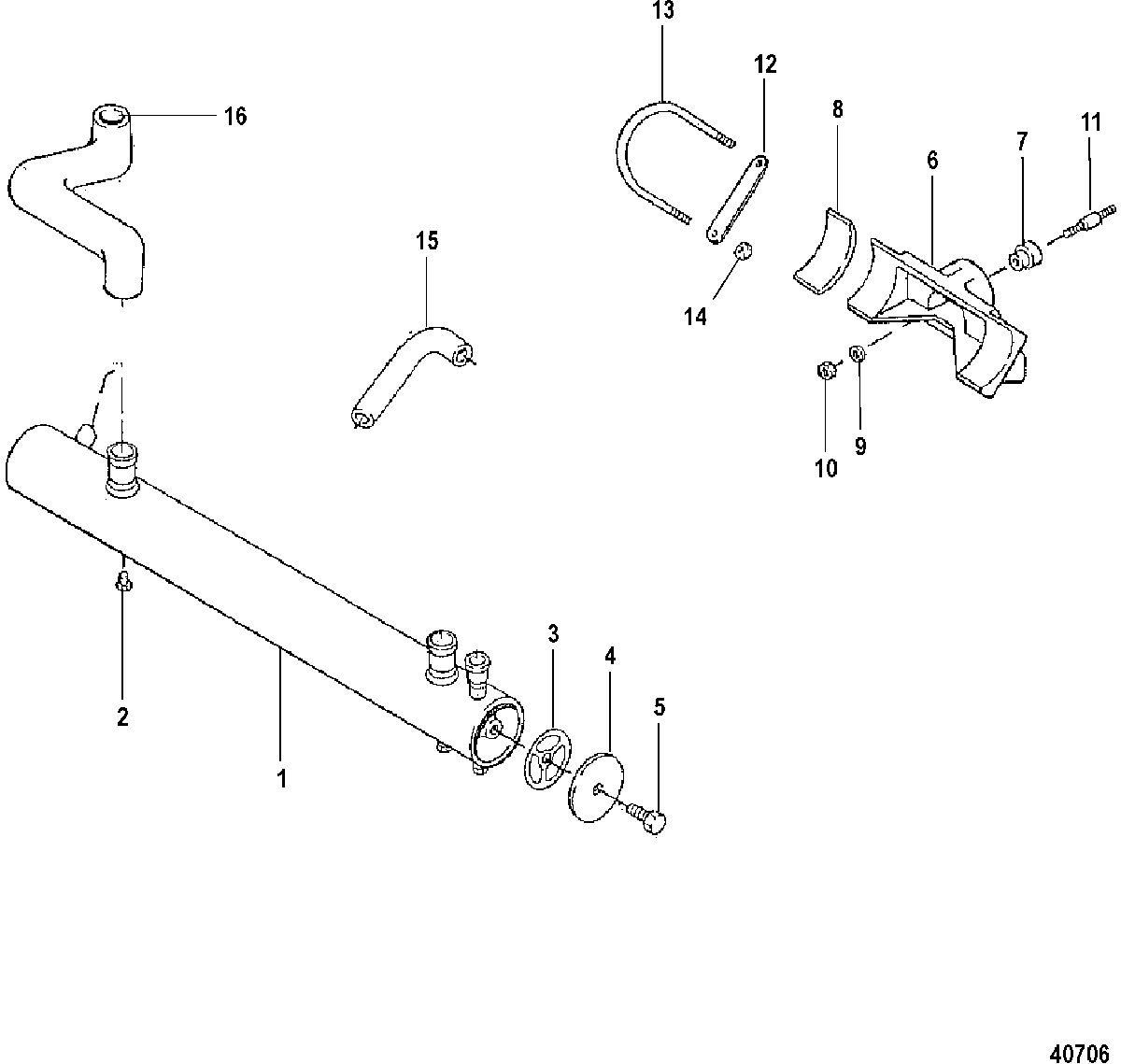

Water Closed Cooling Kit для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    99438A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • 2
    22-328022 PLUG, Pipe (.125-27), Heat Exchanger
    PLUG, Pipe (.125-27), Heat Exchanger
  • 3
    27-99960 GASKET, End Cap
    GASKET, End Cap
  • 4
    99961 PLATE, End Cap
    PLATE, End Cap
  • 5
    10-99962 SCREW, End Cap - Heat Exchanger
    SCREW, End Cap - Heat Exchanger
  • 6
    98618A1 BRACKET ASSEMBLY, Heat Exchanger
    BRACKET ASSEMBLY, Heat Exchanger
  • 7
    41024 MOUNT, Vibration
    MOUNT, Vibration
  • 8
    77223 PAD, Mounting Bracket
    PAD, Mounting Bracket
  • 9
    12-31263 WASHER, Mount Stud
    WASHER, Mount Stud
  • 10
    11-34933 NUT, (.437-20) Stainless Steel, Mount Stud
    NUT, (.437-20) Stainless Steel, Mount Stud
  • 11
    16-41025 STUD, Bracket
    STUD, Bracket
  • 12
    98620 STRAP, Bracket to Heat Exchanger
    STRAP, Bracket to Heat Exchanger
  • 13
    10-98619A1 U BOLT, Heat Exchanger
    U BOLT, Heat Exchanger
  • 14
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 15
    32-41497 HOSE, Heat Exchanger to Voltage Regulator
    HOSE, Heat Exchanger to Voltage Regulator
  • 16
    32-897000 HOSE, Exhaust Manifold to Heat Exchanger
    HOSE, Exhaust Manifold to Heat Exchanger
