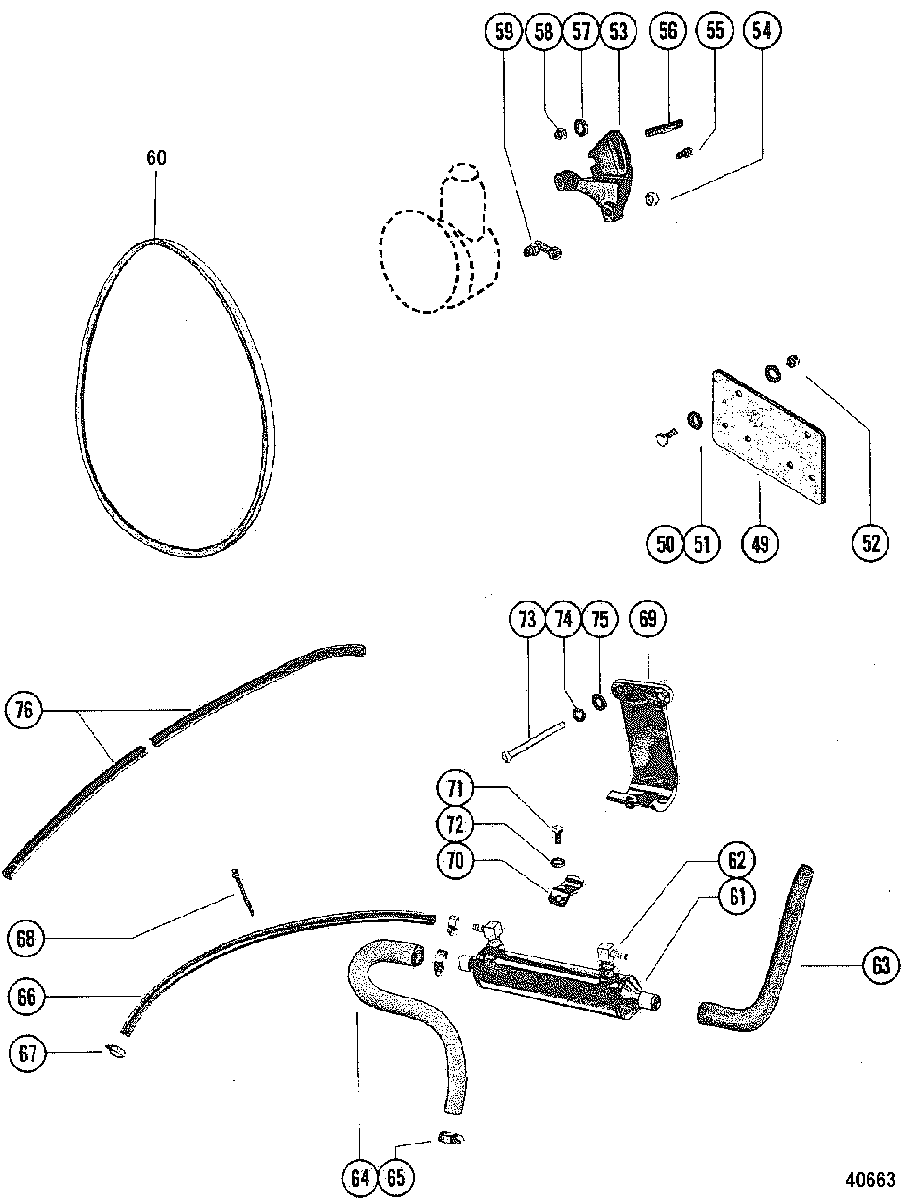

Power Steering Kit(Page 2 of 2) для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • -
    76742A1 POWER STEERING KIT (MerCruiser 470)
    POWER STEERING KIT (MerCruiser 470)
  • -
    76742A4 POWER STEERING KIT (MerCruiser 470)
    POWER STEERING KIT (MerCruiser 470)
  • -
    76742A4 POWER STEERING KIT (MerCruiser 470)
    POWER STEERING KIT (MerCruiser 470)
  • 49
    94893 PLATE, Extension, Power Trim Pump
    PLATE, Extension, Power Trim Pump
  • 50
    10-26065 SCREW, (.312-24 x 1.00), Plate to Bracket
    SCREW, (.312-24 x 1.00), Plate to Bracket
  • 51
    12-26825 WASHER, (.328 x .750 x .06), Plate Screw
    WASHER, (.328 x .750 x .06), Plate Screw
  • 52
    11-826709111 NUT, (.312-24), Plate Screw
    NUT, (.312-24), Plate Screw
  • 53
    74401 BRACKET, Hydraulic Pump
    (76742A 1 Only)
    BRACKET, Hydraulic Pump
    (76742A 1 Only)
  • 53
    90510A1 BRACKET, Hydraulic Pump
    (76742A 2 & 76742A 3)
    BRACKET, Hydraulic Pump
    (76742A 2 & 76742A 3)
  • 54
    11-25269 NUT, (.375-24), Hydraulic Pump Stud
    NUT, (.375-24), Hydraulic Pump Stud
  • 55
    10-76769 SCREW, (.375-16 x .880), Allen, Bracket to Hydraulic Pump
    SCREW, (.375-16 x .880), Allen, Bracket to Hydraulic Pump
  • 56
    16-56826 STUD, (1.5 In.), Bracket to Cylinder Head
    (76742A 1 Only)
    STUD, (1.5 In.), Bracket to Cylinder Head
    (76742A 1 Only)
  • 56
    16-54176 STUD, (1 5/8), Bracket to Cylinder Head
    (76742A 2 & 76742A 3)
    STUD, (1 5/8), Bracket to Cylinder Head
    (76742A 2 & 76742A 3)
  • 57
    12-55149 WASHER, BRACKET STUD
    WASHER, BRACKET STUD
  • 58
    11-25269 NUT, (.375-24), Bracket Stud
    NUT, (.375-24), Bracket Stud
  • 59
    76252 SWIVEL, Hydraulic Pump
    (76742A 1)
    SWIVEL, Hydraulic Pump
    (76742A 1)
  • 60
    57-76269Q V BELT
    V BELT
  • 61
    49535 COOLER, Oil
    COOLER, Oil
  • 62
    22-37760 ELBOW, Oil Cooler
    ELBOW, Oil Cooler
  • 63
    32-76206 HOSE, Molded, Oil Cooler to Transom
    HOSE, Molded, Oil Cooler to Transom
  • 64
    32-76205 HOSE, Molded, Oil Cooler to Heat Exchanger
    (76742A 1 Only)
    HOSE, Molded, Oil Cooler to Heat Exchanger
    (76742A 1 Only)
  • 64
    32-77475 HOSE, Molded, Oil Cooler to Heat Exchanger
    (76742A 2 & 76742A 3)
    HOSE, Molded, Oil Cooler to Heat Exchanger
    (76742A 2 & 76742A 3)
  • 65
    54-815504412 CLAMP, Molded Hoses
    CLAMP, Molded Hoses
  • 66
    32-8M0062341 HOSE, Oil Cooler to Water Pump (21 Inches)
    HOSE, Oil Cooler to Water Pump (21 Inches)
  • 67
    54-815504104 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 68
    77054 TIE STRAP, (14.50 Inches), Hose Attaching
    TIE STRAP, (14.50 Inches), Hose Attaching
  • 69
    76210 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 70
    54-76209 CLAMP, Oil Cooler
    CLAMP, Oil Cooler
  • 71
    10-65746 SCREW, (.75 In.), Oil Cooler Clamp to Bracket
    SCREW, (.75 In.), Oil Cooler Clamp to Bracket
  • 72
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 73
    10-76770 SCREW, (5.75), Bracket to Exhaust Manifold
    (76742A 1 & 76742A 2)
    SCREW, (5.75), Bracket to Exhaust Manifold
    (76742A 1 & 76742A 2)
  • 73
    10-85484 SCREW, Bracket to Exhaust Manifold
    (76742A 3)
    SCREW, Bracket to Exhaust Manifold
    (76742A 3)
  • 74
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 75
    12-20553 WASHER
    WASHER
  • 76
    32-774572 HOSE, (48.00 Inches Bulk), Relocating Water Reservoir
    HOSE, (48.00 Inches Bulk), Relocating Water Reservoir
