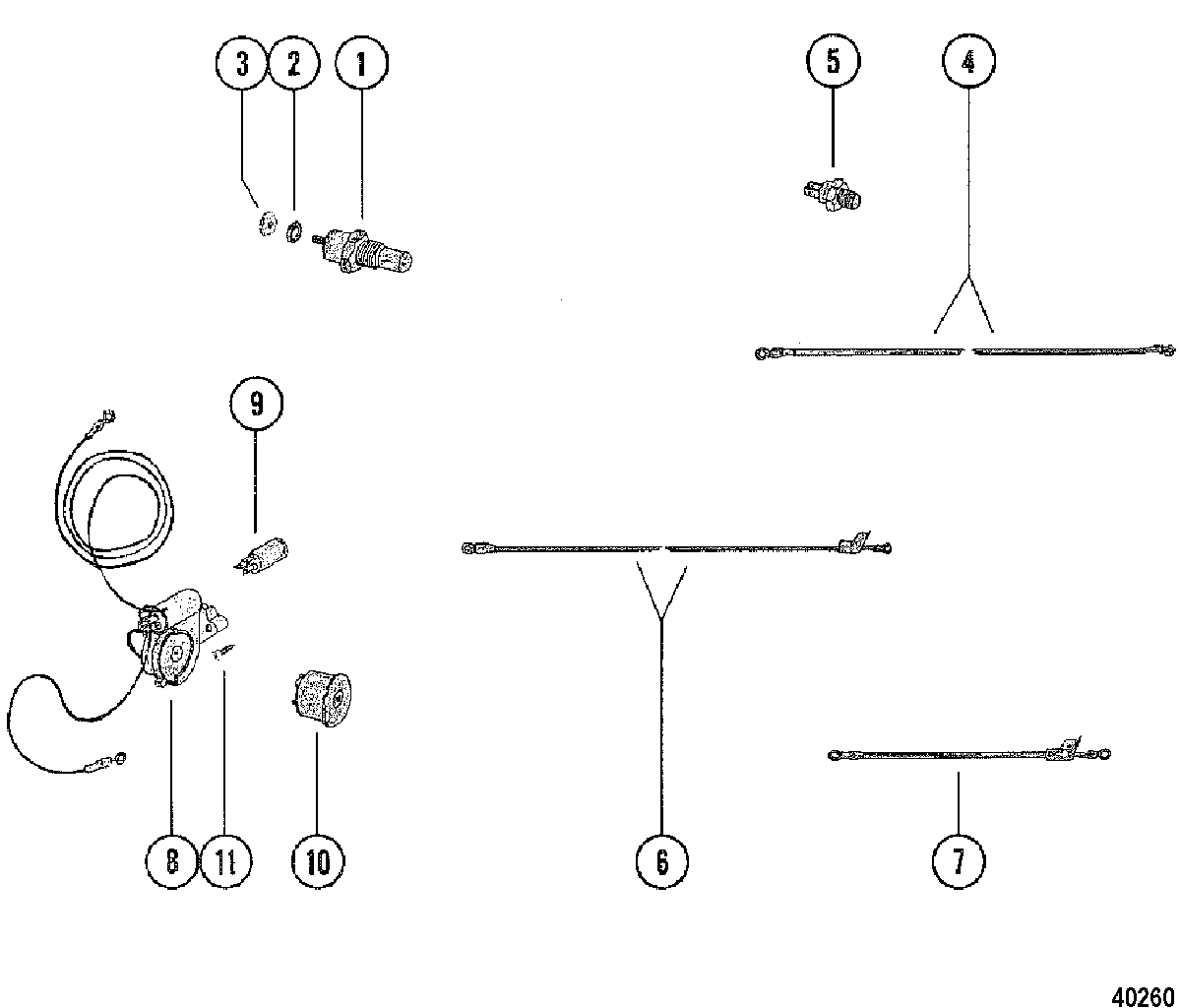

Oil & Water Sensor(INBOARD) для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    87-86080 SWITCH, Temperature, Water
    SWITCH, Temperature, Water
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel, Termperature Switch
    LOCKWASHER, (#10) Stainless Steel, Termperature Switch
  • 3
    11-45076 NUT, (#10-32) Brass, Termperature Switch
    NUT, (#10-32) Brass, Termperature Switch
  • 4
    84-86044A4 WIRE ASSEMBLY, Tan/Blue (36 Inches)
    WIRE ASSEMBLY, Tan/Blue (36 Inches)
  • 5
    87-88031 SWITCH ASSEMBLY, Oil Temperature
    SWITCH ASSEMBLY, Oil Temperature
  • 6
    84-88032A2 CABLE ASSEMBLY, Tan/Blue (20 Inches)
    CABLE ASSEMBLY, Tan/Blue (20 Inches)
  • 7
    84-86322A8 CABLE ASSEMBLY, (8.00 Inches) Black
    CABLE ASSEMBLY, (8.00 Inches) Black
  • 8
    816492A14 HOUSING ASSEMBLY, Buzzer
    HOUSING ASSEMBLY, Buzzer
  • 9
    816492A14 TIMER, Temperature Buzzer
    TIMER, Temperature Buzzer
  • 10
    68878A6 HORN
    HORN
  • 11
    10-69013 SCREW, (#10-16 x .880), Horn Attaching
    SCREW, (#10-16 x .880), Horn Attaching
