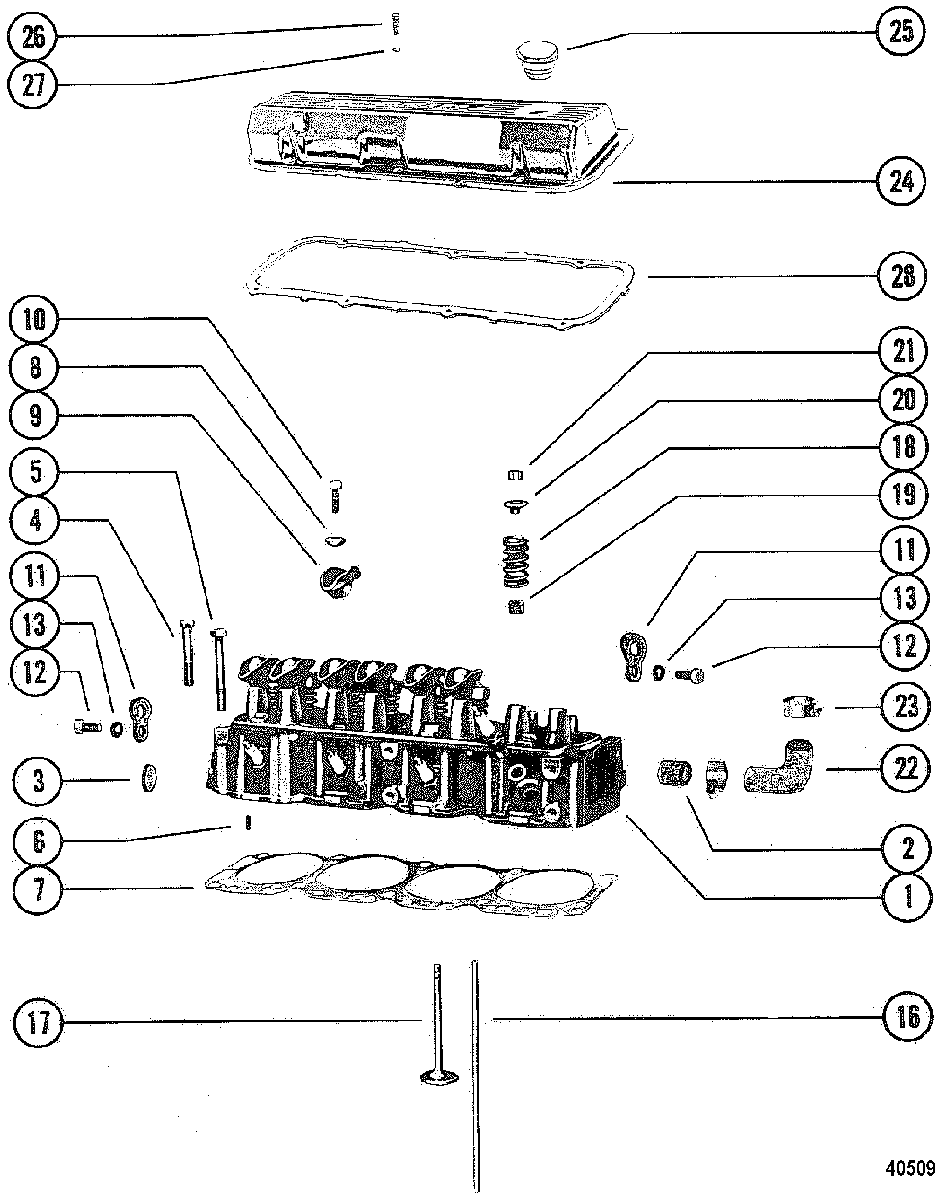

Cylinder Head & Rocker Cover для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    966-9451R2 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    23-72119 SLEEVE, Water
    SLEEVE, Water
  • 3
    19-74832 PLUG, Cylinder Head
    PLUG, Cylinder Head
  • 4
    10-67503 SCREW, (4-3/8 Inch), Cylinder Head Attaching
    SCREW, (4-3/8 Inch), Cylinder Head Attaching
  • 5
    10-72769 SCREW, (5-1/8 Inch), Cylinder Head Attaching
    SCREW, (5-1/8 Inch), Cylinder Head Attaching
  • 6
    17-67489 PIN, Cylinder Head
    PIN, Cylinder Head
  • 7
    27-13709 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 8
    67504 BALL, Rocker Arm, Rocker Cover
    BALL, Rocker Arm, Rocker Cover
  • 9
    806751A1 ARM, Rocker Valve
    ARM, Rocker Valve
  • 10
    10-67506 SCREW, Rocker Arm
    SCREW, Rocker Arm
  • 11
    54-72531 LIFTING EYE
    LIFTING EYE
  • 12
    10-48948 SCREW, (.437-14 x .880), Lifting Eye, Front
    (MCM)
    SCREW, (.437-14 x .880), Lifting Eye, Front
    (MCM)
  • 13
    13-32993 LOCKWASHER, (.437), Lifting Eye Screw
    (MCM)
    LOCKWASHER, (.437), Lifting Eye Screw
    (MCM)
  • 16
    675025 PUSH ROD, Valve (Standard)
    PUSH ROD, Valve (Standard)
  • 16
    675023 PUSH ROD, Valve (.030 Shorter)
    PUSH ROD, Valve (.030 Shorter)
  • 16
    675024 PUSH ROD, Valve (.030 Longer)
    PUSH ROD, Valve (.030 Longer)
  • 17
    44182A1 VALVE, Exhaust (Standard)
    VALVE, Exhaust (Standard)
  • 17
    75415 VALVE, Exhaust (.015 O.S.)
    VALVE, Exhaust (.015 O.S.)
  • 17
    75416 VALVE, Inake (Standard)
    VALVE, Inake (Standard)
  • 17
    75417 VALVE, Inake (.015 O.S.)
    VALVE, Inake (.015 O.S.)
  • 18
    24-75411T SPRING, Valve
    SPRING, Valve
  • 19
    26-75624 SEAL, Valve Stem
    SEAL, Valve Stem
  • 20
    75412 RETAINER, Valve Spring
    RETAINER, Valve Spring
  • 21
    28-547971 KEY, Valve Stem
    KEY, Valve Stem
  • 22
    32-74767 HOSE, Cylinder Head to Exhaust Manifold
    HOSE, Cylinder Head to Exhaust Manifold
  • 23
    54-815504220 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 24
    41638A1 ROCKER COVER
    ROCKER COVER
  • 25
    36-807152 CAP, Filler, Oil
    CAP, Filler, Oil
  • 26
    10-65746 SCREW, (.75 In.), Rocker Cover Attaching
    SCREW, (.75 In.), Rocker Cover Attaching
  • 27
    13-22773 LOCKWASHER, Rocker Cover Screw
    LOCKWASHER, Rocker Cover Screw
  • 28
    27-73666 GASKET, Rocker Cover
    GASKET, Rocker Cover
