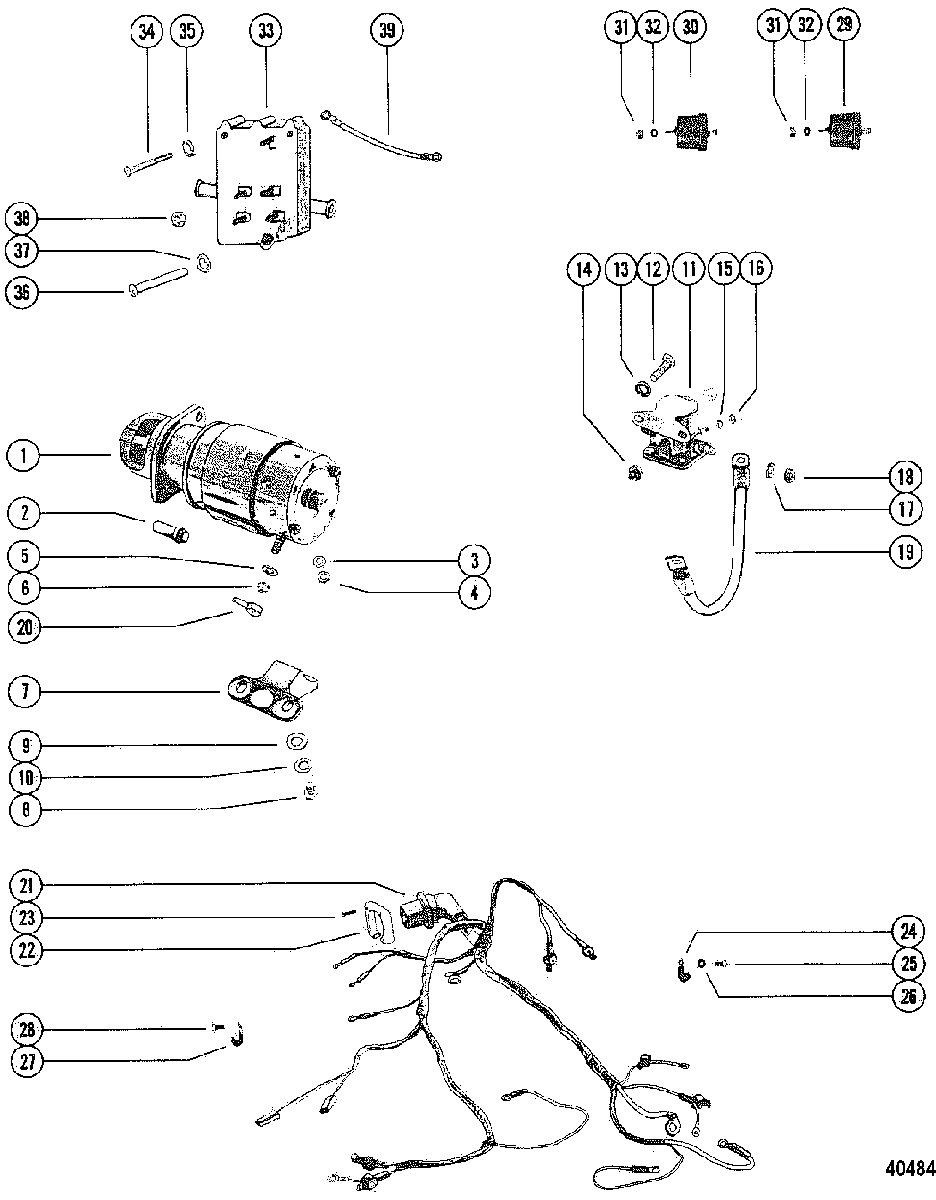

Starter Motor & Wiring Harness для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    50-72550R2 STATER MOTOR ASSEMBLY (MCM)
    STATER MOTOR ASSEMBLY (MCM)
  • 1
    50-88671A2 STARTER MOTOR ASSEMBLY (INBOARD)
    STARTER MOTOR ASSEMBLY (INBOARD)
  • 2
    10-72875 SCREW, (1.5 In.), Starter Motor Attaching
    SCREW, (1.5 In.), Starter Motor Attaching
  • 3
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 4
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 5
    13-26993 LOCKWASHER, (.312), Starter Motor Terminal
    LOCKWASHER, (.312), Starter Motor Terminal
  • 6
    11-29250 NUT, (.312-24), Starter Motor Terminal
    NUT, (.312-24), Starter Motor Terminal
  • 7
    70398A1 BRACE, Starter Motor to Cylinder Block
    BRACE, Starter Motor to Cylinder Block
  • 8
    10-21077 SCREW, (.375-16 x .88), Starter Motor Brace to Cylinder Block
    SCREW, (.375-16 x .88), Starter Motor Brace to Cylinder Block
  • 9
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    65057T1 SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 12
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, Solenoid to Cylinder Block
    SCREW, (.250-20 x .620) Stainless Steel, Solenoid to Cylinder Block
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    269011 BUMPER
    BUMPER
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, Solenoid Terminal
    LOCKWASHER, (#10) Stainless Steel, Solenoid Terminal
  • 16
    11-68219 NUT, (#10-32) Stainless Steel, Solenoid Terminal
    NUT, (#10-32) Stainless Steel, Solenoid Terminal
  • 17
    13-26993 LOCKWASHER, (.312), Solenoid Terminal
    LOCKWASHER, (.312), Solenoid Terminal
  • 18
    11-22053 NUT, (5/16-24), Solenoid Terminal
    NUT, (5/16-24), Solenoid Terminal
  • 19
    84-77042 CABLE, Solenoid to Starter
    CABLE, Solenoid to Starter
  • 20
    85-79695T BOOT, Insulator - Black, Starter Stud
    BOOT, Insulator - Black, Starter Stud
  • 21
    84-86675A2 HARNESS ASSEMBLY (MCM)
    SN# 5873488 & Below
    HARNESS ASSEMBLY (MCM)
    SN# 5873488 & Below
  • 21
    84-93178A1 HARNESS ASSEMBLY (MCM)
    SN# 5873489 & Up
    HARNESS ASSEMBLY (MCM)
    SN# 5873489 & Up
  • 21
    84-89231A1 HARNESS ASSEMBLY (INBOARD)
    HARNESS ASSEMBLY (INBOARD)
  • 22
    26079A2 PLATE, Harness Attaching
    PLATE, Harness Attaching
  • 23
    10-46718 SCREW, (#8-32 x 3/4), Plate to Bracket
    SCREW, (#8-32 x 3/4), Plate to Bracket
  • 24
    54-642351 J CLIP, Wiring Harness
    J CLIP, Wiring Harness
  • 25
    10-98253 SCREW, (1/2 In.), Wiring Harness Clamp to Manifold
    SCREW, (1/2 In.), Wiring Harness Clamp to Manifold
  • 26
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 27
    54-73668 J-CLIP
    J-CLIP
  • 28
    10-98260 SCREW, (.375-16 x .62), Clip to Intake Manifold
    SCREW, (.375-16 x .62), Clip to Intake Manifold
  • 29
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 30
    87-805605A1 SWITCH, Oil Pressure
    (INBOARD)
    SWITCH, Oil Pressure
    (INBOARD)
  • 31
    11-68219 NUT, (#10-32) Stainless Steel, Switch & Sending Unit Terminal
    NUT, (#10-32) Stainless Steel, Switch & Sending Unit Terminal
  • 32
    13-26996 LOCKWASHER, (#10) Stainless Steel, Switch & Sending Unit Terminal
    LOCKWASHER, (#10) Stainless Steel, Switch & Sending Unit Terminal
  • 33
    99502A12 REGULATOR ASSEMBLY, Voltage
    REGULATOR ASSEMBLY, Voltage
  • 34
    10-98255 SCREW, (2.25 In.), Voltage Regulator Attaching
    SCREW, (2.25 In.), Voltage Regulator Attaching
  • 35
    13-26992 LOCKWASHER, (.250) Stainless Steel, Voltage Regulator Screw
    LOCKWASHER, (.250) Stainless Steel, Voltage Regulator Screw
  • 36
    10-34354 SCREW, (1.5 In.), Voltage Regulator Attaching
    SCREW, (1.5 In.), Voltage Regulator Attaching
  • 37
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 38
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 39
    84-92700A1 WIRE ASSEMBLY, Jumper, Voltage Regulator
    WIRE ASSEMBLY, Jumper, Voltage Regulator
  • -
    84-94227A2 RESISTOR WIRE KIT
    RESISTOR WIRE KIT
