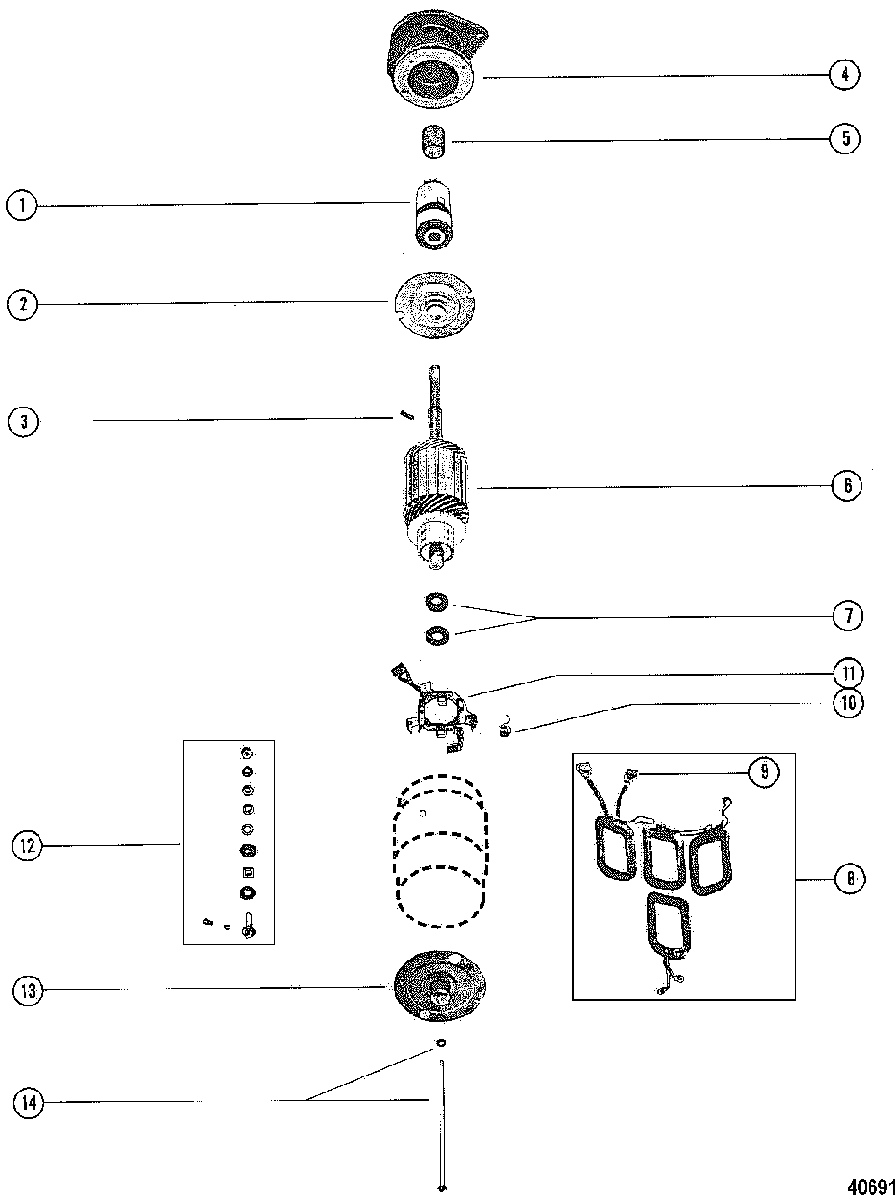

Starter Motor Assembly, Complete для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • -
    50-69865A1 STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • -
    50-72550R2 STATER MOTOR ASSEMBLY, Complete
    STATER MOTOR ASSEMBLY, Complete
  • -
    50-88671A2 STARTER MOTOR ASSEMBLY, Complete
    STARTER MOTOR ASSEMBLY, Complete
  • 1
    392-5720 MOTOR DRIVE, Includes Nut, Spring & Collar
    (50- 69865 Only)
    MOTOR DRIVE, Includes Nut, Spring & Collar
    (50- 69865 Only)
  • 1
    392-6177 MOTOR DRIVE, Includes Nut, Spring & Collar
    (50-72550A 1 Only)
    MOTOR DRIVE, Includes Nut, Spring & Collar
    (50-72550A 1 Only)
  • 1
    392-8271 MOTOR DRIVE, Includes Nut, Spring & Collar
    (50-88671A 1 Only)
    MOTOR DRIVE, Includes Nut, Spring & Collar
    (50-88671A 1 Only)
  • 2
    392-5719 BEARING ASSEMBLY, Intermediate
    BEARING ASSEMBLY, Intermediate
  • 3
    392-5721 PIN, Motor Drive
    (50- 69865 Only)
    PIN, Motor Drive
    (50- 69865 Only)
  • 3
    392-6178 PIN, Motor Drive
    (50- 72550A 1 & 50-88671A 1)
    PIN, Motor Drive
    (50- 72550A 1 & 50-88671A 1)
  • 4
    392-5724 PLATE ASSEMBLY, Drive End
    (50- 69865 Only)
    PLATE ASSEMBLY, Drive End
    (50- 69865 Only)
  • 4
    392-6180 PLATE ASSEMBLY, Drive End
    (50- 72550A 1 & 50-88671A 1)
    PLATE ASSEMBLY, Drive End
    (50- 72550A 1 & 50-88671A 1)
  • 5
    392-5725 BUSHING, Drive End Plate
    BUSHING, Drive End Plate
  • 6
    392-5718 ARMATURE
    (50- 69865 Only)
    ARMATURE
    (50- 69865 Only)
  • 6
    392-6176 ARMATURE
    (50- 72550A 1 & 50-88671A 1)
    ARMATURE
    (50- 72550A 1 & 50-88671A 1)
  • 7
    392-5730 THRUST WASHER PACKAGE, Armature Thrust Washer
    (Contains various thickness washers for service replacement)
    THRUST WASHER PACKAGE, Armature Thrust Washer
    (Contains various thickness washers for service replacement)
  • 8
    392-5722 FIELD ASSEMBLY
    (50- 69865 Only)
    FIELD ASSEMBLY
    (50- 69865 Only)
  • 8
    392-6179 FIELD ASSEMBLY
    (50-72550A 1 Only)
    FIELD ASSEMBLY
    (50-72550A 1 Only)
  • 8
    392-8270 FIELD ASSEMBLY
    (50-88671A 1)
    FIELD ASSEMBLY
    (50-88671A 1)
  • 9
    392-6181 BRUSH AND TERMINAL SET (50- 69865 Only)
    (Includes all 4 brushes plus terminal & lock nut)
    BRUSH AND TERMINAL SET (50- 69865 Only)
    (Includes all 4 brushes plus terminal & lock nut)
  • 9
    392-6181 BRUSH SET (50- 72550A 1 Only)
    (Includes all 4 brushes plus terminal & lock nut)
    BRUSH SET (50- 72550A 1 Only)
    (Includes all 4 brushes plus terminal & lock nut)
  • 9
    392-6181 BRUSH SET (50-88671A 1 Only)
    BRUSH SET (50-88671A 1 Only)
  • 10
    392-5727 SPRING SET, Brush (2 springs per set)
    SPRING SET, Brush (2 springs per set)
  • 11
    392-5726 BRUSH PLATE
    BRUSH PLATE
  • 12
    392-5728 TERMINAL STUD PACKAGE
    TERMINAL STUD PACKAGE
  • 13
    392-5723 END CAP ASSEMBLY, Commutator
    END CAP ASSEMBLY, Commutator
  • 14
    392-5729 BOLT, Thru, End Cap to End Plate
    BOLT, Thru, End Cap to End Plate
