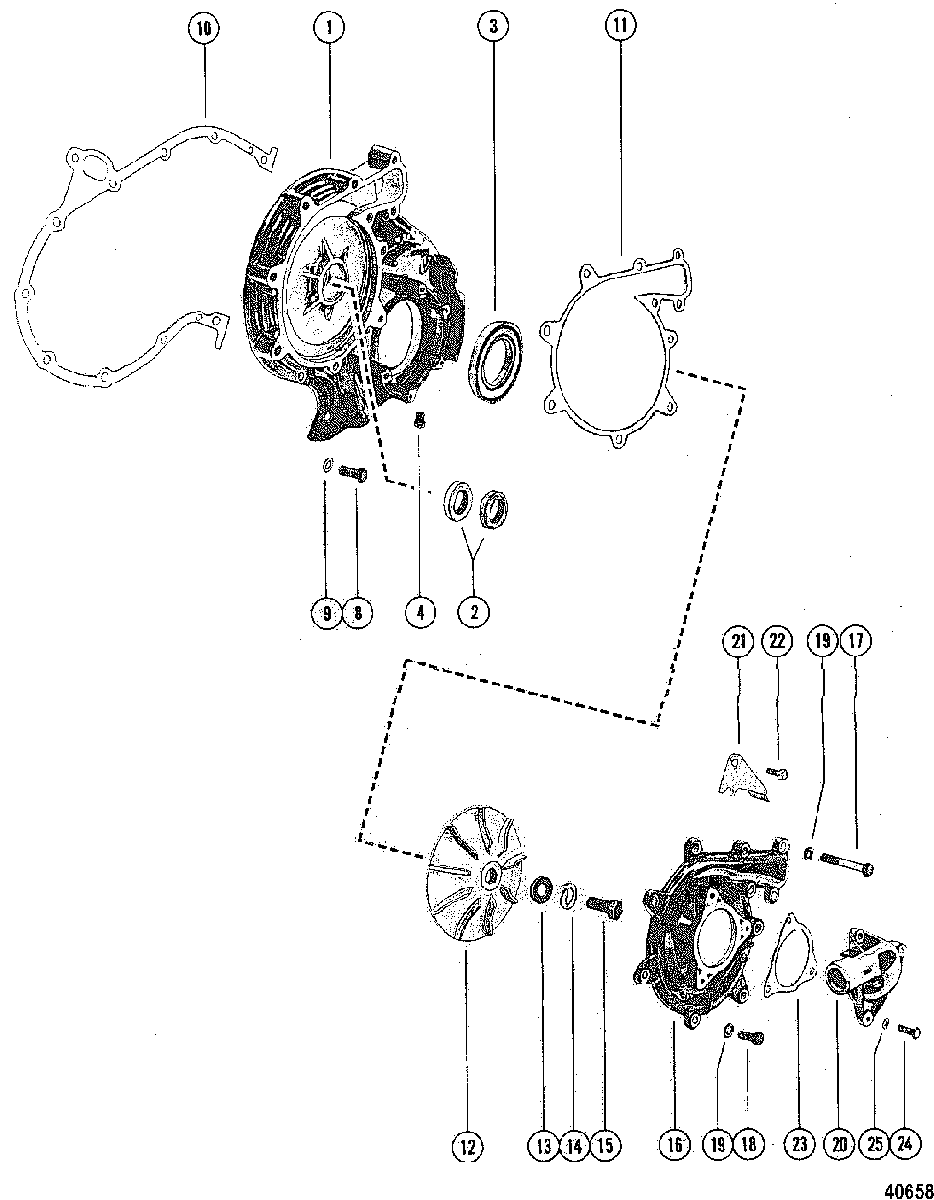

Front Cover для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    71903A2 FRONT COVER ASSEMBLY
    L.H. Rotation
    FRONT COVER ASSEMBLY
    L.H. Rotation
  • 1
    88014A2 FRONT COVER ASSEMBLY
    R.H. Rotation
    FRONT COVER ASSEMBLY
    R.H. Rotation
  • 2
    26-89238 SEAL, Oil, Water Pump
    SEAL, Oil, Water Pump
  • 3
    26-67388 SEAL, Front
    SEAL, Front
  • 4
    22-328022 PLUG, Pipe (.125-27), Drain
    PLUG, Pipe (.125-27), Drain
  • 8
    10-35386 SCREW, (.312-18 x 1.00), Front Cover to Cylinder Block
    L.H. Rotation
    SCREW, (.312-18 x 1.00), Front Cover to Cylinder Block
    L.H. Rotation
  • 8
    10-35386 SCREW, (.312-18 x 1.00), Front Cover to Cylinder Block
    R.H. Rotation
    SCREW, (.312-18 x 1.00), Front Cover to Cylinder Block
    R.H. Rotation
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    L.H. Rotation
    WASHER, (.328 x .562 x .062)
    L.H. Rotation
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    R.H. Rotation
    WASHER, (.328 x .562 x .062)
    R.H. Rotation
  • 10
    27-68714A7 GASKET, Font Cover to Cylider Block
    GASKET, Font Cover to Cylider Block
  • 11
    27-68714A7 GASKET, Impeller Cover to Front Cover
    L.H. Rotation
    GASKET, Impeller Cover to Front Cover
    L.H. Rotation
  • 11
    27-88046 GASKET, Impeller Cover to Front Cover
    R.H. Rotation
    GASKET, Impeller Cover to Front Cover
    R.H. Rotation
  • 12
    47-86462A1 IMPELLER, Water Pump
    IMPELLER, Water Pump
  • 13
    12-91863 WASHER, Impeller Screw
    WASHER, Impeller Screw
  • 14
    13-21804 LOCKWASHER, Impeller Screw
    LOCKWASHER, Impeller Screw
  • 15
    10-824941 SCREW, (.312-18 x .750), Impeller Attaching
    SCREW, (.312-18 x .750), Impeller Attaching
  • 16
    71902A1 COVER, Impeller
    L.H. Rotation
    COVER, Impeller
    L.H. Rotation
  • 16
    88013A1 COVER, Impeller
    R.H. Rotation
    COVER, Impeller
    R.H. Rotation
  • 17
    10-67450 SCREW, (.312-18 x 2.250), Cover to Cylinder Block
    SCREW, (.312-18 x 2.250), Cover to Cylinder Block
  • 18
    10-35386 SCREW, (.312-18 x 1.00), Impeller Cover to Front Cover
    L.H. & R.H. Rotation
    SCREW, (.312-18 x 1.00), Impeller Cover to Front Cover
    L.H. & R.H. Rotation
  • 18
    10-74824 SCREW, (.312-18 x 1.250), Impeller Cover to Front Cover
    R.H. Rotation
    SCREW, (.312-18 x 1.250), Impeller Cover to Front Cover
    R.H. Rotation
  • 19
    12-20084 WASHER, (.328 x .562 x .062)
    L.H. Rotation
    WASHER, (.328 x .562 x .062)
    L.H. Rotation
  • 19
    12-20084 WASHER, (.328 x .562 x .062)
    R.H. Rotation
    WASHER, (.328 x .562 x .062)
    R.H. Rotation
  • 20
    71904A1 COVER, Water Inlet
    L.H. Rotation
    COVER, Water Inlet
    L.H. Rotation
  • 20
    88012A1 COVER, Water Inlet
    R.H. Rotation
    COVER, Water Inlet
    R.H. Rotation
  • 21
    88045 TIMING MARKER
    R.H. Rotation
    TIMING MARKER
    R.H. Rotation
  • 22
    10-55714 SCREW, (7/8 In.), Timing Marker to Front Cover
    R.H. Rotation
    SCREW, (7/8 In.), Timing Marker to Front Cover
    R.H. Rotation
  • 23
    27-68714A7 GASKET, Water Inlet Cover
    GASKET, Water Inlet Cover
  • 24
    10-28668 SCREW, (.250-20 x .875) Stainless Steel, Inlet Cover to Impeller Cover
    SCREW, (.250-20 x .875) Stainless Steel, Inlet Cover to Impeller Cover
  • 25
    12-21249 WASHER
    WASHER
