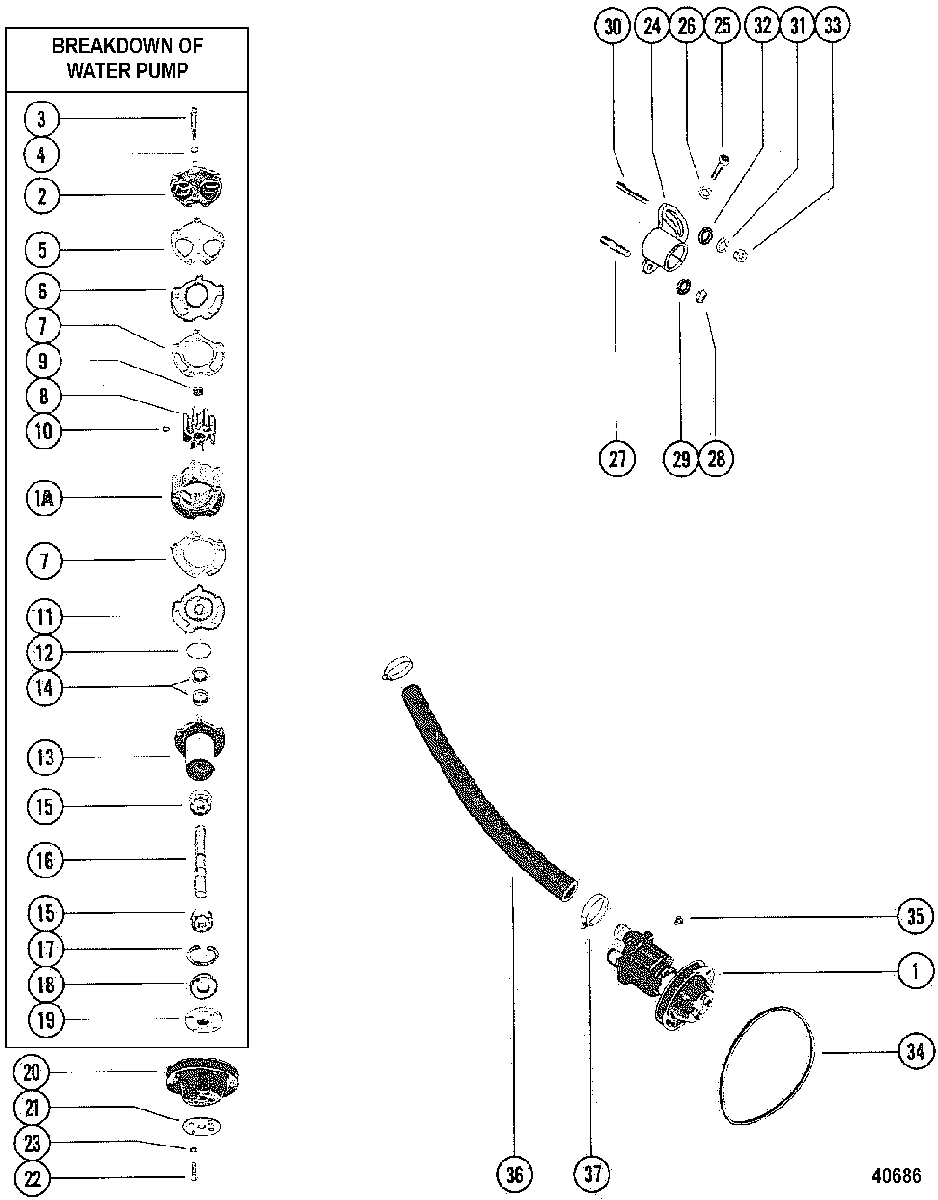

Water Pump Assembly(INBOARD) для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    46-72774A32 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 1A
    46-72774A40 BODY, Water Pump
    BODY, Water Pump
  • 2
    87631A5 COVER, Water Pump
    COVER, Water Pump
  • 3
    10-63328 SCREW, (.312-18 x 3.00), Cover to Body
    SCREW, (.312-18 x 3.00), Cover to Body
  • 4
    12-20084 WASHER, (.328 x .562 x .062), Cover Screw
    WASHER, (.328 x .562 x .062), Cover Screw
  • 5
    27-8052151 GASKET, Cover to Outer Wear Plate
    GASKET, Cover to Outer Wear Plate
  • 6
    94916 WEAR PLATE
    WEAR PLATE
  • 7
    27-94914 GASKET, Body to Wear Plate
    GASKET, Body to Wear Plate
  • 8
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 9
    19-59504 PLUG, Impeller
    PLUG, Impeller
  • 10
    28-8M0032837 KEY, Impeller Drive
    KEY, Impeller Drive
  • 11
    94576 WEAR PLATE
    WEAR PLATE
  • 12
    25-37340 O-RING, Pump Housing to Inner Wear Plate
    O-RING, Pump Housing to Inner Wear Plate
  • 13
    46-94913A1 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 14
    26-90562 SEAL, Oil, Water Pump Shaft
    SEAL, Oil, Water Pump Shaft
  • 15
    30-72961 BEARING, Ball, Water Pump Shaft
    BEARING, Ball, Water Pump Shaft
  • 16
    59501A1 SHAFT, Water Pump
    SHAFT, Water Pump
  • 17
    53-23720 RING, Retaining, Snap
    RING, Retaining, Snap
  • 18
    26-72785 SEAL, Water Pump Shaft
    SEAL, Water Pump Shaft
  • 19
    47530 HUB, Water Pump Pulley
    HUB, Water Pump Pulley
  • 20
    73798A1 PULLEY, Water Pump
    PULLEY, Water Pump
  • 21
    58265 RING, Clamping, Pump Pulley
    RING, Clamping, Pump Pulley
  • 22
    10-47277 SCREW, (.312-24 x .750), Pulley to Water Pump
    SCREW, (.312-24 x .750), Pulley to Water Pump
  • 23
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 24
    78010 BRACKET, Water Pump
    BRACKET, Water Pump
  • 25
    10-34354 SCREW, (.375-16 x 1.50), Water Pump Bracket
    SCREW, (.375-16 x 1.50), Water Pump Bracket
  • 26
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 27
    16-8M0022145 STUD, (.375-16/.375-24 x 1.750), Water Pump Bracket to Engine
    STUD, (.375-16/.375-24 x 1.750), Water Pump Bracket to Engine
  • 28
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 29
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 30
    16-8M0022145 STUD, (.375-16/.375-24 x 1.750), Water Pump Bracket to Engine
    STUD, (.375-16/.375-24 x 1.750), Water Pump Bracket to Engine
  • 31
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 32
    12-34714 WASHER
    WASHER
  • 33
    11-46335 NUT
    NUT
  • 34
    57-74271Q BELT, Water Pump
    BELT, Water Pump
  • 35
    22-328022 PLUG, Pipe (.125-27) (For Water Pump Body)
    PLUG, Pipe (.125-27) (For Water Pump Body)
  • 36
    32-78108 HOSE, Molded, Water Pump to Heat Exchanger
    HOSE, Molded, Water Pump to Heat Exchanger
  • 37
    54-815504220 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
