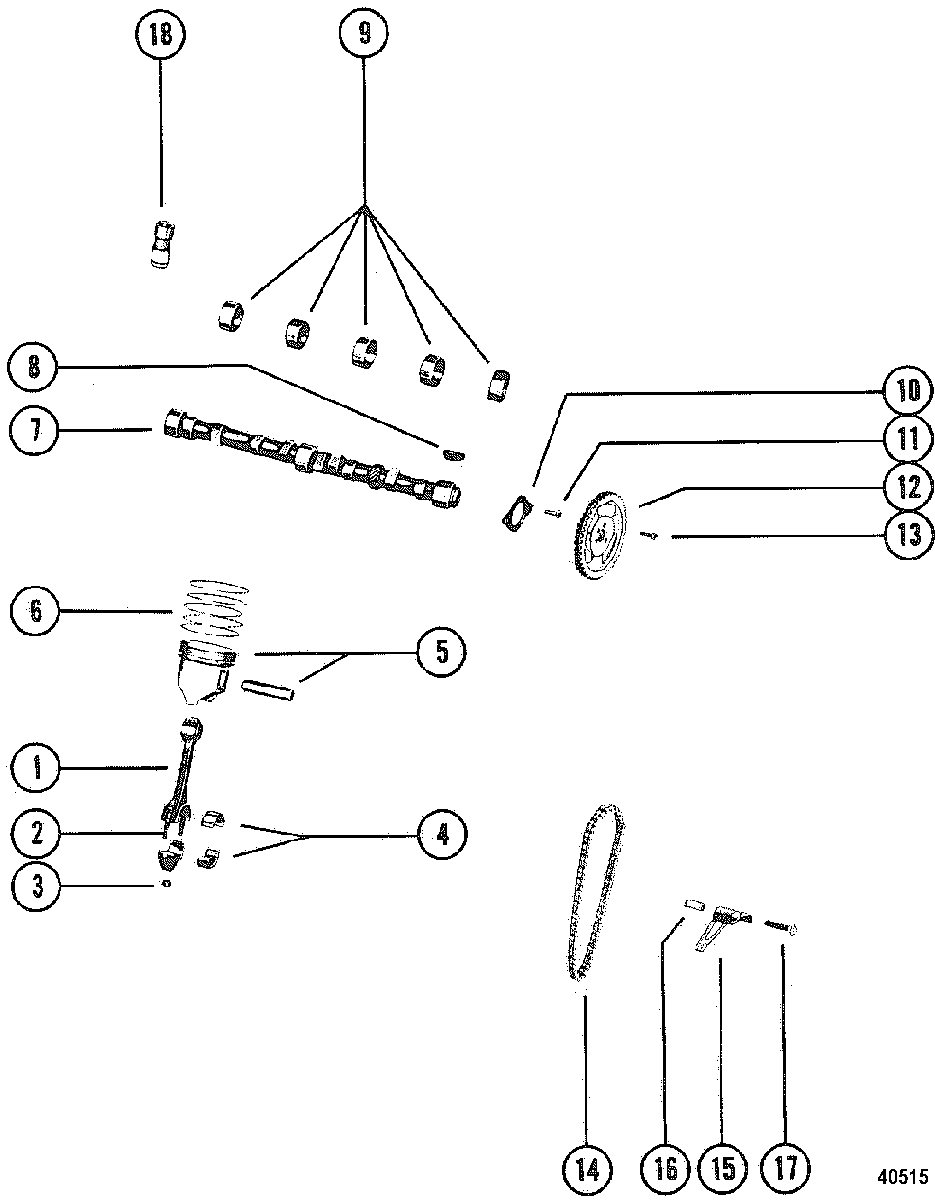

Camshaft & Piston для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    628-6100T2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    10-75444 BOLT, Connecting Rod Cap Attaching
    BOLT, Connecting Rod Cap Attaching
  • 3
    27-64789 NUT, Connecting Rod Cap Attaching
    NUT, Connecting Rod Cap Attaching
  • 4
    23-853853002 BEARING ASSEMBLY, Connecting Rod (Standard)
    BEARING ASSEMBLY, Connecting Rod (Standard)
  • 4
    68704A2 BEARING ASSEMBLY, Connecting Rod (.002 U.S.)
    BEARING ASSEMBLY, Connecting Rod (.002 U.S.)
  • 4
    23-853855001 BEARING ASSEMBLY, Connecting Rod (.010 U.S.)
    BEARING ASSEMBLY, Connecting Rod (.010 U.S.)
  • 4
    23-853856001 BEARING ASSEMBLY, Connecting Rod (.020 U.S.)
    BEARING ASSEMBLY, Connecting Rod (.020 U.S.)
  • 5
    759-806661A7 PISTON ASSEMBLY (Standard)
    PISTON ASSEMBLY (Standard)
  • 5
    759-806661A4 PISTON ASSEMBLY (.005 O.S.)
    Use Standard Rings
    PISTON ASSEMBLY (.005 O.S.)
    Use Standard Rings
  • 5
    759-806661A8 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 6
    39-74381A1 RING, Piston (Standard)
    RING, Piston (Standard)
  • 6
    39-75423 RING, Piston (.030 O.S.)
    RING, Piston (.030 O.S.)
  • 7
    400-8M0122295 CAMSHAFT (L.H. ROTATION)
    CAMSHAFT (L.H. ROTATION)
  • 7
    462-7567 CAMSHAFT (R.H. ROTATION)
    CAMSHAFT (R.H. ROTATION)
  • 8
    28-86466 KEY, Camshaft
    KEY, Camshaft
  • 9
    23-67484T BEARING, Camshaft
    See Note 1
    BEARING, Camshaft
    See Note 1
  • 10
    67492 THRUST PLATE, Camshaft
    THRUST PLATE, Camshaft
  • 11
    10-49668 SCREW, (.250-20 x .750), Thrust Plate Attaching
    SCREW, (.250-20 x .750), Thrust Plate Attaching
  • 12
    864611 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 13
    10-70084 SCREW, (.250-20 x 1.00), Sprocket to Camshaft
    SCREW, (.250-20 x 1.00), Sprocket to Camshaft
  • 14
    68717A1 CHAIN, Timing
    CHAIN, Timing
  • 15
    75202 TENSIONER, Chain
    TENSIONER, Chain
  • 16
    23-75087 BUSHING, Chain Tensioner
    (L.H. ROTATION)
    BUSHING, Chain Tensioner
    (L.H. ROTATION)
  • 16
    23-88431 BUSHING, Chain Tensioner
    (R.H. ROTATION)
    BUSHING, Chain Tensioner
    (R.H. ROTATION)
  • 17
    10-881892 SCREW, (.312-18 x 1.750), Tensioner Attaching
    (L.H. ROTATION)
    SCREW, (.312-18 x 1.750), Tensioner Attaching
    (L.H. ROTATION)
  • 17
    10-22441 SCREW, (1.75 In.), Tensioner Attaching
    (R.H. ROTATION)
    SCREW, (1.75 In.), Tensioner Attaching
    (R.H. ROTATION)
  • 18
    56153 TAPPET
    TAPPET
