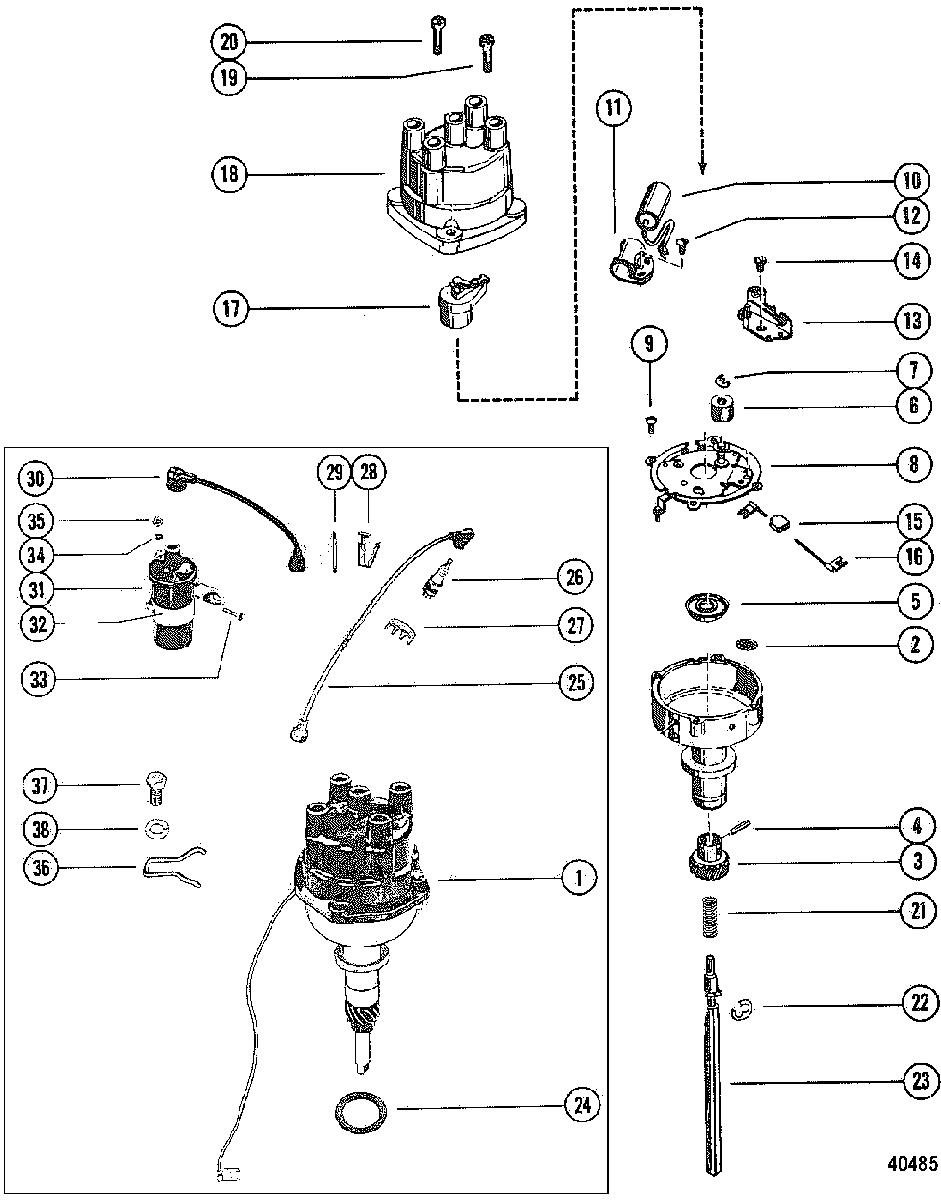

Distributor & Coil для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036
-
№АртикулНазвание
-
119514A2 DISTRIBUTOR ASSEMBLY, Complete (L.H. ROTATION)DISTRIBUTOR ASSEMBLY, Complete (L.H. ROTATION)
-
185374A4 DISTRIBUTOR ASSEMBLY, Complete (R.H. ROTATION)DISTRIBUTOR ASSEMBLY, Complete (R.H. ROTATION)
-
262426 SCREW, Vent - Distributor HousingSCREW, Vent - Distributor Housing
-
343-735791 GEAR, Drive - Main Shaft (L.H. ROTATION)GEAR, Drive - Main Shaft (L.H. ROTATION)
-
343-88189 GEAR, Drive - Main Shaft (R.H. ROTATION)GEAR, Drive - Main Shaft (R.H. ROTATION)
-
417-29077 PIN, Roll, Distributor GearPIN, Roll, Distributor Gear
-
526-58219 SEAL, HousingSEAL, Housing
-
633653 FELT, Breaker Cam LubricatorFELT, Breaker Cam Lubricator
-
772654 RETAINERRETAINER
-
833665 PLATE, Mounting - Breaker Assembly & CondenserPLATE, Mounting - Breaker Assembly & Condenser
-
910-20650 SCREW, Mounting Plate to Primay HousingSCREW, Mounting Plate to Primay Housing
-
-12-62425 WASHER, Breaker Plate Support ScrewWASHER, Breaker Plate Support Screw
-
108M6001218 CONDENSERCONDENSER
-
1148024 BRACKETBRACKET
-
1210-48021 SCREW, Condenser Bracket AttachingSCREW, Condenser Bracket Attaching
-
1334235T BREAKER ASSEMBLY, DistributorBREAKER ASSEMBLY, Distributor
-
1410-33650 SCREWSCREW
-
1525-33666 GROMMET, Mounting Plate - Primary WireGROMMET, Mounting Plate - Primary Wire
-
1633658 LEADLEAD
-
178M6001251 ROTOR, DistributorROTOR, Distributor
-
18393-9459Q1 CAP, DistributorCAP, Distributor
-
1910-33660 SCREW, (8-32), Distributor Cap to Primary HousingSCREW, (8-32), Distributor Cap to Primary Housing
-
2010-33663 SCREW, (10-32), Distributor Cap to Primary HousingSCREW, (10-32), Distributor Cap to Primary Housing
-
2124-73642 SPRING, Distributor ShaftSPRING, Distributor Shaft
-
2253-73499 LOCK RING, Distributor ShaftLOCK RING, Distributor Shaft
-
2373501 DRIVESHAFT, Distributor ShaftDRIVESHAFT, Distributor Shaft
-
2427-344863 GASKET, DistributorGASKET, Distributor
-
2584-815297A39 LEAD ASSEMBLY, High TensionLEAD ASSEMBLY, High Tension
-
2633-97389 SPARK PLUG (CHAMPION#RBL-9Y)SPARK PLUG (CHAMPION#RBL-9Y)
-
2754676 RETAINER, Two Wire, High Tension LeadsRETAINER, Two Wire, High Tension Leads
-
2854-72821 RETAINER, High Tension LeadsRETAINER, High Tension Leads
-
2916-73583 STUD, High Tension Lead Clamp AttachingSTUD, High Tension Lead Clamp Attaching
-
3084-815297A45 WIRE, Distributor to CoilWIRE, Distributor to Coil
-
31898253T24 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
3265970T1 BRACKET, Ignition Coil MountingBRACKET, Ignition Coil Mounting
-
3310-66652 SCREW, Mounting Bracket to CoilSCREW, Mounting Bracket to Coil
-
3412-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, Ignition Coil TerminalWASHER, (.192 x .375 x .0312) Stainless Steel, Ignition Coil Terminal
-
3413-26996 LOCKWASHER, (#10) Stainless Steel, Ignition Coil TerminalLOCKWASHER, (#10) Stainless Steel, Ignition Coil Terminal
-
3511-68219 NUT, (#10-32) Stainless Steel, Ignition Coil TerminalNUT, (#10-32) Stainless Steel, Ignition Coil Terminal
-
3667511 CLAMP, Distributor
L.H. ROTATIONCLAMP, Distributor
L.H. ROTATION -
3690500 CLAMP, Distributor
R.H. ROTATIONCLAMP, Distributor
R.H. ROTATION -
3710-35386 SCREW, (.312-18 x 1.00), Distributor to Block
L.H. ROTATIONSCREW, (.312-18 x 1.00), Distributor to Block
L.H. ROTATION -
3710-53576 SCREW, (.312-18 x 1.125), Distributor to Block
R.H. ROTATIONSCREW, (.312-18 x 1.125), Distributor to Block
R.H. ROTATION -
3813-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
