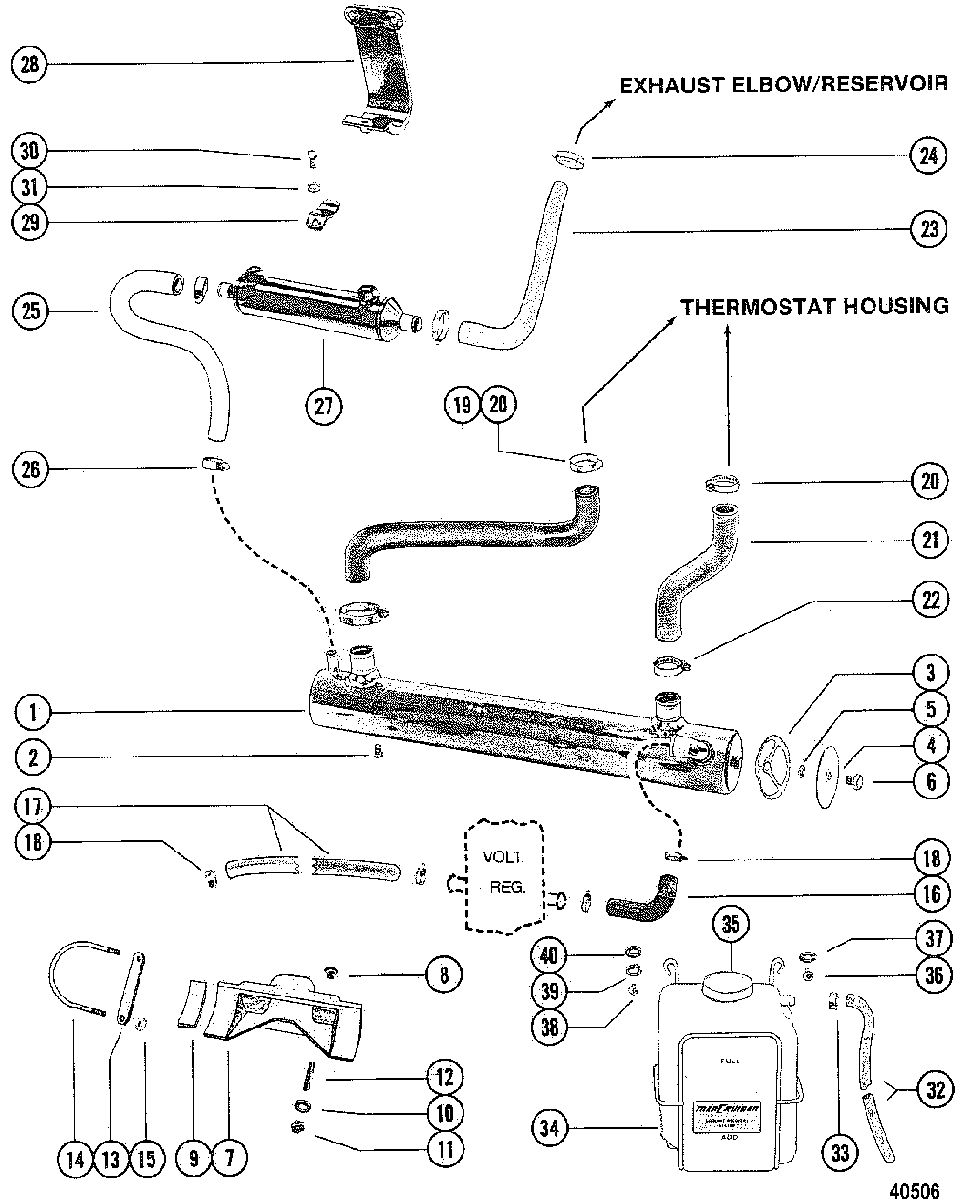

Heat Exchanger для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    77319A1 HEAT EXCHANGER
    (MCM)
    HEAT EXCHANGER
    (MCM)
  • 1
    78165T HEAT EXCHANGER
    (INBOARD)
    HEAT EXCHANGER
    (INBOARD)
  • 2
    22-328022 PLUG, Pipe (.125-27), Heat Exchanger
    PLUG, Pipe (.125-27), Heat Exchanger
  • 3
    27-75450 GASKET, End Cap - Heat Exchanger
    GASKET, End Cap - Heat Exchanger
  • 4
    87924 PLATE, End Cap - Heat Exchanger
    PLATE, End Cap - Heat Exchanger
  • 5
    12-75451 WASHER, End Cap - Heat Exchanger Attaching
    WASHER, End Cap - Heat Exchanger Attaching
  • 6
    10-87192 SCREW, End Cap - Heat Exchanger Attaching
    SCREW, End Cap - Heat Exchanger Attaching
  • 7
    98618A1 BRACKET ASSEMBLY, Heat Exchanger Mounting
    BRACKET ASSEMBLY, Heat Exchanger Mounting
  • 8
    41024 MOUNT, Vibration
    MOUNT, Vibration
  • 9
    77223 PAD, Mounting Bracket
    PAD, Mounting Bracket
  • 10
    12-27025 WASHER, Mount Attaching Stud
    WASHER, Mount Attaching Stud
  • 11
    11-49253 NUT, Mount Attaching Stud
    NUT, Mount Attaching Stud
  • 12
    16-31632 STUD, Bracket Attaching
    STUD, Bracket Attaching
  • 13
    77225 STRAP, Bracket to Heat Exchanger
    STRAP, Bracket to Heat Exchanger
  • 14
    10-77403 UBOLT, Bracket to Heat Exchanger
    UBOLT, Bracket to Heat Exchanger
  • 15
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 16
    32-88132 HOSE
    For Correct Hose, See MerCruiser Service Bulletin 83-11
    HOSE
    For Correct Hose, See MerCruiser Service Bulletin 83-11
  • 17
    32-47642 HOSE, (49.00 Inches Bulk)
    For Correct Hose, See MerCruiser Service Bulletin 83-11
    HOSE, (49.00 Inches Bulk)
    For Correct Hose, See MerCruiser Service Bulletin 83-11
  • 17
    32-47642 HOSE, (49.00 Inches Bulk)
    For Correct Hose, See MerCruiser Service Bulletin 83-11
    HOSE, (49.00 Inches Bulk)
    For Correct Hose, See MerCruiser Service Bulletin 83-11
  • 18
    54-815504310 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 19
    32-77245 HOSE, Thermostat Housing to Heat Exchanger
    HOSE, Thermostat Housing to Heat Exchanger
  • 20
    54-815504220 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 21
    32-77331 HOSE, Thermostat Housing to Heat Exchanger
    (MCM)
    HOSE, Thermostat Housing to Heat Exchanger
    (MCM)
  • 21
    32-78109 HOSE, Thermostat Housing to Heat Exchanger
    (INBOARD)
    HOSE, Thermostat Housing to Heat Exchanger
    (INBOARD)
  • 22
    54-815504220 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 23
    32-77332 HOSE, Heat Exchanger to Exhaust Elbow
    (MCM)
    HOSE, Heat Exchanger to Exhaust Elbow
    (MCM)
  • 23
    32-78212 HOSE, Heat Exchanger to Tranmission Cooler
    (INBOARD)
    HOSE, Heat Exchanger to Tranmission Cooler
    (INBOARD)
  • 24
    54-815504220 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 25
    32-78189 HOSE, Transmission Cooler to Exhaust Elbow
    (INBOARD)
    HOSE, Transmission Cooler to Exhaust Elbow
    (INBOARD)
  • 26
    54-815504220 CLAMP, Hose Attaching
    (INBOARD)
    CLAMP, Hose Attaching
    (INBOARD)
  • 27
    63832A1 COOLER, Tranmission Oil
    (INBOARD)
    COOLER, Tranmission Oil
    (INBOARD)
  • 28
    76210 BRACKET, Oil Cooler
    (INBOARD)
    BRACKET, Oil Cooler
    (INBOARD)
  • 29
    54-76209 CLAMP, Oil Cooler
    (INBOARD)
    CLAMP, Oil Cooler
    (INBOARD)
  • 30
    10-65746 SCREW, (.75 In.), Clamp to Bracket
    (INBOARD)
    SCREW, (.75 In.), Clamp to Bracket
    (INBOARD)
  • 31
    13-26992 LOCKWASHER, (.250) Stainless Steel, Clamp Screw
    (INBOARD)
    LOCKWASHER, (.250) Stainless Steel, Clamp Screw
    (INBOARD)
  • 32
    32-774572 HOSE, (48.00 Inches Bulk), Coolant Recovery Bottle
    HOSE, (48.00 Inches Bulk), Coolant Recovery Bottle
  • 33
    54-815504104 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 34
    91987A1 BOTTLE, Coolant Recovery
    BOTTLE, Coolant Recovery
  • 35
    36-91989A1 CAP, Coolant Recovery Bottle
    CAP, Coolant Recovery Bottle
  • 36
    10-20359 SCREW, (.375-16 x 1.00), Bracket to Head
    Port
    SCREW, (.375-16 x 1.00), Bracket to Head
    Port
  • 37
    13-35048 LOCKWASHER, (.375), Bracket Attaching Screw
    LOCKWASHER, (.375), Bracket Attaching Screw
  • 38
    10-47461 SCREW, (.437-14 x 1.00), Bracket to Head
    Starboard
    SCREW, (.437-14 x 1.00), Bracket to Head
    Starboard
  • 39
    13-32993 LOCKWASHER, Bracket Attaching Screw
    LOCKWASHER, Bracket Attaching Screw
  • 40
    12-27339 WASHER, Bracket Attaching Screw
    WASHER, Bracket Attaching Screw
