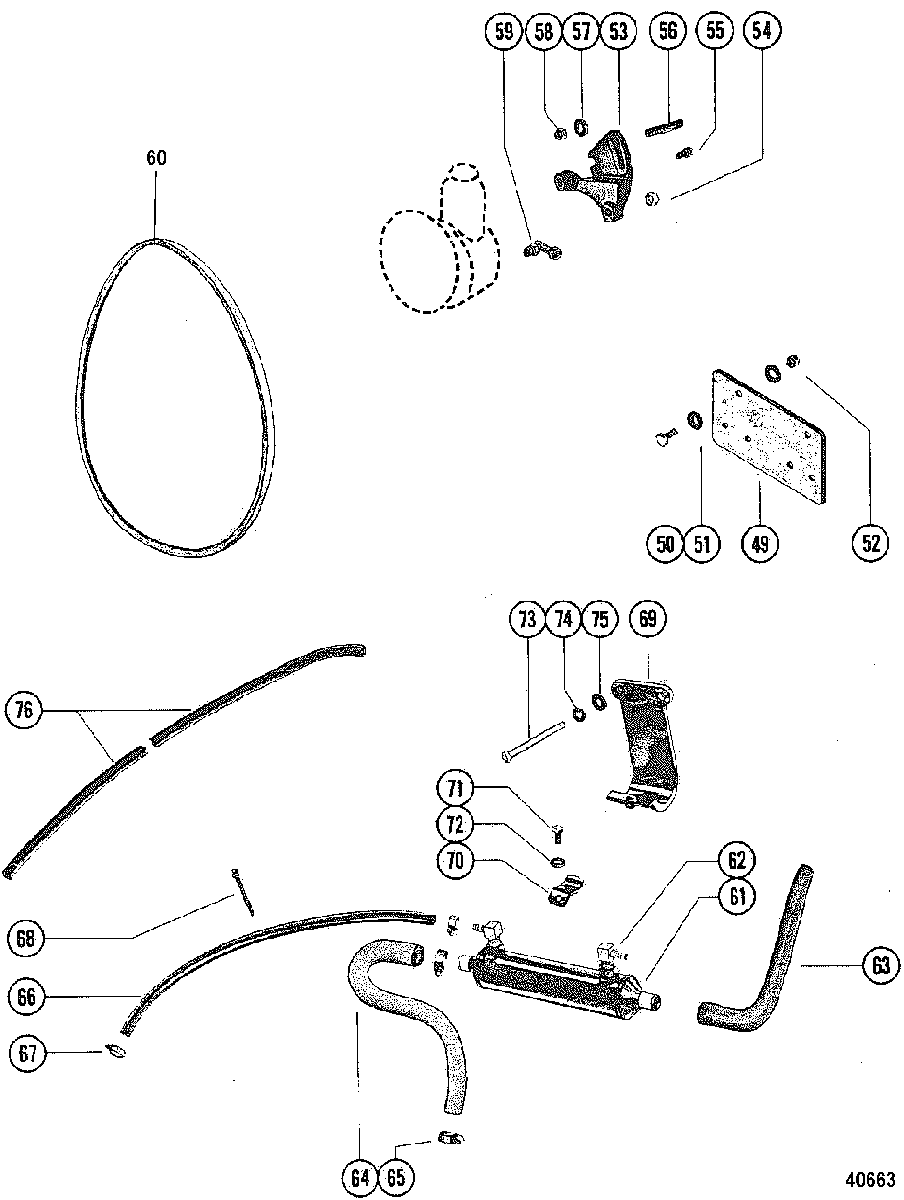

Power Steering Kit(Page 2 of 2) для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036
-
№АртикулНазвание
-
-76742A1 POWER STEERING KIT (MerCruiser 470)POWER STEERING KIT (MerCruiser 470)
-
-76742A4 POWER STEERING KIT (MerCruiser 470)POWER STEERING KIT (MerCruiser 470)
-
-76742A4 POWER STEERING KIT (MerCruiser 470)POWER STEERING KIT (MerCruiser 470)
-
4994893 PLATE, Extension, Power Trim PumpPLATE, Extension, Power Trim Pump
-
5010-26065 SCREW, (.312-24 x 1.00), Plate to BracketSCREW, (.312-24 x 1.00), Plate to Bracket
-
5112-26825 WASHER, (.328 x .750 x .06), Plate ScrewWASHER, (.328 x .750 x .06), Plate Screw
-
5211-826709111 NUT, (.312-24), Plate ScrewNUT, (.312-24), Plate Screw
-
5374401 BRACKET, Hydraulic Pump
(76742A 1 Only)BRACKET, Hydraulic Pump
(76742A 1 Only) -
5390510A1 BRACKET, Hydraulic Pump
(76742A 2 & 76742A 3)BRACKET, Hydraulic Pump
(76742A 2 & 76742A 3) -
5411-25269 NUT, (.375-24), Hydraulic Pump StudNUT, (.375-24), Hydraulic Pump Stud
-
5510-76769 SCREW, (.375-16 x .880), Allen, Bracket to Hydraulic PumpSCREW, (.375-16 x .880), Allen, Bracket to Hydraulic Pump
-
5616-56826 STUD, (1.5 In.), Bracket to Cylinder Head
(76742A 1 Only)STUD, (1.5 In.), Bracket to Cylinder Head
(76742A 1 Only) -
5616-54176 STUD, (1 5/8), Bracket to Cylinder Head
(76742A 2 & 76742A 3)STUD, (1 5/8), Bracket to Cylinder Head
(76742A 2 & 76742A 3) -
5712-55149 WASHER, BRACKET STUDWASHER, BRACKET STUD
-
5811-25269 NUT, (.375-24), Bracket StudNUT, (.375-24), Bracket Stud
-
5976252 SWIVEL, Hydraulic Pump
(76742A 1)SWIVEL, Hydraulic Pump
(76742A 1) -
6057-76269Q V BELTV BELT
-
6149535 COOLER, OilCOOLER, Oil
-
6222-37760 ELBOW, Oil CoolerELBOW, Oil Cooler
-
6332-76206 HOSE, Molded, Oil Cooler to TransomHOSE, Molded, Oil Cooler to Transom
-
6432-76205 HOSE, Molded, Oil Cooler to Heat Exchanger
(76742A 1 Only)HOSE, Molded, Oil Cooler to Heat Exchanger
(76742A 1 Only) -
6432-77475 HOSE, Molded, Oil Cooler to Heat Exchanger
(76742A 2 & 76742A 3)HOSE, Molded, Oil Cooler to Heat Exchanger
(76742A 2 & 76742A 3) -
6554-815504412 CLAMP, Molded HosesCLAMP, Molded Hoses
-
6632-8M0062341 HOSE, Oil Cooler to Water Pump (21 Inches)HOSE, Oil Cooler to Water Pump (21 Inches)
-
6754-815504104 CLAMP, Hose AttachingCLAMP, Hose Attaching
-
6877054 TIE STRAP, (14.50 Inches), Hose AttachingTIE STRAP, (14.50 Inches), Hose Attaching
-
6976210 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
7054-76209 CLAMP, Oil CoolerCLAMP, Oil Cooler
-
7110-65746 SCREW, (.75 In.), Oil Cooler Clamp to BracketSCREW, (.75 In.), Oil Cooler Clamp to Bracket
-
7213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
7310-76770 SCREW, (5.75), Bracket to Exhaust Manifold
(76742A 1 & 76742A 2)SCREW, (5.75), Bracket to Exhaust Manifold
(76742A 1 & 76742A 2) -
7310-85484 SCREW, Bracket to Exhaust Manifold
(76742A 3)SCREW, Bracket to Exhaust Manifold
(76742A 3) -
7413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
7512-20553 WASHERWASHER
-
7632-774572 HOSE, (48.00 Inches Bulk), Relocating Water ReservoirHOSE, (48.00 Inches Bulk), Relocating Water Reservoir
