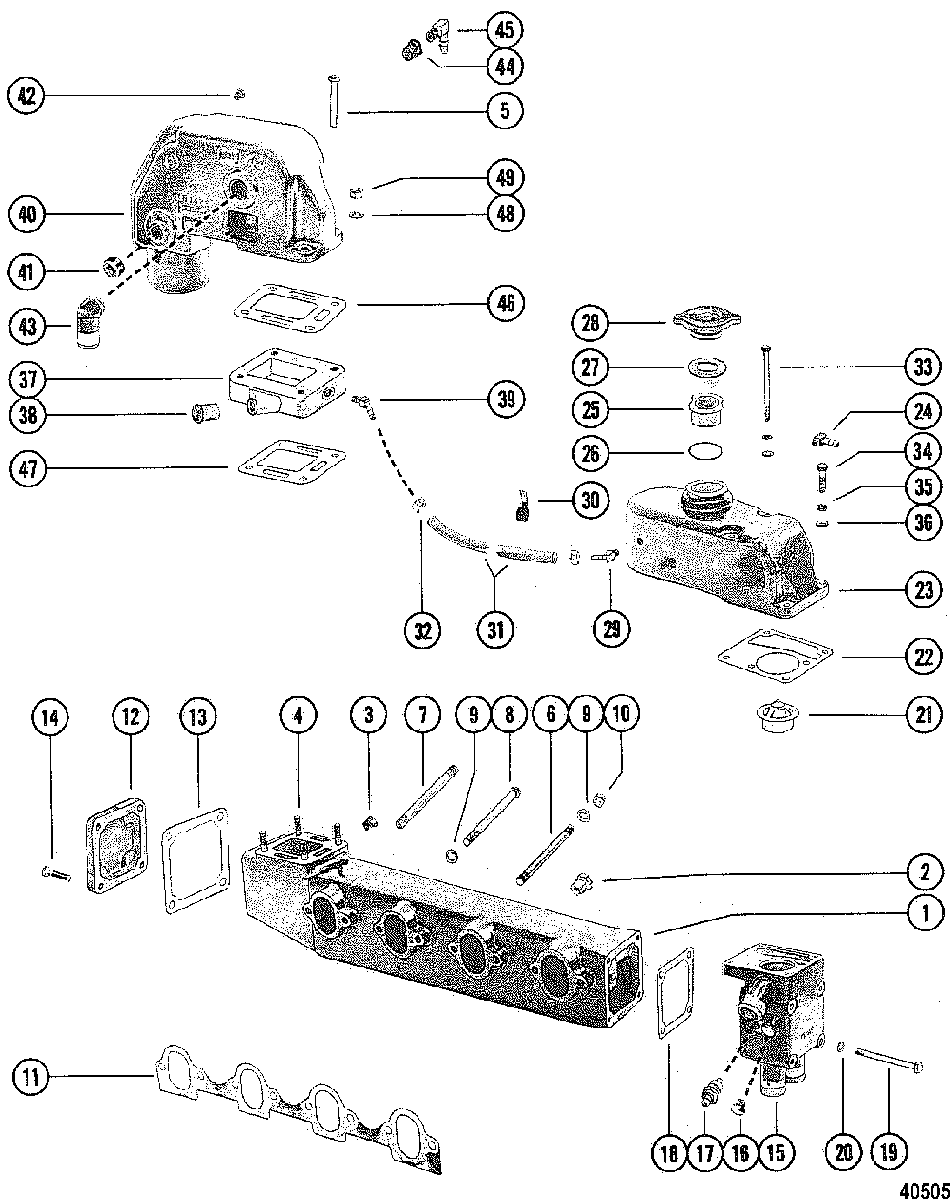

Exhaust Manifold and Elbow(INBOARD) для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036

  • №
    Артикул
    Название
  • 1
    71527A17 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-416223 PLUG, (3/4-14), Core
    PLUG, (3/4-14), Core
  • 3
    22-36382 FITTING, (.250-18 x .62) Brass, Drain
    FITTING, (.250-18 x .62) Brass, Drain
  • 4
    16-64282 STUD, (4 In.), Manifold to Elbow
    STUD, (4 In.), Manifold to Elbow
  • 5
    10-35785 SCREW, (.375-16 x 3.250), Manifold to Elbow
    SCREW, (.375-16 x 3.250), Manifold to Elbow
  • 6
    16-71494 STUD, (6 In.), Exhaust Manifold to Head
    STUD, (6 In.), Exhaust Manifold to Head
  • 7
    16-76225 STUD, (6.75), Exhaust Manifold to Head
    STUD, (6.75), Exhaust Manifold to Head
  • 8
    10-36355 SCREW, (5.25 In.), Exhaust Manifold to Head
    SCREW, (5.25 In.), Exhaust Manifold to Head
  • 8
    10-76770 SCREW, (5.75), Exhaust Manifold to Head
    SCREW, (5.75), Exhaust Manifold to Head
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 11
    27-68715 GASKET, Exhaust Manifold to Head
    GASKET, Exhaust Manifold to Head
  • 12
    73813A1 END CAP ASSEMBLY, Rear
    END CAP ASSEMBLY, Rear
  • 13
    27-807218 GASKET, End Cap
    GASKET, End Cap
  • 14
    10-25299 SCREW, (.312-18 x .75), End Cap to Exhaust Manifold
    SCREW, (.312-18 x .75), End Cap to Exhaust Manifold
  • 15
    41801T HOUSING, Thermostat
    HOUSING, Thermostat
  • 16
    22-32803 PLUG, Pipe (.375-18) Brass, Thermostat Housing
    PLUG, Pipe (.375-18) Brass, Thermostat Housing
  • 17
    15995 SENDER, Water Temperature
    SENDER, Water Temperature
  • 18
    27-480431 GASKET, Thermostat Housing to Exhaust Manifold
    GASKET, Thermostat Housing to Exhaust Manifold
  • 19
    10-74822 SCREW, (.312-18 x 3.500), Thermostat Housing to Exhaust Manifold
    SCREW, (.312-18 x 3.500), Thermostat Housing to Exhaust Manifold
  • 20
    12-36533 WASHER, (.328 x .562 x .0312) Copper
    WASHER, (.328 x .562 x .0312) Copper
  • 21
    76270T THERMOSTAT
    THERMOSTAT
  • 22
    27-74830 GASKET, Thermostat Housing to Reservoir
    GASKET, Thermostat Housing to Reservoir
  • 23
    78040A2 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 24
    22-74033 ELBOW, Overflow
    ELBOW, Overflow
  • 25
    22-13234A1 BASE, Filler Hole Cap
    BASE, Filler Hole Cap
  • 26
    25-45257 O-RING, (1.489 x .070), Filler Base
    O-RING, (1.489 x .070), Filler Base
  • 27
    27-71614 GASKET, Filler Hole Cap
    GASKET, Filler Hole Cap
  • 28
    36-55143Q CAP, Pressure, Filler Hole
    CAP, Pressure, Filler Hole
  • 29
    22-76170 ELBOW, Reservoir By-pass
    ELBOW, Reservoir By-pass
  • 30
    54-642351 J CLIP, Hose to Valve Cover
    J CLIP, Hose to Valve Cover
  • 31
    32-92715 HOSE, By-pass - Reservoir to Distribution Housing
    HOSE, By-pass - Reservoir to Distribution Housing
  • 32
    54-75826 CLAMP, Hose Attaching
    CLAMP, Hose Attaching
  • 33
    10-57841 SCREW, (.312-18 x 2.750), Reservoir to Thermostat Housing
    SCREW, (.312-18 x 2.750), Reservoir to Thermostat Housing
  • 34
    10-74824 SCREW, (1.25), Reservoir to Thermostat Housing
    SCREW, (1.25), Reservoir to Thermostat Housing
  • 35
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 36
    12-814806 WASHER
    WASHER
  • 37
    77936A1 HOUSING ASSEMBLY, Water Distribution
    HOUSING ASSEMBLY, Water Distribution
  • 38
    23-47511 SLEEVE, Water Distribution Block
    SLEEVE, Water Distribution Block
  • 39
    22-76170 ELBOW, Water Distribution Block
    ELBOW, Water Distribution Block
  • 40
    76771A2 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 41
    22-416223 PLUG, (3/4-14), Core
    PLUG, (3/4-14), Core
  • 42
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 43
    22-36305T ELBOW, (90 Degrees), Heat Exchanger Hose
    ELBOW, (90 Degrees), Heat Exchanger Hose
  • 44
    22-78173 BUSHING, Hose Elbow
    BUSHING, Hose Elbow
  • 45
    22-32715 ELBOW, Exhaust Elbow
    ELBOW, Exhaust Elbow
  • 46
    27-92720 GASKET, Elbow to Exhaust Manifold (Upper)
    GASKET, Elbow to Exhaust Manifold (Upper)
  • 47
    27-997772 GASKET, Elbow to Exhaust Manifold (Lower)
    GASKET, Elbow to Exhaust Manifold (Lower)
  • 48
    13-35048 LOCKWASHER, (3/8), Elbow to Manifold Attaching
    LOCKWASHER, (3/8), Elbow to Manifold Attaching
  • 49
    11-49838 NUT
    NUT
